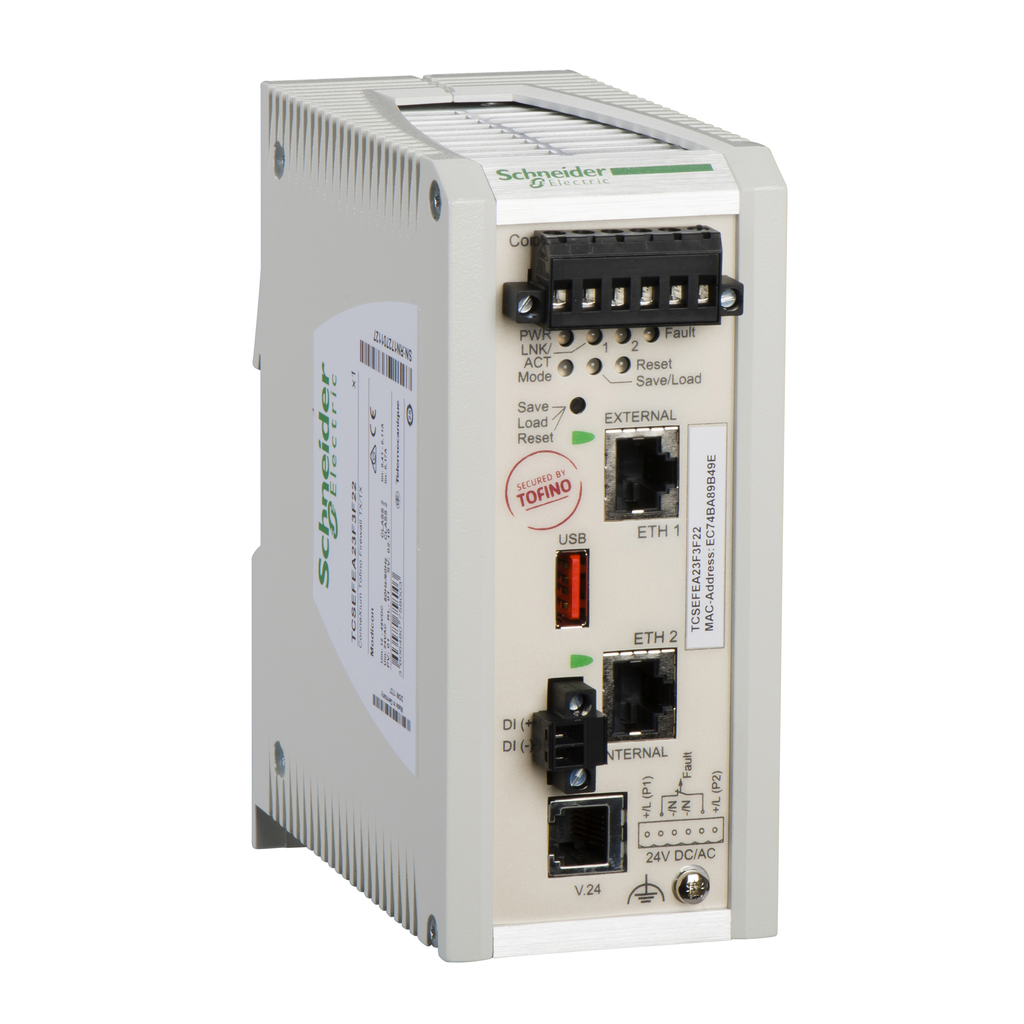

firewall, Modicon Networking, Industial Firewall, 2 ports for copper

• Range Of Product: ConneXium
• Port Ethernet: 10/100BASE-TX - 2 copper cable
• Product Or Component Type: Ethernet TCP/IP firewall
• Communication Port Protocol: Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || SFTP || SCP || LLDP || RS232
• User Interface: built-in firewall
• Encryption Protocol: MAC addresses filtering
• Cybersecurity: Syslog protocol support || IPSec
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Cable Distance Between Devices: 100 m copper cable
• [Us] Rated Supply Voltage: 12...48 V
• Height: 145 mm
• Alarm Function: power supply fault || data link status || switch fault || temperature threshold || external memory removed
• Integrated Connection Type: shielded RJ45 copper cable
• Transmission Support Medium: twisted shielded pairs cable CAT 5E copper cable
• Mounting Support: 35 mm symmetrical DIN rail
• Power Consumption In W: 6.9 W
• Communication Service: port monitoring
• Marking: CE || UL || RCM
• Alarm Output: 1 voltfree contact 1 A
• Redundancy: redundant network coupling || router redundancy
• Net Weight: 0.61 kg
• Electrical Connection: removable connector 6 ways power supply
• Function Available: system information || report || IP Firewall list || configuration check || reachability test (ping) || alarms (Traps)
• Ethernet Service: multicast filtering || syslog
• Ethernet Cabling System: TF switches
• Supply Voltage Limits: 9.6-60 V DC SELV || 18-30 V AC SELV
• Local Signalling: for P1 P2 power supplies 2 LEDs (green) || for fault 1 LED (red) || for device status 1 dual colour LED (green/yellow) || for memory key status 1 dual colour LED (green/yellow) || for internal port status 1 dual colour LED (green/yellow) || for serial port status 1 dual colour LED (green/yellow)
• Diagnostics Run Time: signal contact || self test || MAC notification
• Width: 60 mm
• Depth: 125 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: -40-70 °C
• Standards: UL 508 || EN/IEC 61131 || EN/IEC 60950
• Product Certifications: CE || UL || RCM || DNV
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity: 10-95 % non-condensing
• Ip Degree Of Protection: IP20
