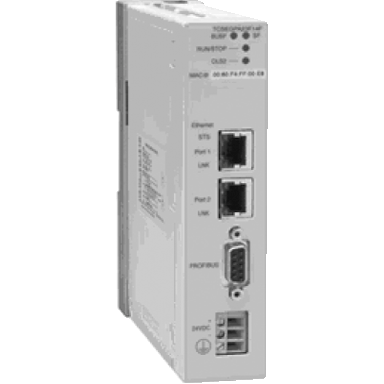

Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC

• Range Of Product: Profibus DP
• Product Or Component Type: Profibus DP V1 remote master
• Structure Type: industrial bus
• Communication Gateway: Ethernet Modbus TCP to Profibus DP V1 gateway
• Product Compatibility: M340 PLC || M580 PLC || Quantum PLC || Premium PLC
• Kit Composition: CD including the communication DTM || CD including the Master DTM for PRM configuration inside UNITY

Contractual warranty

• Warranty: 18 months

Complementary

• Mode Of Transmission: NRZ
• Transmission Support Medium: Profibus 2 twisted shielded pairs cable || Modbus TCP category 5 shielded twisted pair (STP)
• Number Of Inputs: 2
• Current Consumption: 200 mA 24 V DC external
• Transmission Rate: 12 Mbit/s, 100 m Profibus without repeater || 12 Mbit/s, 400 m Profibus with 3 repeaters || 9.6 kbit/s, 1200 m Profibus without repeater || 9.6 kbit/s, 4800 m Profibus with 3 repeaters || 10...100 Mbit/s, 100 m Modbus TCP without repeater
• Net Weight: 0.62 kg
• Communication Service: check slave configuration (on power up) class 1 master || acyclic DP V1 communication (R/W) class 1/2 master || manage monitoring request (Global CONTROL and Get Master Diag) class 2 master || no master/master dialogue class 2 master || Profibus FMS message handling not supported class 1 master || Profibus FMS message handling not supported class 2 master || read/write DP slave I/O data class 1 master || set slave parameters (on power up) class 1 master || transfer slave diagnostic data class 1 master || sync and freeze class 1 master
• Number Of Slave: 126
• Integrated Connection Type: 2 Ethernet TCP/IP - RJ45 Modbus TCP || Profibus DP - SUB-D 9 Profibus DP V1
• Physical Interface: RS485
• Method Of Access: master class 1 Profibus DP || master class 2 Profibus DP || slave Modbus TCP
• Module Format: standard
• Number Of Outputs: 2

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Ambient Air Temperature For Storage: -45-85 °C
• Relative Humidity: 10-95 % without condensation
• Operating Altitude: <= 6561.68 ft (2000 m)
