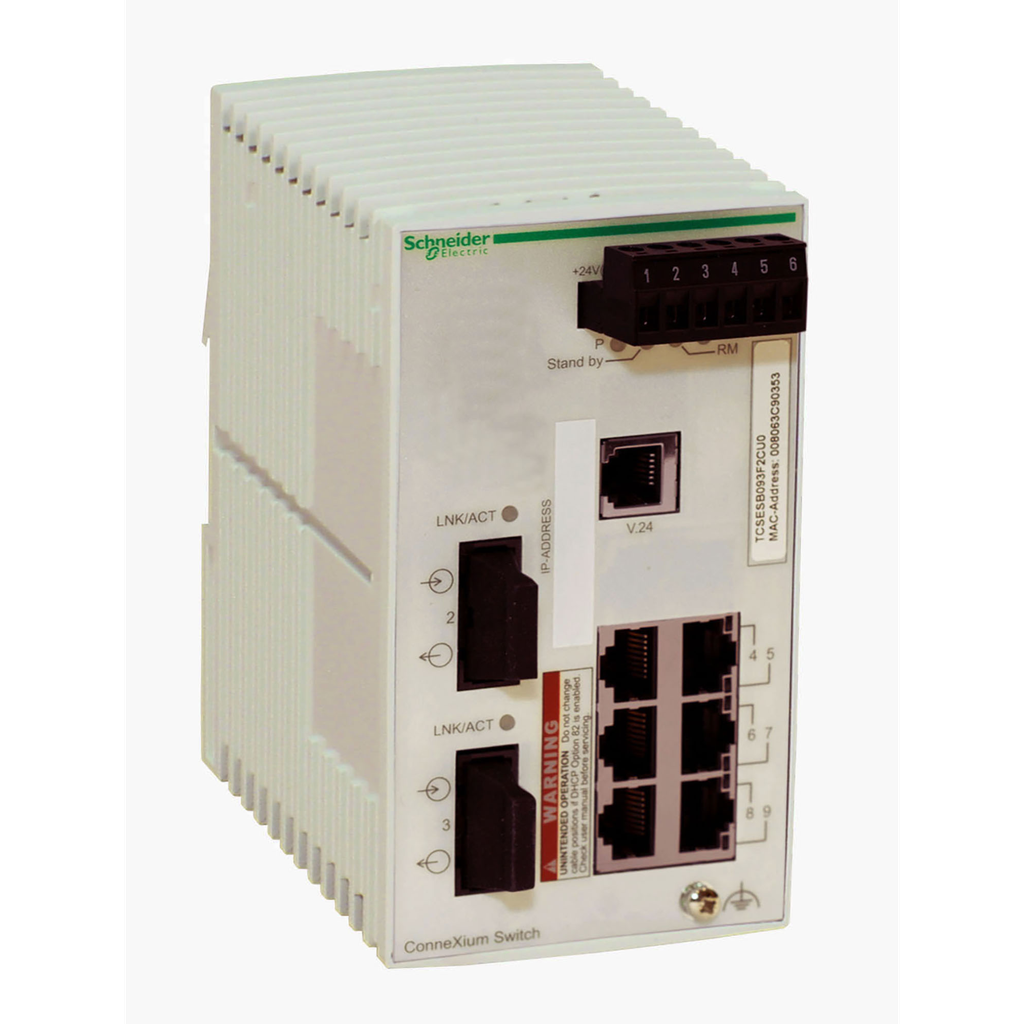

switch, Modicon Networking, basic managed switch, 6 ports for copper, 2 ports for fiber optic multimode

• Maximum Number Of Switches In Cascade: unlimited
• Range Of Product: ConneXium
• Port Ethernet: 10/100BASE-TX - 6 copper cable || 100BASE-FX - 2 fiber optic
• Product Or Component Type: Ethernet TCP/IP managed switch
• Communication Port Protocol: Ethernet TCP/IP || HTTP || HTTPS || SNMP || RS232 || LLDP || SNTP || MRP (Media Redundancy Protocol)
• Cybersecurity: role-based access control
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Cable Distance Between Devices: 100 m copper cable
• [Us] Rated Supply Voltage: 12...24 V
• Height: 131 mm
• Alarm Function: power supply fault || data link status || switch fault || redundancy ring fault || incorrect configuration || temperature threshold
• Integrated Connection Type: shielded RJ45 copper cable || duplex SC fiber optic
• Transmission Support Medium: twisted shielded pairs cable CAT 5E fiber optic || multimode optical fiber copper cable
• Mounting Support: 35 mm symmetrical DIN rail
• Power Consumption In W: 8 W
• Communication Service: TFTP || Quality of Service (QoS) || port monitoring || port mirroring
• Marking: CE || UL || RCM
• Alarm Output: 1 voltfree contact 1 A
• Redundancy: HiPER ring || RSTP
• Net Weight: 0.41 kg
• Electrical Connection: removable connector 6 ways power supply
• Attenuation: 0-11 dB 62.2/125 µm) || 0-8 dB 50/125 µm)
• Maximum Number Of Switches In A Ring: 50
• Function Available: system information
• Ethernet Service: configuration via web server || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG
• Ethernet Cabling System: TF switches
• Supply Voltage Limits: 9.6-32 V DC SELV
• Local Signalling: for P1 P2 power supplies 1 dual colour LED (green/yellow) || for fault 1 LED (red) || for ring manager 1 dual colour LED (green/yellow) || for stand-by 1 LED (green) || for channel diagnostic 1 dual colour LED (green/yellow) || Device status
• Optic Fiber Length: 4 km 62.5/125 µm || 5 km 50/125 µm
• Diagnostics Run Time: signal contact || self test
• Width: 74 mm
• Depth: 111 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP100304EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1003004EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Standards: UL 508 || EN/IEC 61131
• Product Certifications: CE || UL || RCM
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity: 10-95 % non-condensing
• Ip Degree Of Protection: IP20
