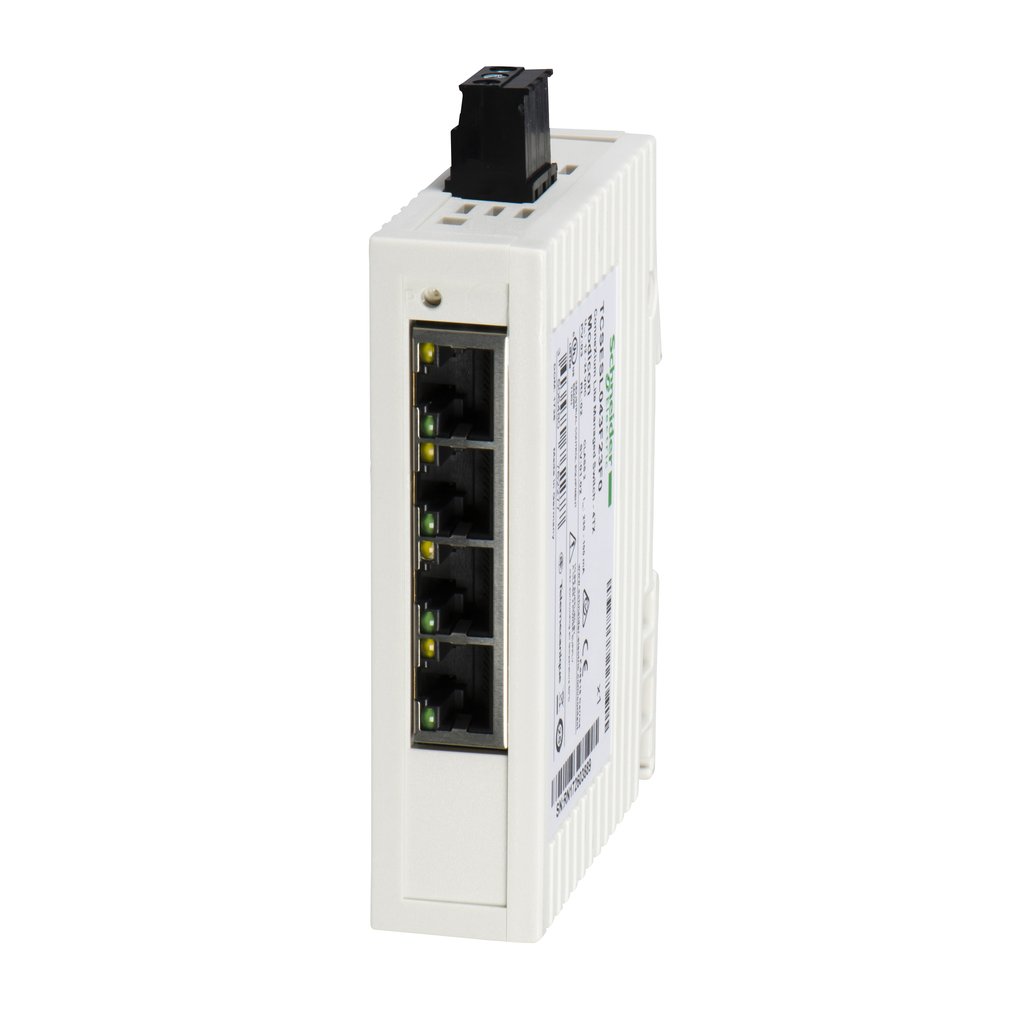

Product Description
- Maximum Number Of Switches In Cascade: unlimited
- Range Of Product: ConneXium
- Port Ethernet: 10/100BASE-TX - 4 copper cable
- Product Or Component Type: Ethernet TCP/IP managed switch
- Communication Port Protocol: Ethernet TCP/IP || HTTP || HTTPS || SNMP || LLDP
- Cybersecurity: enable/disable communication ports
- Concept: Transparent Ready
Contractual warranty
- Warranty: 18 months
Complementary
- Maximum Cable Distance Between Devices: 100 m copper cable
- [Us] Rated Supply Voltage: 12...24 V
- Height: 114 mm
- Integrated Connection Type: shielded RJ45 copper cable
- Transmission Support Medium: twisted shielded pairs cable CAT 5E copper cable
- Mounting Support: 35 mm symmetrical DIN rail
- Power Consumption In W: 2.35 W
- Communication Service: TFTP || port monitoring
- Marking: CE || cULus || RCM
- Redundancy: RSTP
- Net Weight: 0.103 kg
- Electrical Connection: removable connector 3 ways power supply
- Maximum Number Of Switches In A Ring: 50
- Ethernet Service: configuration via web server || multicast filtering || syslog || SNMP-Traps
- Ethernet Cabling System: TF switches
- Supply Voltage Limits: 9.6-32 V DC SELV
- Local Signalling: for power supply 1 LED (green) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 LED per channel (green)
- Diagnostics Run Time: log file
- Width: 25 mm
- Depth: 79 mm
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP100304EN
- Sustainable Offer Status: Green Premium product
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation: X
- Circularity Profile: ENVEOLI1003004EN
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Operation: 0-60 °C
- Standards: UL 61010
- Product Certifications: CE || UL || RCM
- Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Relative Humidity: 5-95 % non-condensing
- Ip Degree Of Protection: IP30
