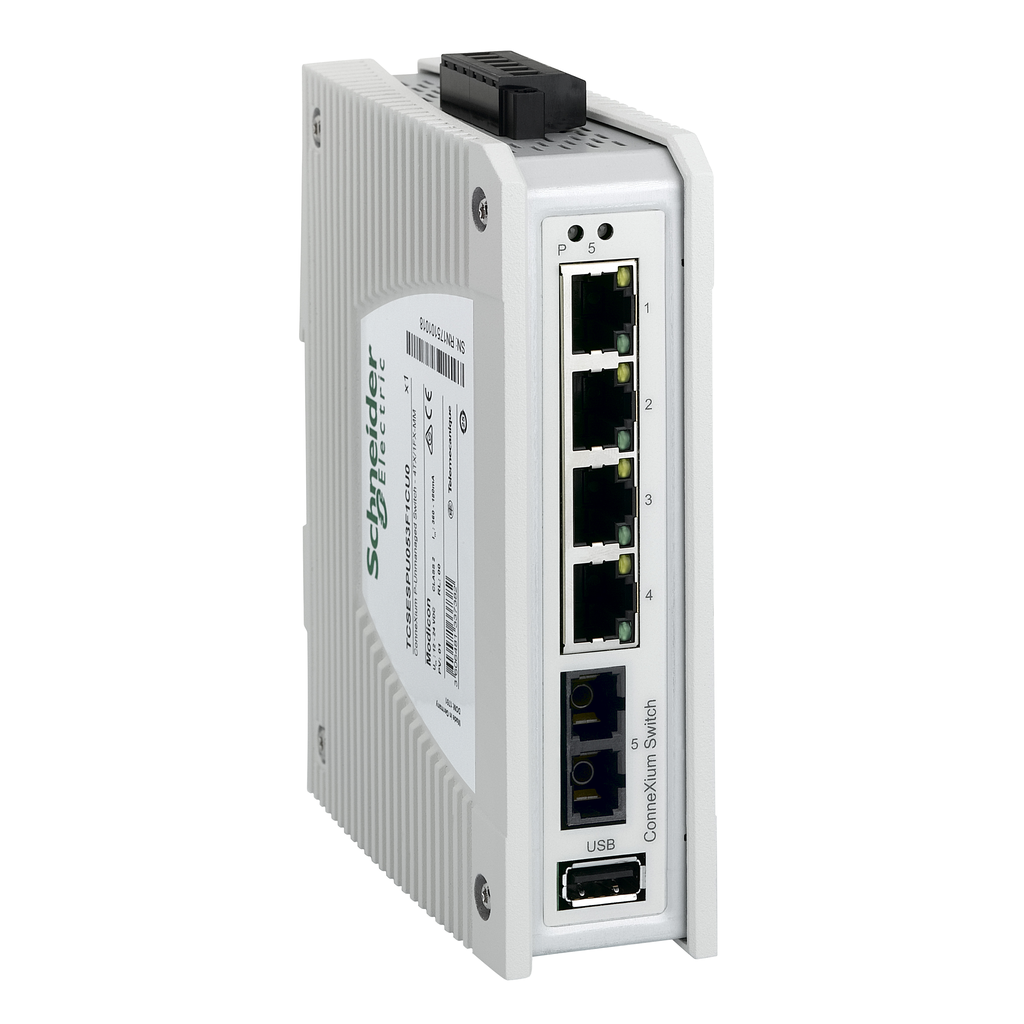

switch, Modicon Networking, premium unmanaged switch, 4 ports for copper, 1 port for fiber optic multimode

• Communication Port Protocol: Ethernet TCP/IP
• Maximum Number Of Switches In Cascade: unlimited
• Range Of Product: ConneXium
• Port Ethernet: 10/100BASE-TX - 4 copper cable || 100BASE-FX - 1 fiber optic
• Product Or Component Type: Ethernet TCP/IP unmanaged switch
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Cable Distance Between Devices: 100 m copper cable
• [Us] Rated Supply Voltage: 12...24 V
• Height: 135 mm
• Integrated Connection Type: shielded RJ45 copper cable || duplex SC fiber optic
• Ethernet Service: multicast filtering || data stream control
• Transmission Support Medium: twisted shielded pairs cable CAT 5E copper cable || multimode optical fiber fiber optic
• Mounting Support: 35 mm symmetrical DIN rail
• Ethernet Cabling System: TF switches
• Supply Voltage Limits: 9.6-32 V DC SELV
• Local Signalling: for P1 P2 power supplies 1 dual colour LED (green/yellow) || for data rate (ETH LINK) 1 LED per channel (yellow) || for link status 1 dual colour LED (green/yellow)
• Optic Fiber Length: 4 km 62.5/125 µm || 5 km 50/125 µm
• Power Consumption In W: 4.3 W
• Communication Service: Quality of Service (QoS)
• Marking: CE || UL || RCM
• Width: 39 mm
• Depth: 117 mm
• Net Weight: 0.430 kg
• Attenuation: 0-11 dB 62.2/125 µm) || 0-8 dB 50/125 µm)
• Electrical Connection: removable connector 6 ways power supply

Offer Sustainability

• Eu Rohs Directive: Not applicable, out of EU RoHS legal scope

Environment

• Ambient Air Temperature For Operation: -40-+70 °C
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Standards: UL 61010 || EN/IEC 61131
• Relative Humidity: 10-95 % non-condensing
• Product Certifications: CE || UL || RCM
• Ip Degree Of Protection: IP40
