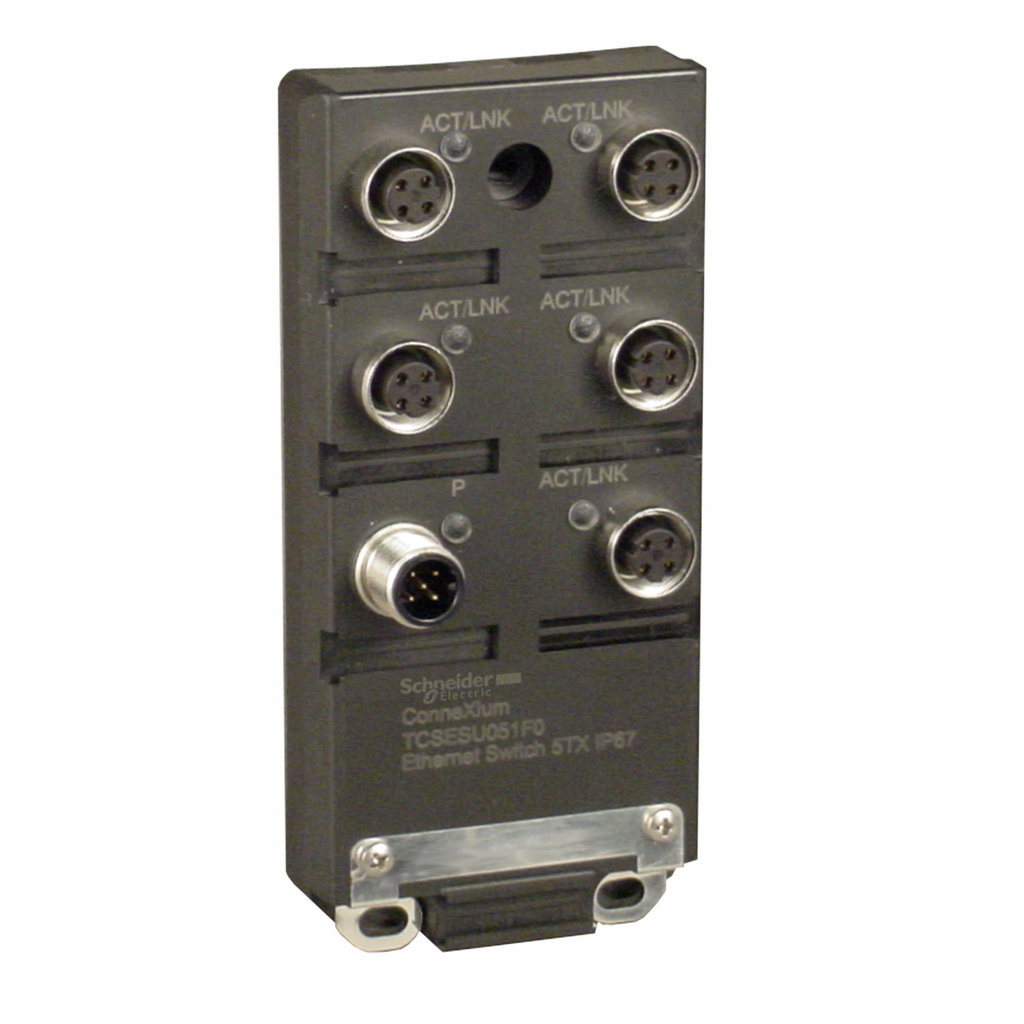

switch, Modicon Networking, unmanaged switch, 5 ports for copper M12, IP67

• Maximum Number Of Switches In Cascade: unlimited
• Range Of Product: ConneXium
• Port Ethernet: 10/100BASE-TX - 5 copper cable
• Product Or Component Type: Ethernet TCP/IP unmanaged switch
• Communication Port Protocol: Ethernet TCP/IP
• Concept: Transparent Ready

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Cable Distance Between Devices: 100 m copper cable
• [Us] Rated Supply Voltage: 24 V
• Height: 126 mm
• Integrated Connection Type: 1 M12 port copper cable
• Transmission Support Medium: twisted shielded pairs cable CAT 5E copper cable
• Mounting Support: 35 mm symmetrical DIN rail
• Power Consumption In W: 3.2 W
• Marking: CE || UL || RCM
• Net Weight: 0.21 kg
• Electrical Connection: removable M12 connector 5 ways power supply
• Ethernet Cabling System: TF switches
• Supply Voltage Limits: 18-32 V DC SELV
• Local Signalling: for power supply 1 LED (green) || for link status 1 LED per channel (green)
• Width: 60 mm
• Depth: 31 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP100304EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1003004EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ambient Air Temperature For Operation: 0-60 °C
• Standards: UL 61010 || EN/IEC 61131
• Product Certifications: CE || UL || RCM
• Directives: 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Relative Humidity: 0-95 % non-condensing
• Ip Degree Of Protection: IP67
