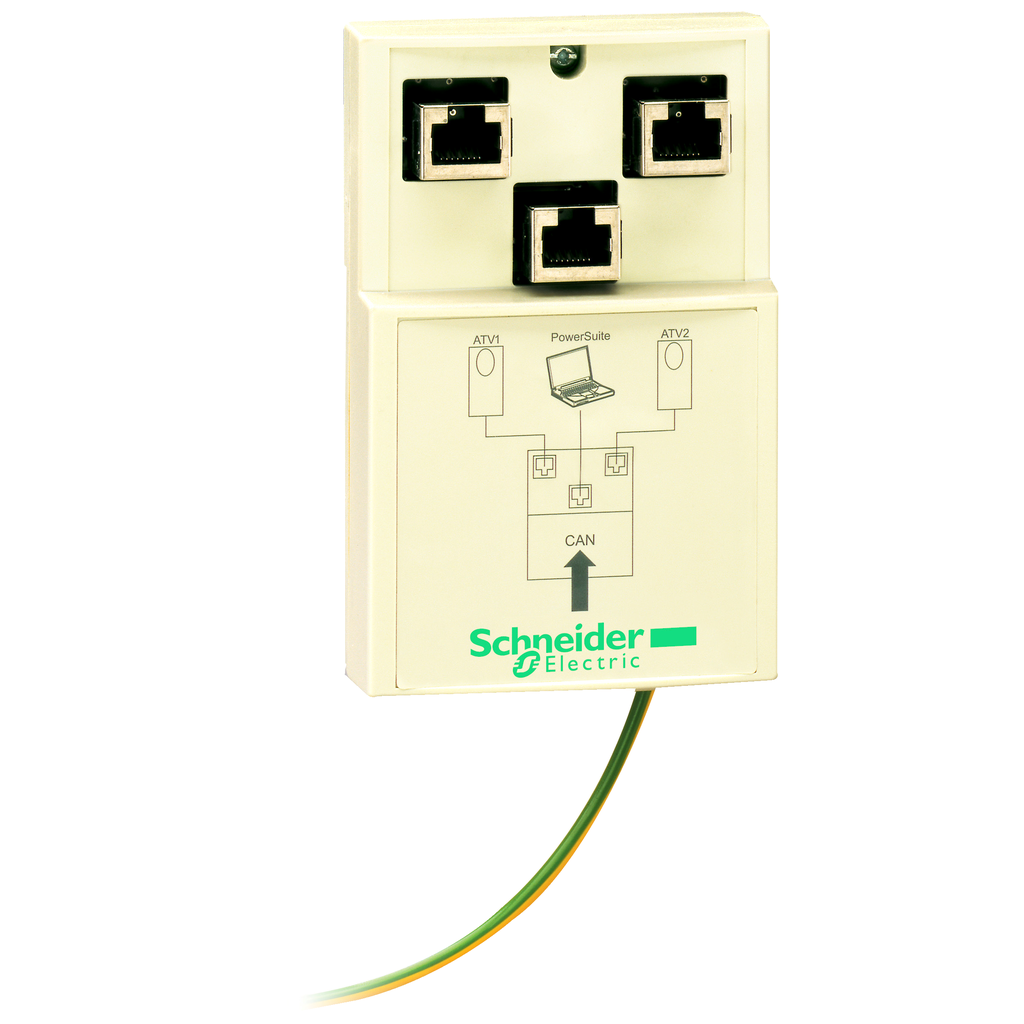

CANopen junction box, CANopen, 2 x RJ45 and 1 x RJ45

• Range Of Product: Altivar
• Bus Type: CANopen
• Accessory / Separate Part Category: connection accessory
• Quantity Per Set: set of 1
• Accessory / Separate Part Type: tap junction
• Accessory / Separate Part Destination: CANopen bus

Contractual warranty

• Warranty: 18 months

Complementary

• Communication Port Protocol: CANopen
• Electrical Connection: 2 connectors RJ45
• Range Compatibility: Altivar 31 || Altivar Machine ATV340 except Sercos drives || Lexium SD3 || Modicon M238 || Altivar 31C || Altivar Process ATV900 || Altivar 312 || CANopen || Altivar Machine ATV320 || Modicon M258 || Harmony XBT GC, GT/GK || Modicon LMC058 || Altivar 32 || Altivar Process ATV600
• Net Weight: 0.48 kg

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Ip Degree Of Protection: IP20

Data Bulletin

Catalog

System user guide

Brochure

User guide

Instruction sheet
