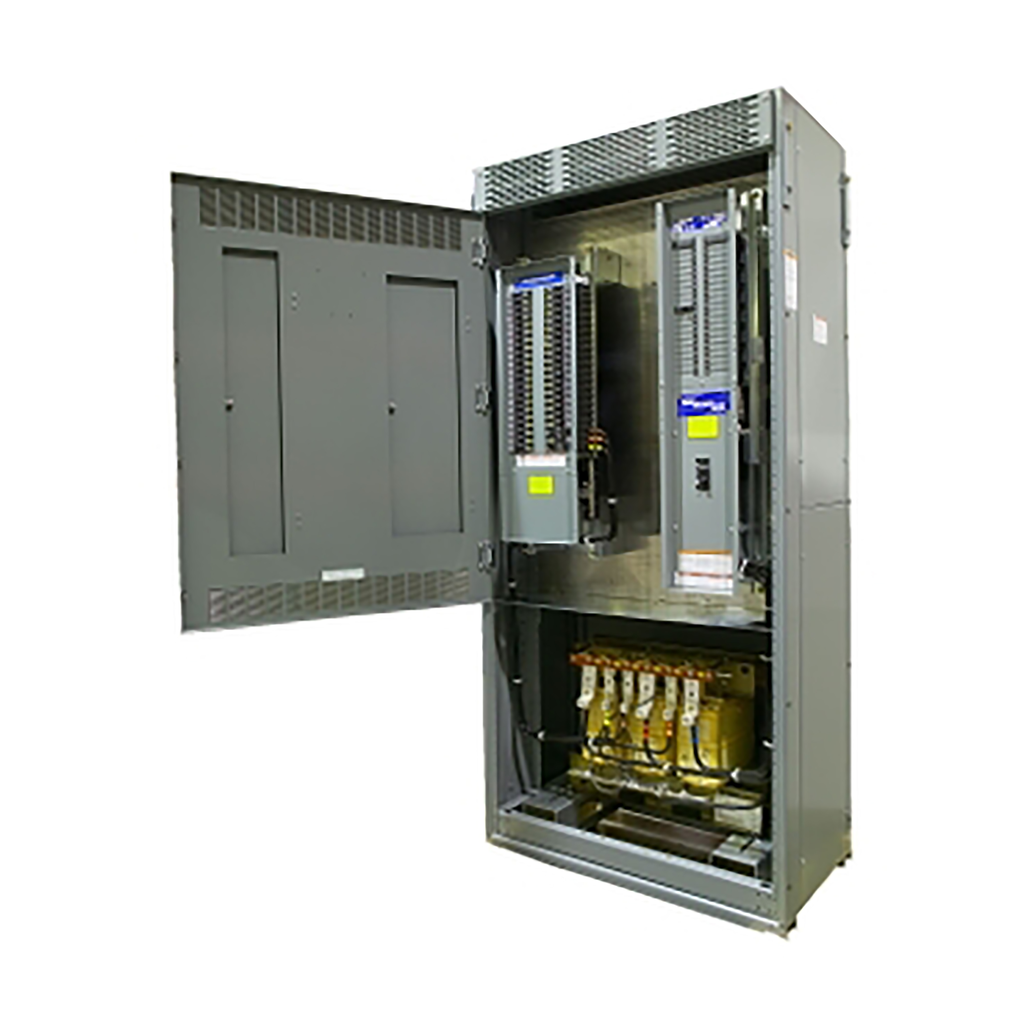

Integrated power center, IPC2, 112kVA EE transformer, 400A main lug NF panelboard, 400A main breaker NQ panelboard

• Provided Equipment: 1 NF panelboard 18 kA at 400 A 480Y/277 V AC, ready assembled || 1 NQ panelboard 10 kA at 400 A 208Y/120 V AC, || 1 DOE 2016 energy efficient transformer 480 V delta AC, || 1 thermal magnetic circuit breaker molded case circuit breaker (MCCB) 3P 10 kA at 400 A 208Y/120 V AC, || 1 lug 3P 18 kA at 400 A 480Y/277 V AC, || 1 installation accessories
• Product Or Component Type: integrated power center
• Load Center Type: main lugs || main breaker

Complementary

• Network Frequency: 60 Hz
• Height: 91.5 in
• Connections - Terminals: lug line AWG 6...350 kcmil copper or aluminium || lug neutral AWG 6...350 kcmil copper or aluminium
• [Ipk] Rated Peak Withstand Current: 8.44 kA
• Circuit Breaker Name: E-Frame, 3 , 42 || QOB/QOB-VH/QHB, 3 , 42
• [Iu] Rated Interrupted Current: 10 kA || 18 kA
• Wiring Configuration: 4-wire
• Width: 42 in
• Depth: 24 in
• Number Of Spaces: 42
• Phase: 3 phase
• Material: painted steel
• Net Weight: 648 kg
• Rated Power In Va: 112.5 kVA

Offer Sustainability

• Eu Rohs Directive: Under investigation
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL Listed
• Nema Degree Of Protection: NEMA 1
• Standards: UL 891
