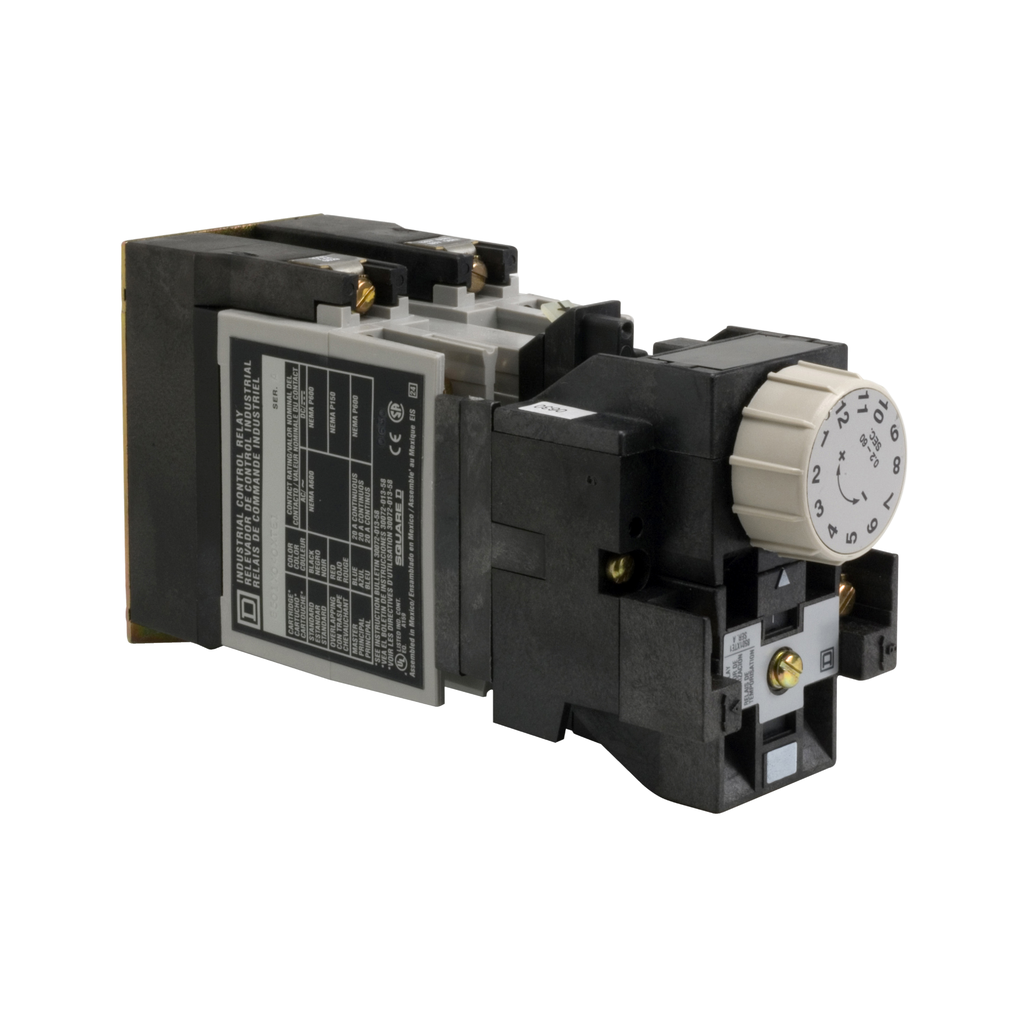

Timing Relay - One Minute Off-Delay with 240VAC Coil with No Contacts

• Line Rated Current: 10 A AC || 5 A DC
• Relay Type: timing
• Range Of Product: 8501X
• Poles Description: 0P
• Product Or Component Type: relay
• Maximum Switching Voltage: 600 V AC

Contractual warranty

• Warranty: 18 months

Complementary

• [Uc] Control Circuit Voltage: 220 V AC 50 Hz || 240 V AC 60 Hz
• [Icm] Rated Short-Circuit Making Capacity: 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
• Height: 3.5 in
• Ambient Air Temperature For Operation: -40-160 °F
• Time Delay Range: 0.2...60 s
• Control Circuit Voltage Limits: operational 0.85...1.1 Uc AC 50/60 Hz
• Mounting Support: panel
• Hold-In Power Consumption In Va: 23-23 VA 60 Hz || 25-25 VA 50 Hz
• Electrical Connection: ring tongue
• Contacts Type And Composition: without
• Rated Breaking Capacity: 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
• Operating Time: 15 ms - pick-up || 16 ms - drop-out
• Awg Gauge: AWG 18...AWG 12 copper
• Width: 2.23 in
• Tightening Torque: control circuit 1.02-1.36 N.m screw terminal
• Time Delay Type: off-delay
• Depth: 6.55 in
• Inrush Power In Va: 148-148 VA 60 Hz || 143-143 VA 50 Hz

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1310013
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1310013EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
