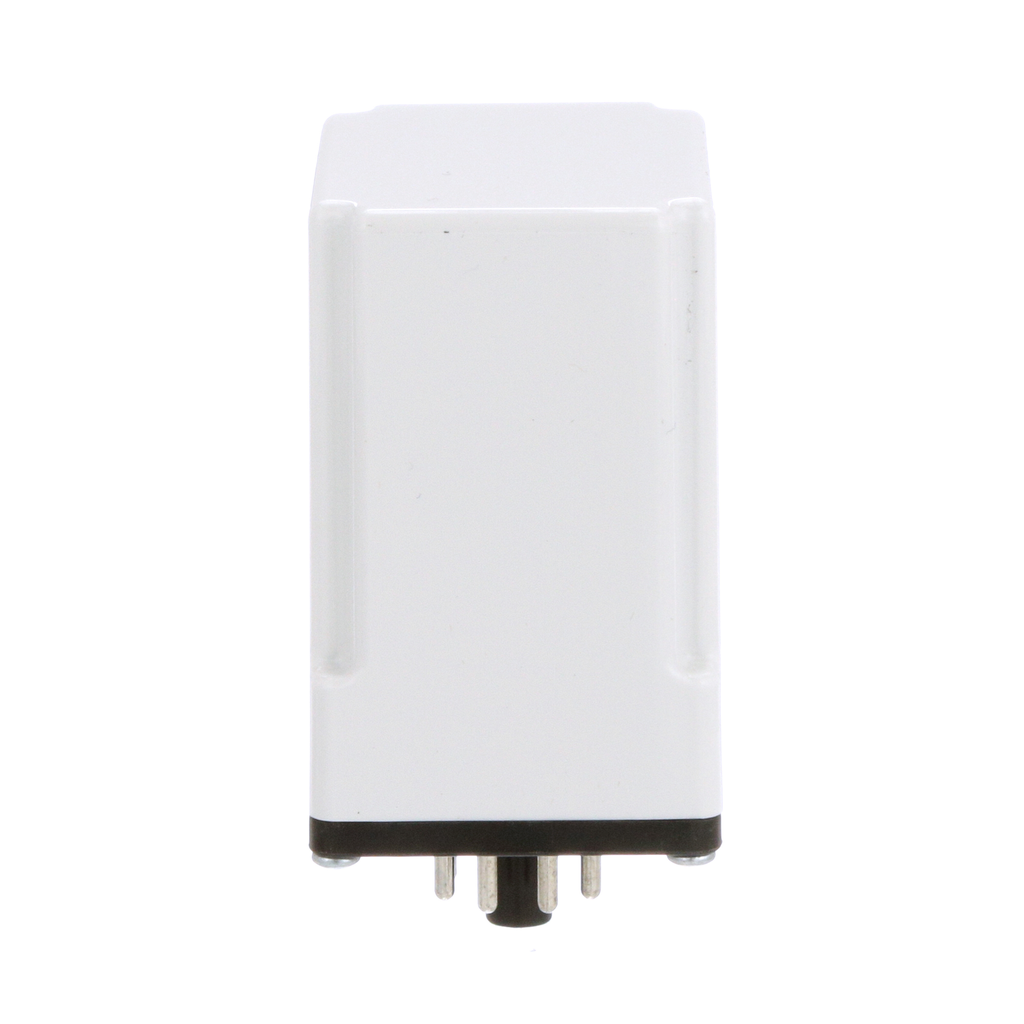

Timing Relay, Type JCK, plug In, repeat cycle, fixed time, 1 second, 10A, 240 VAC, 120 VAC/110 VDC

• [Uc] Control Circuit Voltage: 120 V AC || 110 V DC
• Time Delay Range: 1 s
• Range Of Product: 9050JCK
• Product Or Component Type: timer
• Time Delay Type: repeat cycle

Contractual warranty

• Warranty: 18 months

Complementary

• Contacts Type And Composition: 2 NO + 2 NC
• Mounting Support: socket
• Contacts Material: silver nickel
• Hold-In Power Consumption In Va: 2-2 VA
• Shape Of Pin: tubular
• Line Rated Current: 10 A
• Switch Function: DPDT
• Pin Number: 8
• Product Compatibility: 8501NR51 || 8501NR52
• Maximum Switching Voltage: 240 V AC

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1406037EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1406037EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Environment

• Product Certifications: CE || UL Recognized || UL Listed
• Height: 61 mm
• Ambient Air Temperature For Operation: -18-150 °F
• Width: 43 mm
• Depth: 104 mm
