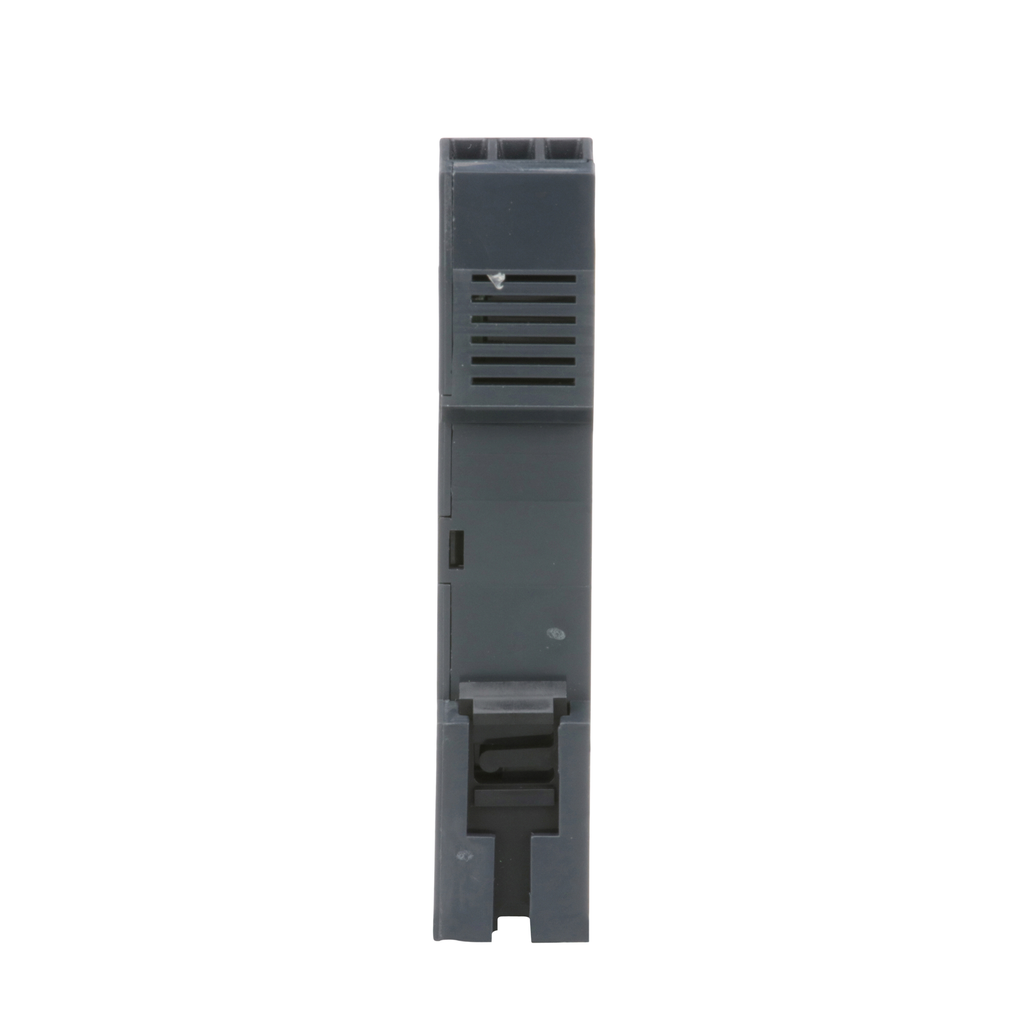

Zelio, 3 phase supply control relay, range 208 to 480 VAC, sequence, phase failure, phase imbalance, voltage

• Range Of Product: Harmony Control Relays
• Measurement Range: 208...480 V voltage AC
• Switching Capacity In Va: 1250 VA
• Product Or Component Type: 3-phase control relay
• Relay Name: RM17TE
• Contacts Type And Composition: 1 C/O
• Relay Type: multifunction control relay
• Product Specific Application: for 3-phase supply
• Time Delay Type: adjustable 0.1...10 s, +/- 10 % of the full scale value
• Relay Monitored Parameters: undervoltage and overvoltage in window mode || asymmetry || phase sequence || phase failure detection
• [Uc] Control Circuit Voltage: 208...480 V

Contractual warranty

• Warranty: 18 months

Complementary

• Voltage Range: 208...480 V phase to phase
• Safety Reliability Data: MTTFd = 502.2 years || B10d = 470000
• Minimum Switching Current: 10 mA 5 V DC
• Maximum Measuring Cycle: 150 ms measurement cycle as true rms value
• Control Circuit Voltage Limits: 12 % + 10 % Un
• Maximum Switching Current: 5 A AC || 5 A DC
• Hysteresis: 2-2 %
• Insulation Resistance: > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
• Measurement Error: < 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
• Operating Rate: <= 360 operations/hour full load
• Phase Failure Sensitivity: 0.7 Un
• Power Consumption In Va: 0-22 VA 400 V AC 50 Hz
• Output Contacts: 1 C/O
• Adjustment Of Asymmetry Threshold: 5...15 % of Un selected
• Marking: CE
• Response Time: < 200 ms (in the event of a fault)
• Operating Position: any position without derating
• Utilisation Category: AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
• Net Weight: 0.13 kg
• Maximum Switching Voltage: 250 V AC || 250 V DC
• Measurement Voltage Limits: 183-528 V AC
• Reset Time: 1500 ms time delay
• Connections - Terminals: screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• [Ui] Rated Insulation Voltage: 400 V IEC 60664-1
• Overvoltage Category: III IEC 60664-1
• Supply Voltage Limits: 183-528 V AC
• Mounting Support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
• Nominal Output Current: 5 A
• Local Signalling: for power ON LED (green) || for relay ON LED (yellow)
• Mechanical Durability: 30000000 cycles
• Housing Material: self-extinguishing plastic
• Control Circuit Frequency: 50...60 Hz +/- 10 %
• Threshold Adjustment Voltage: -2...-17 % in the range 220 V AC || +2...+17 % in the range 480 V AC || -2...-12 % in the range 208 V AC || 2...20 % of Un selected
• Width: 17.5 mm
• Tightening Torque: 0.6-1 N.m IEC 60947-1
• Electrical Durability: 100000 cycles
• Run-Up Delay At Power-Up: 650 ms
• Supply Frequency: 50/60 Hz +/- 10 %
• Repeat Accuracy: 0.5 % input and measurement circuit || 3 % time delay

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1504008EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1504008EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: GOST || C-tick || CSA || UL || GL
• Standards: EN/IEC 60255-1
• Non-Dissipating Shock Wave: 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
• Dielectric Test Voltage: 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
• Electromagnetic Compatibility: emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
• Shock Resistance: 15 gn 11 ms IEC 60255-21-1
• Ambient Air Temperature For Operation: -20-50 °C
• Vibration Resistance: 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
• Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Pollution Degree: 3 IEC 60664-1
• Directives: 89/336/EEC - electromagnetic compatibility || 73/23/EEC - low voltage directive
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 95-95 % 55-55 °C IEC 60068-2-30
