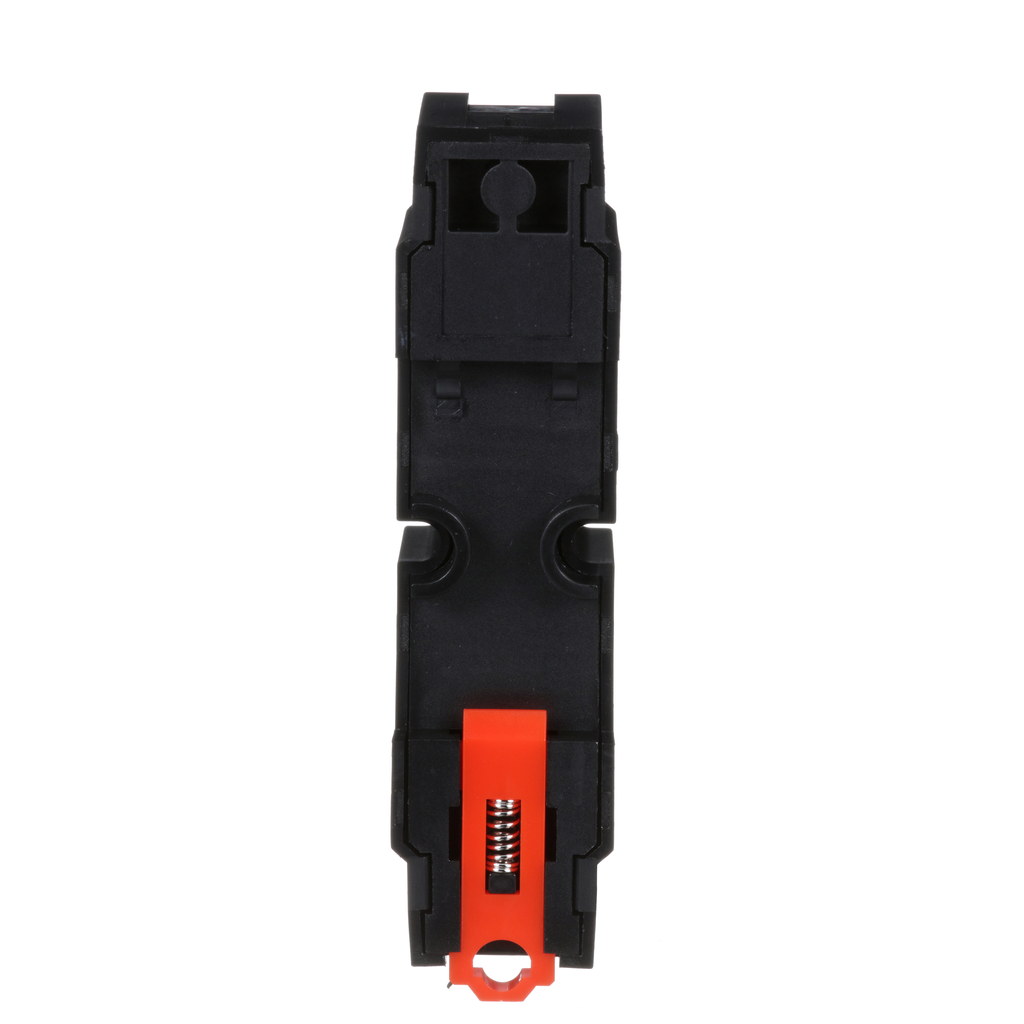

Zelio, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays

• Range Of Product: Harmony Electromechanical Relays
• Product Or Component Type: socket
• Contact Terminal Arrangement: mixed
• Product Compatibility: plug-in relay RPM 1 C/O
• Device Short Name: RPZ

Contractual warranty

• Warranty: 18 months

Complementary

• [Ith] Conventional Free Air Thermal Current: 16 A
• Tightening Torque: < 1 N.m M3.5 || < 0.8 N.m M3
• [Uimp] Rated Impulse Withstand Voltage: 4 kV
• Pollution Degree: 3
• Net Weight: 0.031 kg
• Fixing Mode: by screw panel) || clip-on 35 mm symmetrical DIN rail)
• Overvoltage Category: III
• [Ue] Rated Operational Voltage: 250 V

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511021EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || UL || EAC || CE
• Ambient Air Temperature For Operation: -40-55 °C
• Standards: IEC 61984 || CSA C22.2 No 14 || UL 508
• Connections - Terminals: contact terminal - screw clamp terminals, 2 wires solid without cable end 0.5...4 mm² / AWG 20...AWG 12 || contact terminal - screw clamp terminals, 1 wire solid without cable end 0.5...4 mm² / AWG 20...AWG 12 || contact terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14 || contact terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...2.5 mm² / AWG 20...AWG 14 || coil terminal - screw clamp terminals, 2 wires solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14 || coil terminal - screw clamp terminals, 1 wire solid without cable end 0.5...2.5 mm² / AWG 20...AWG 14 || coil terminal - screw clamp terminals, 2 wires flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16 || coil terminal - screw clamp terminals, 1 wire flexible with cable end 0.5...1.5 mm² / AWG 20...AWG 16
• Ip Degree Of Protection: IP20 conforming to EN/IEC 60529
• Dielectric Strength: 2500 V
• Ambient Air Temperature For Storage: -40-85 °C
