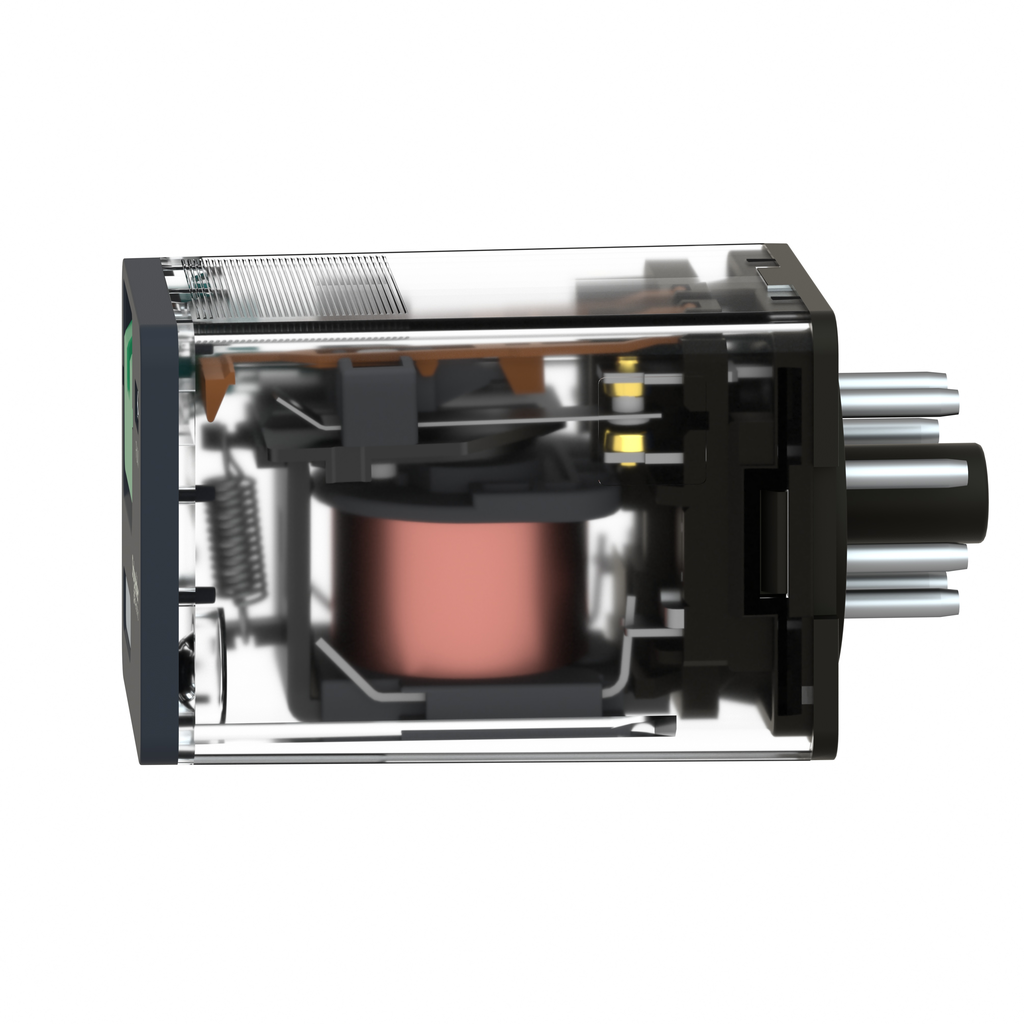

Universal plug in relay, Harmony, 10A, 2CO, lockable test button, 24V DC

• Utilisation Coefficient: 20 %
• [Uc] Control Circuit Voltage: 24 V DC
• Range Of Product: Harmony Electromechanical Relays
• Product Or Component Type: plug-in relay
• Status Led: without
• Control Type: lockable test button
• Series Name: Universal
• Contacts Type And Composition: 2 C/O
• Device Short Name: RUM
• [Ithe] Conventional Enclosed Thermal Current: 10 A -40-55 °C

Complementary

• Maximum Switching Capacity: 2500 VA/280 W
• Safety Reliability Data: B10d = 100000
• Operating Rate: <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
• Protection Category: RT I
• Test Levels: level A
• Electrical Durability: 100000 cycles resistive
• Contacts Material: AgNi
• Shape Of Pin: cylindrical
• Reset Time: 20 ms at nominal voltage
• Net Weight: 0.086 kg
• [Uimp] Rated Impulse Withstand Voltage: 4 kV 1.2/50 µs)
• Maximum Switching Voltage: 250 V IEC
• Average Resistance: 470 Ohm 20 °C +/- 15 %
• Device Presentation: complete product
• [Ie] Rated Operational Current: 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V DC (NO) conforming to IEC || 10 A at 277 V AC conforming to CSA
• Average Coil Consumption: 1.4 W
• Rated Operational Voltage Limits: 19.2...26.4 V DC
• [Ui] Rated Insulation Voltage: 250 V IEC || 300 V CSA || 300 V UL
• Mechanical Durability: 5000000 cycles
• Operating Position: any position
• Operating Time: 20 ms at nominal voltage
• Load Current: 10 A 250 V AC || 10 A 28 V DC
• Drop-Out Voltage Threshold: >= 0.1 Uc DC
• Minimum Switching Capacity: 170 mW 10 mA, 17 V

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1406038EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: EAC || CSA || UL
• Standards: EN/IEC 61810-1 || UL 508 || CSA C22.2 No 14
• Pollution Degree: 3
• Ambient Air Temperature For Operation: -40-55 °C
• Dielectric Strength: 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
• Vibration Resistance: 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Shock Resistance: 10 gn 11 ms) in operation EN/IEC 60068-2-27 || 10 gn 11 ms) not operating EN/IEC 60068-2-27
• Ip Degree Of Protection: IP40
• Ambient Air Temperature For Storage: -40-85 °C
