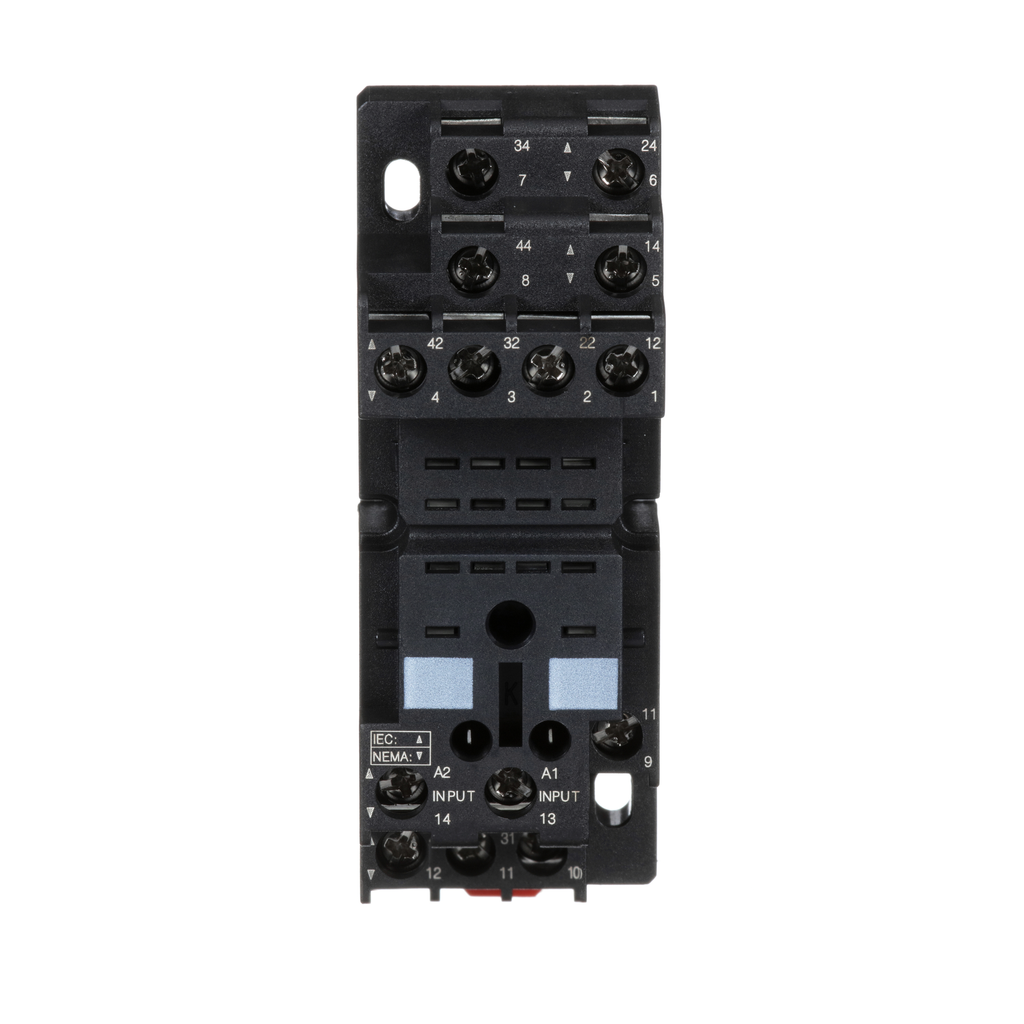

Zelio, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays

• Range Of Product: Harmony Electromechanical Relays || Harmony Timer Relays
• Shape Of Pin: flat
• Product Or Component Type: socket
• Contact Terminal Arrangement: mixed
• Sale Per Indivisible Quantity: 10
• Product Compatibility: plug-in relay RXM 2 C/O || plug-in relay RXM 4 C/O
• Device Short Name: RXZ

Contractual warranty

• Warranty: 18 months

Complementary

• [Ith] Conventional Free Air Thermal Current: 10 A
• Tightening Torque: < 1 N.m M3
• [Ue] Rated Operational Voltage: < 250 V
• Marking: CE
• Net Weight: 0.048 kg
• Fixing Mode: by screw panel) || clip-on 35 mm symmetrical DIN rail)
• Connections - Terminals: screw clamp terminals, 1 x 0.25...1 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw clamp terminals, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw clamp terminals, 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end || screw clamp terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
• Width: 30 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511021EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL || CSA || Lloyd's
• Ambient Air Temperature For Operation: -40-55 °C
• Standards: IEC 61984
• [Uimp] Rated Impulse Withstand Voltage: 4 kV
• Pollution Degree: 3
• Ip Degree Of Protection: IP20 conforming to EN/IEC 60529
• Dielectric Strength: 2500 V
• Ambient Air Temperature For Storage: -40-85 °C
• Overvoltage Category: III
