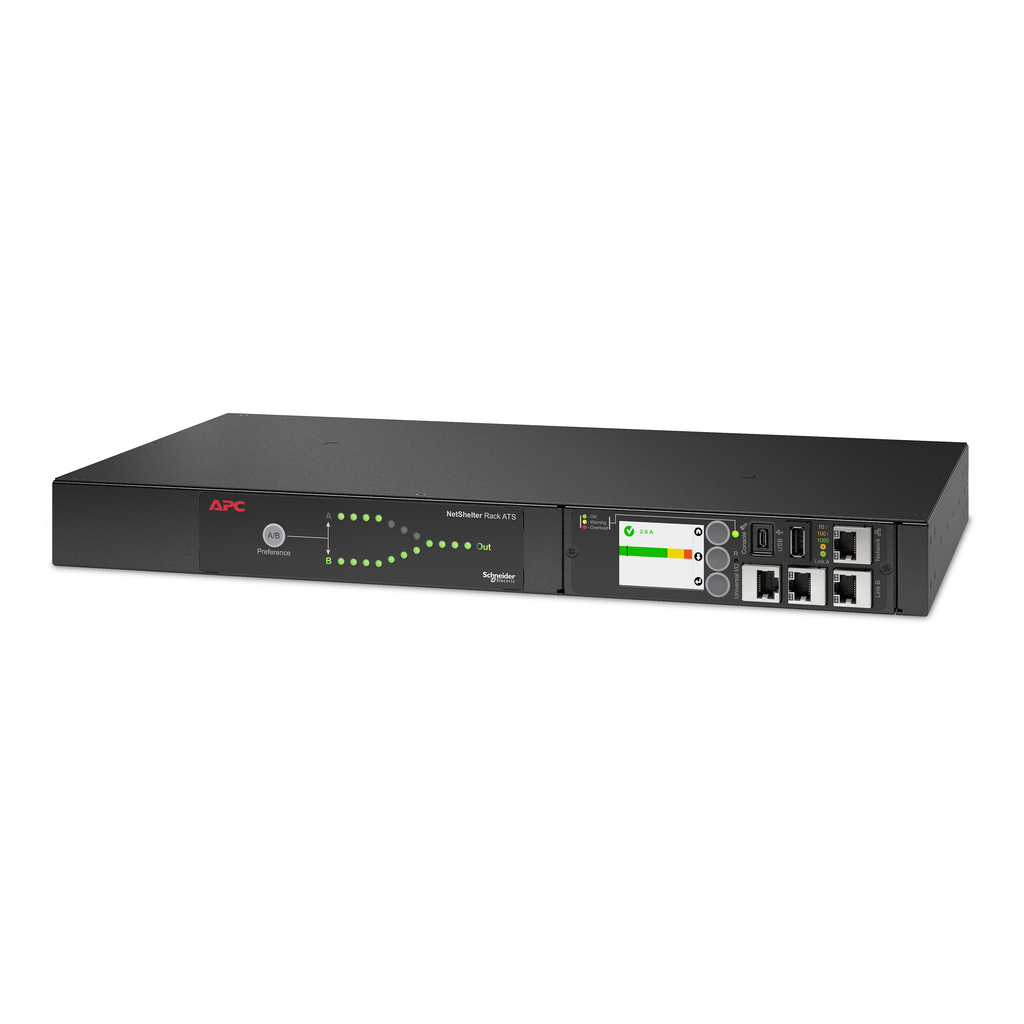

APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz

• Number Of Cables: 2
• Cable Length: 8 ft
• Product Or Component Type: automatic transfer switch
• Main Input Voltage: 100 V AC 1 phase || 120 V
• Number Of Rack Unit: 1U
• Provided Equipment: Mounting Hardware || Rack Mounting brackets || Serial configuration cable

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Storage Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -5-45 °C
• Storage Altitude: 0-15240 m
• Ambient Air Temperature For Storage: -25-65 °C
• Relative Humidity: 5-95 %
• Operating Altitude: 0...10000 ft

Physical

• Height: 4.4 cm
• Net Weight: 4.4 kg
• Mounting Location: front
• Mounting Mode: rack-mounted
• Color: Black
• Mounting Position: horizontal
• Width: 43.2 cm
• Depth: 23.6 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1712015_EN
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Lead Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1712015_EN
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 50/60 Hz
• Line Rated Current: 15 A

Overview

• Lead Time: Usually in Stock

Output

• Protection Type: without circuit breaker

Conformance

• Product Certifications: PSE || TÜV-C || TÜV-NURTL || VCCI Class A
• Standards: FCC Part 15 class A || ICES-003
