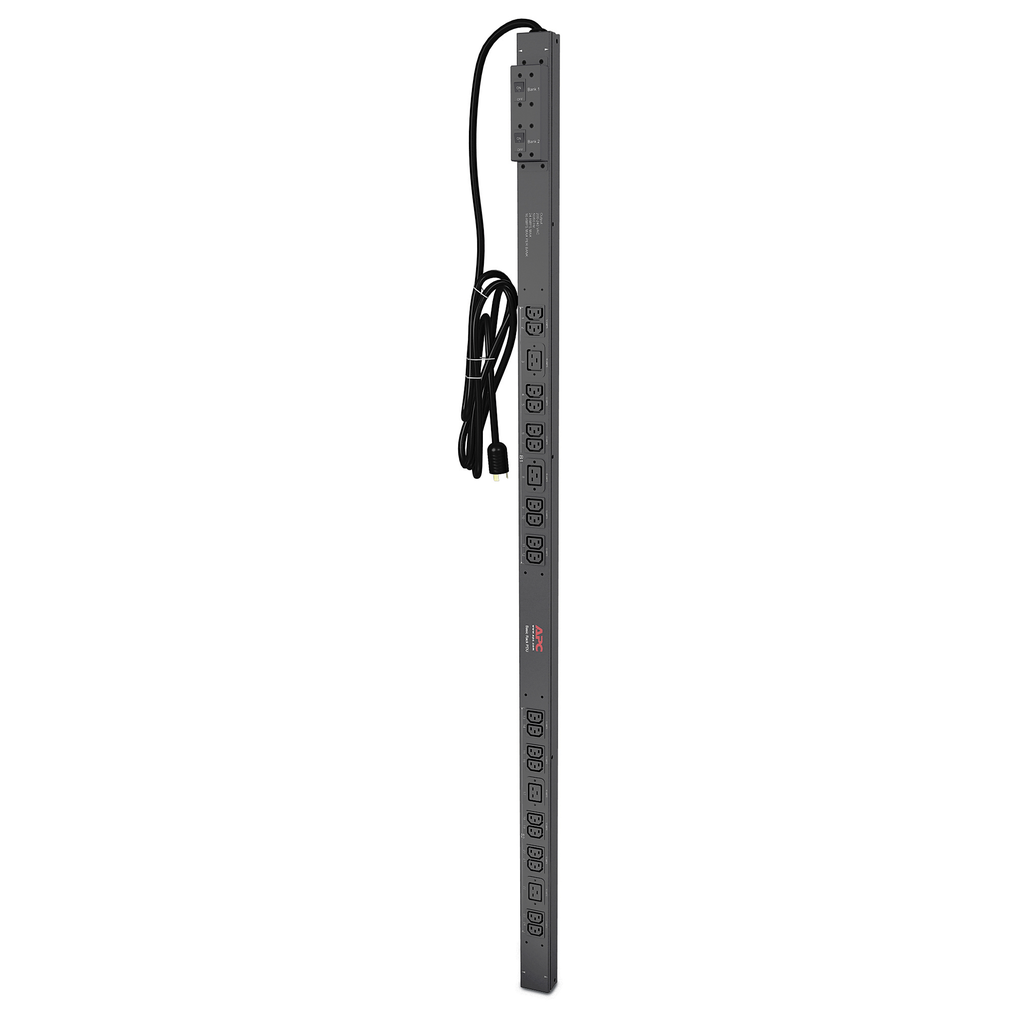

Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19

Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19

Part Number: AP7541

UPC:

Contact for Price
View full details

Product Description

  • Number Of Cables: 1
  • Cable Length: 10 ft
  • Main Input Voltage: 200 V || 208 V || 230 V
  • Number Of Rack Unit: 0U
  • Provided Equipment: Installation guide || Rack Mounting brackets || Toolless Mounting Kit

Contractual warranty

  • Warranty: 2 years repair or replace

Environmental

  • Storage Relative Humidity: 0-95 %
  • Ambient Air Temperature For Operation: 0-45 °C
  • Storage Altitude: 0-50000 ft
  • Ambient Air Temperature For Storage: -25-65 °C
  • Relative Humidity: 0-95 %
  • Operating Altitude: 0...10000 ft

Physical

  • Height: 161.9 cm
  • Usb Compatible: No
  • Net Weight: 5.57 kg
  • Mounting Location: side
  • Mounting Mode: rack-mounted
  • Color: Black
  • Mounting Position: vertical
  • Width: 5.6 cm
  • Depth: 4.4 cm

Offer Sustainability

  • Environmental Disclosure: ENVPEP1512009_V1
  • Sustainable Offer Status: Green Premium product
  • Take-Back: Take-back program available
  • Lead Free: Yes
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Optimized Energy Efficiency: Energy efficient product
  • Circularity Profile: ENVEOLI1512009_V1
  • Eu Rohs Directive: Compliant

Input

  • Input Frequency: 50/60 Hz
  • Line Rated Current: 24 A

Overview

  • Lead Time: Usually in Stock
  • Presentation: APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.

Conformance

  • Product Certifications: cUL Listed || METI Denan || PSE || UL Listed
  • Standards: CSA C22.2 No. 60950-1-03 || UL 60950-1
Spec Sheet

Certificate

CB Certificate AP6K, AP7K , AP9K series PDU's - US-36671-M1-UL (pdf)
DENAN Agency Approval - NBK120117-E177299 Denan PSE Approval Multiple Socket Outlet rPDU - PLUM-AHNQWA_R0_EN (pdf)
DENAN Agency Approval - NBK190615-E177299 Denan PSE Approval Multiple Socket Outlet rPDU - PLUM-9Z5QXC_R0_EN_SRC (pdf)
DENAN Agency Approval - NBK190615-E177299 Denan PSE Approval Multiple Socket Outlet rPDU - PLUM-9Z5QXC_R0_EN (pdf)
Confirmation Letter for Products Outside the scope of China Certificate - 992-9272_REV02_Basic+PDU (pdf)
CCC Exemption Letter - PLUM-AMAM3C_R1_EN (pdf)
UL C of C for rPDU_AP6K, AP7K, AP9K series - E177299-A6016-CertificateofCompliance (pdf)

Specification guide

Basic Rack PDU AP7541 (Sheet) - ASTE-6Z6JX6_R1_EN (pdf)

User guide

Basic Rack PDU Installation and Quick-Start (Manual) - ASTE-6Z6JZ8_R0_EN (pdf)

Technical Drawing

AP7541 - Rack PDU, Basic, Double pole CB - RZAN-6BZNZR_R2_EN (pdf)
AP7541 - Rack PDU, Basic, Double pole CB - AP7541_-_Rack_PDU_Basic_Zero_U (dwg)

Circularity Profile

EoLi - Basic Rack PDUs - GWOG-8WTK3F_R1_EN (pdf)

Instruction sheet

Rack PDU Accessories Circuit Breaker Operation (Sheet) - ASTE-6Z6K8Q_R0_EN (pdf)
Power Distribution Units : Deep Toolless Mounting Kit (Sheet) - ASTE-6Z6K7E_R0_EN (pdf)

Environmental Disclosure

ePEP - Basic Rack PDUs - GWOG-8WKNQW_R0_EN_SRC (pdf)
ePEP - Basic Rack PDUs - GWOG-8WKNQW_R0_EN (pdf)

Catalog

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 208 and 415V Compatibility Chart - AKAR-8EMN4Q_R6_EN_SRC (pdf)
Rack Power Distribution Unit (PDU) Pocket Guide - 1014e-APC-NetShelterPDUAdvanced_PocketGuide_rev11 (pdf)
APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 208 and 415V Compatibility Chart - AKAR-8EMN4Q_R6_EN (pdf)
