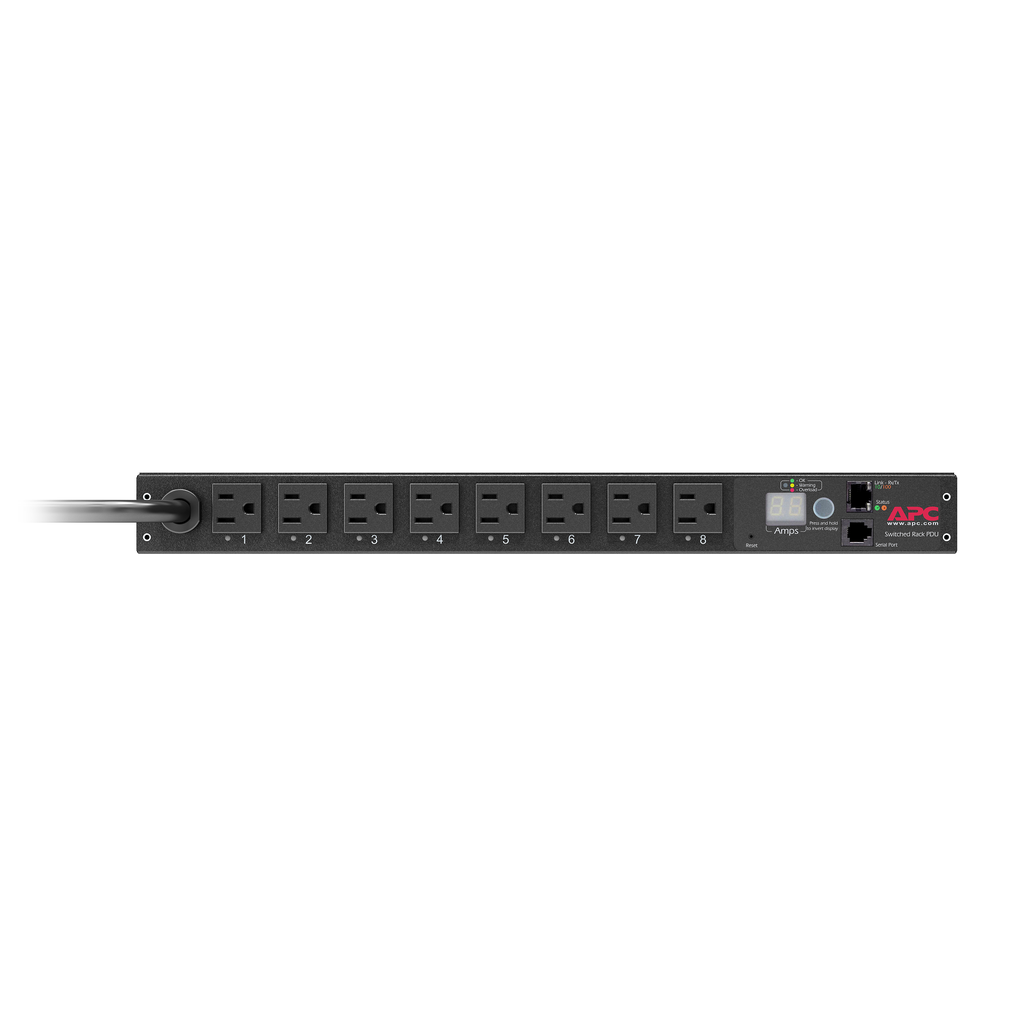

Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
AP7900B
Product Description
- Number Of Cables: 1
- Cable Length: 12 ft
- Main Input Voltage: 100 V || 120 V
- Number Of Rack Unit: 1U
- Provided Equipment: Cord retention bracket(s) || Horizontal mounting brackets || User Manual || Installation guide
Contractual warranty
- Warranty: 2 years repair or replace
Environmental
- Storage Relative Humidity: 0-95 %
- Ambient Air Temperature For Operation: 0-45 °C
- Storage Altitude: 0-50000 ft
- Ambient Air Temperature For Storage: -25-65 °C
- Relative Humidity: 0-95 %
- Operating Altitude: 0...10000 ft
Physical
- Height: 4.4 cm
- Net Weight: 2.27 kg
- Mounting Location: front || rear
- Mounting Mode: rack-mounted
- Color: Black
- Mounting Position: horizontal
- Width: 44.5 cm
- Depth: 10.8 cm
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1612033_EN
- Sustainable Offer Status: Green Premium product
- Take-Back: Take-back program available
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Optimized Energy Efficiency: Energy efficient product
- Circularity Profile: ENVEOLI1612033_EN
- Eu Rohs Directive: Compliant
Input
- Input Frequency: 50/60 Hz
- Line Rated Current: 12 A
Overview
- Lead Time: Usually in Stock
- Presentation: This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Conformance
- Product Certifications: cUL Listed || UL Listed
- Standards: FCC Part 15 class A || ICES-003
Spec Sheet
CB Certificate AP6K, AP7K , AP9K series PDU's - US-36671-M1-UL (pdf)
Declaration of Conformity CMIM Morocco_AP79XX Series (French) - PLUM-BC6HQ9_R0_EN (pdf)
NBK290818-E177299 PSE Approval Rack PDU - PLUM-B5CQ3W_R0_EN (pdf)
Confirmation Letter for Products Outside the Scope of China Certificate - 992-9261_REV02_rPDU+AP8K+AP7K (pdf)
UL C of C for rPDU_AP6K, AP7K, AP9K series - E177299-A6016-CertificateofCompliance (pdf)
AP7900B - Rack PDU, Switched, 1U, 15A, 100-120V, (8)5-15 - AP7900B_-_Rack_PDU_Switched_1U_15A_100-120V_(8)5-15 (dwg)
Certificate
NBK290818-E177299 PSE Approval Rack PDU - PLUM-B5CQ3W_R0_EN_SRC (pdf)CB Certificate AP6K, AP7K , AP9K series PDU's - US-36671-M1-UL (pdf)
Declaration of Conformity CMIM Morocco_AP79XX Series (French) - PLUM-BC6HQ9_R0_EN (pdf)
NBK290818-E177299 PSE Approval Rack PDU - PLUM-B5CQ3W_R0_EN (pdf)
Confirmation Letter for Products Outside the Scope of China Certificate - 992-9261_REV02_rPDU+AP8K+AP7K (pdf)
UL C of C for rPDU_AP6K, AP7K, AP9K series - E177299-A6016-CertificateofCompliance (pdf)
Quick start guide
Installation Sheet Rack PDU AP7XXXB Series - 990-9944B_EN (pdf)User guide
Online User Guide Rack PDUs and In-Line Current Meters AP7XXXB - 990-5848C_EN (pdf)Circularity Profile
End of Life instructions for Switched Rack PDU _EN - ENVEOLI1612033_EN (pdf)Specification guide
Switched Rack PDU AP7900B, AP7901B Overview and Specifications - 990-5830B_ML (pdf)Firmware
Network Management Card 3 (NMC3) RPDU v2.3.1.6 Firmware Release - apc_hw21_rpdu2g_2-3-1-6.exeHandout
Reference for Next Generation AP7000 Series Metered and Switched Rack PDUs - KBOH-AFXJ6D_R0_EN (pdf)Technical Drawing
AP7900B - Rack PDU, Switched, 1U, 15A, 100-120V, (8)5-15 - JSHR-AGMDBW_R0_EN (pdf)AP7900B - Rack PDU, Switched, 1U, 15A, 100-120V, (8)5-15 - AP7900B_-_Rack_PDU_Switched_1U_15A_100-120V_(8)5-15 (dwg)
