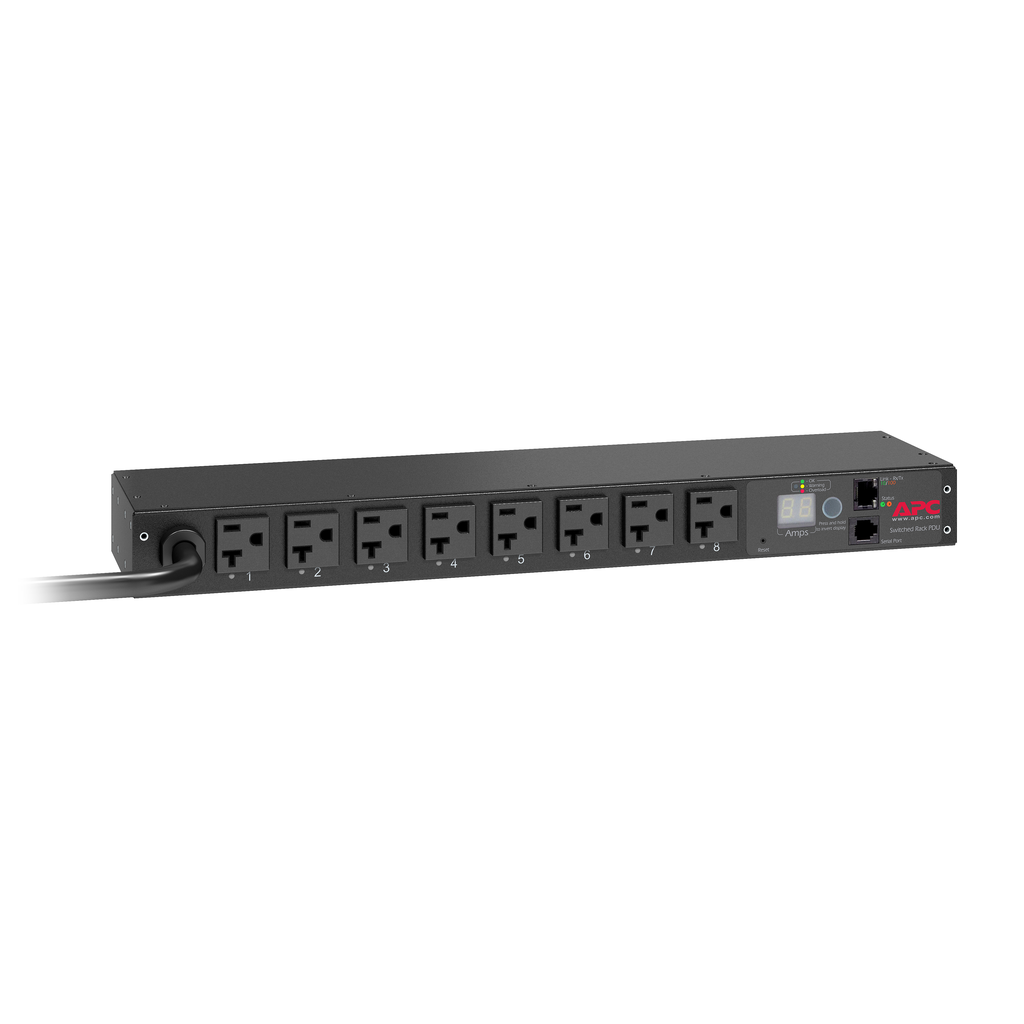

Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
AP7901B
Product Description
- Number Of Cables: 1
- Cable Length: 12 ft
- Main Input Voltage: 100 V || 120 V
- Number Of Rack Unit: 1U
- Provided Equipment: Cord retention bracket(s) || Horizontal mounting brackets || User Manual || Installation guide
Contractual warranty
- Warranty: 2 years repair or replace
Environmental
- Storage Relative Humidity: 0-95 %
- Ambient Air Temperature For Operation: 0-45 °C
- Storage Altitude: 0-50000 ft
- Ambient Air Temperature For Storage: -25-65 °C
- Relative Humidity: 0-95 %
- Operating Altitude: 0...10000 ft
Physical
- Height: 4.4 cm
- Net Weight: 2.27 kg
- Mounting Location: front || rear
- Mounting Mode: rack-mounted
- Color: Black
- Mounting Position: horizontal
- Width: 44.5 cm
- Depth: 10.8 cm
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1612033_EN
- Sustainable Offer Status: Green Premium product
- Take-Back: Take-back program available
- Lead Free: Yes
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Optimized Energy Efficiency: Energy efficient product
- Circularity Profile: ENVEOLI1612033_EN
- Eu Rohs Directive: Compliant
Input
- Input Frequency: 50/60 Hz
- Line Rated Current: 16 A
Overview
- Lead Time: Usually in Stock
Conformance
- Product Certifications: cUL Listed || CSA || Industry Canada || UL Listed
- Standards: FCC Part 15 class A || ICES-003 || UL 60950
Spec Sheet
AP7901B - Rack PDU, Switched, 1U, 20A, 100-120V, (8)5-15 - JSHR-AGMDGP_R0_EN (pdf)
Quick start guide
Installation Sheet Rack PDU AP7XXXB Series - 990-9944B_EN (pdf)User guide
Online User Guide Rack PDUs and In-Line Current Meters AP7XXXB - 990-5848C_EN (pdf)Circularity Profile
End of Life instructions for Switched Rack PDU _EN - ENVEOLI1612033_EN (pdf)Specification guide
Switched Rack PDU AP7900B, AP7901B Overview and Specifications - 990-5830B_ML (pdf)Firmware
Network Management Card 3 (NMC3) RPDU v2.3.1.6 Firmware Release - apc_hw21_rpdu2g_2-3-1-6.exeHandout
Reference for Next Generation AP7000 Series Metered and Switched Rack PDUs - KBOH-AFXJ6D_R0_EN (pdf)Technical Drawing
AP7901B - Rack PDU, Switched, 1U, 20A, 100-120V, (8)5-15 - AP7901B_-_Rack_PDU_Switched_1U_20A_100-120V_(8)5-15 (dwg)AP7901B - Rack PDU, Switched, 1U, 20A, 100-120V, (8)5-15 - JSHR-AGMDGP_R0_EN (pdf)
