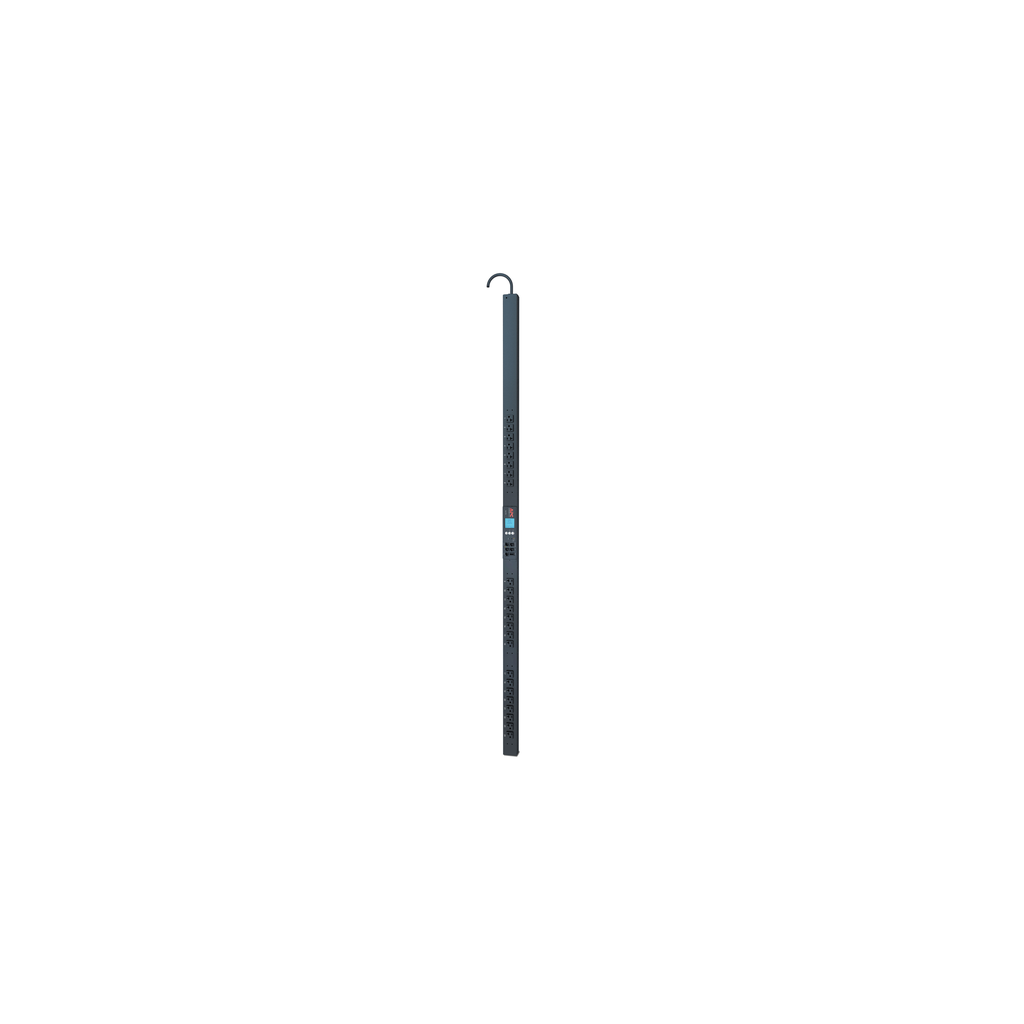

APC Rack PDU, 2G, metered, 0U, 20A, 100V to 120V, 24 NEMA 5-20R sockets

• Number Of Cables: 1
• Cable Length: 9.84 ft
• Main Input Voltage: 100 V || 120 V
• Number Of Rack Unit: 0U
• Provided Equipment: Installation guide || Rack Mounting brackets || Serial configuration cable || Safety guide

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Storage Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -5-60 °C
• Storage Altitude: 0-50000 ft
• Ambient Air Temperature For Storage: -25-65 °C
• Relative Humidity: 5-95 %
• Operating Altitude: 0...10000 ft

Physical

• Height: 179.1 cm
• Net Weight: 5.59 kg
• Mounting Location: side
• Mounting Mode: rack-mounted
• Color: Black
• Mounting Position: vertical
• Width: 5.5 cm
• Depth: 4.4 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1712014_EN
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Lead Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Optimized Energy Efficiency: Energy efficient product
• Circularity Profile: ENVEOLI1712014_EN
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 50/60 Hz
• Line Rated Current: 16 A

Overview

• Lead Time: Usually in Stock
• Presentation: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Conformance

• Product Certifications: cUL Listed || UL Listed
• Standards: FCC Part 15 class A || ICES-003 || UL 60950-1
