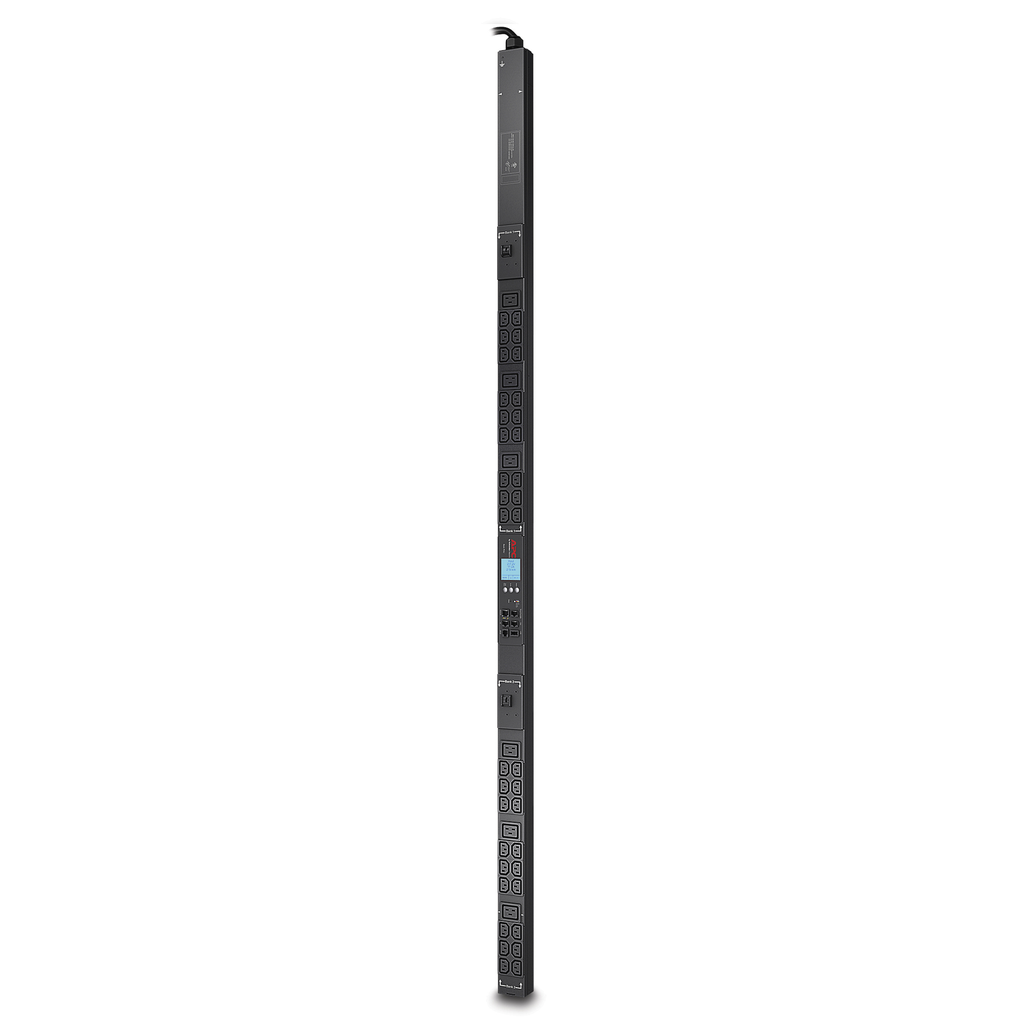

APC Rack PDU, 2G, metered, 0U, 30A, 200V and 208V, 36 C13 and 6 C19 sockets

• Number Of Cables: 1
• Cable Length: 9.84 ft
• Main Input Voltage: 200 V || 208 V
• Number Of Rack Unit: 0U
• Provided Equipment: Installation guide || Rack Mounting brackets || Serial configuration cable || Safety guide

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Storage Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -5-60 °C
• Storage Altitude: 0-50000 ft
• Ambient Air Temperature For Storage: -25-65 °C
• Relative Humidity: 5-95 %
• Operating Altitude: 0...10000 ft

Physical

• Height: 179.1 cm
• Usb Compatible: No
• Net Weight: 6.84 kg
• Mounting Location: side
• Mounting Mode: rack-mounted
• Color: Black
• Mounting Position: vertical
• Width: 5.6 cm
• Depth: 4.4 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1712014_EN
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Lead Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Optimized Energy Efficiency: Energy efficient product
• Circularity Profile: ENVEOLI1712014_EN
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 50/60 Hz
• Line Rated Current: 24 A

Overview

• Lead Time: Usually in Stock
• Presentation: APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.

Conformance

• Product Certifications: METI Denan || PSE || VDE
• Standards: CSA C22.2 No. 60950 || IEC 60950 || UL 60950-1
