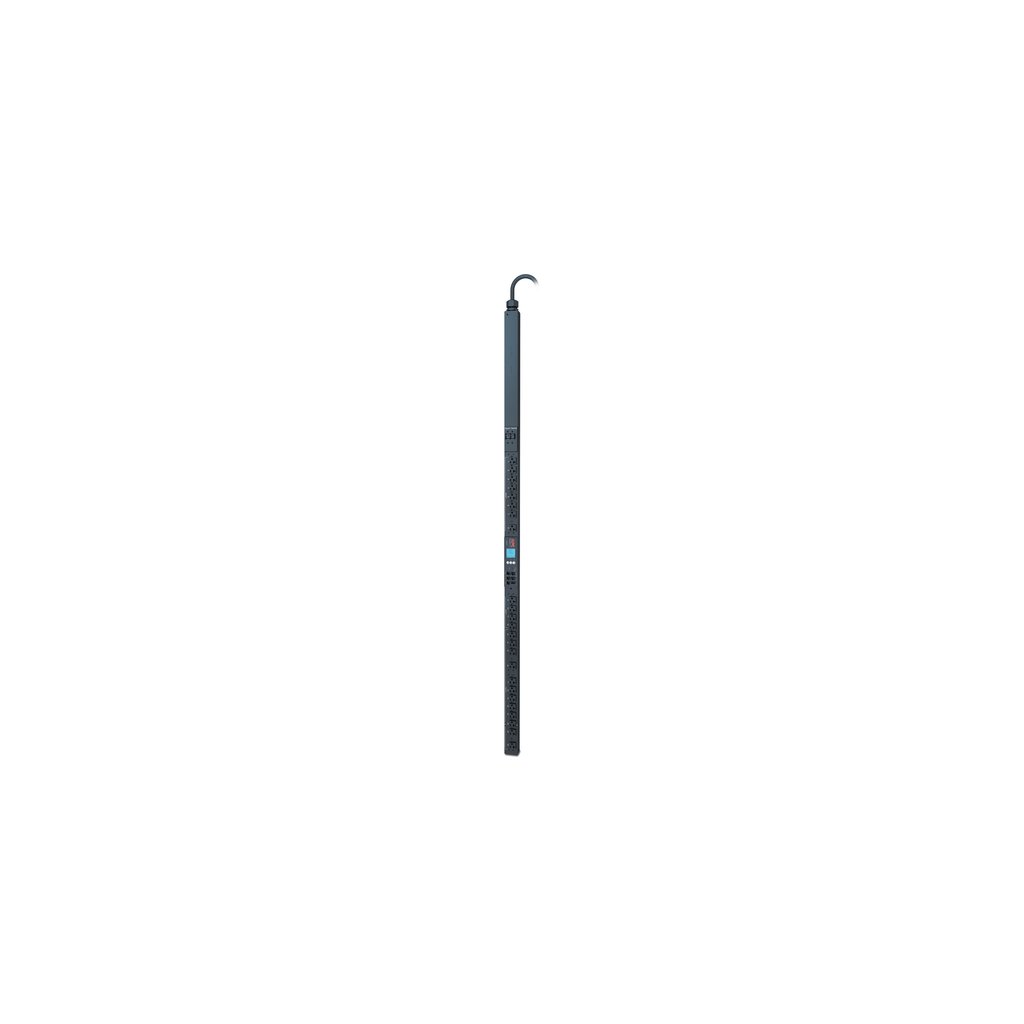

APC Rack PDU, 2G, switched, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets

• Number Of Cables: 1
• Cable Length: 9.84 ft
• Main Input Voltage: 100 V || 120 V
• Number Of Rack Unit: 0U
• Provided Equipment: Installation guide || Rack Mounting brackets || Serial configuration cable || Safety guide

Contractual warranty

• Warranty: 2 years repair or replace

Environmental

• Storage Relative Humidity: 5-95 %
• Ambient Air Temperature For Operation: -5-60 °C
• Storage Altitude: 0-50000 ft
• Ambient Air Temperature For Storage: -25-65 °C
• Relative Humidity: 5-95 %
• Operating Altitude: 0...10000 ft

Physical

• Height: 179.1 cm
• Net Weight: 7.85 kg
• Mounting Location: side
• Mounting Mode: not rack-mountable
• Color: Black
• Mounting Position: vertical
• Width: 5.5 cm
• Depth: 4.6 cm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1612033_EN
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Lead Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Optimized Energy Efficiency: Energy efficient product
• Circularity Profile: ENVEOLI1612033_EN
• Eu Rohs Directive: Compliant

Input

• Input Frequency: 50/60 Hz
• Line Rated Current: 24 A

Overview

• Lead Time: Usually in Stock
• Presentation: APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Conformance

• Product Certifications: cUL Listed || PSE || UL Listed
• Standards: FCC Part 15 class A || ICES-003 || UL 60950-1
