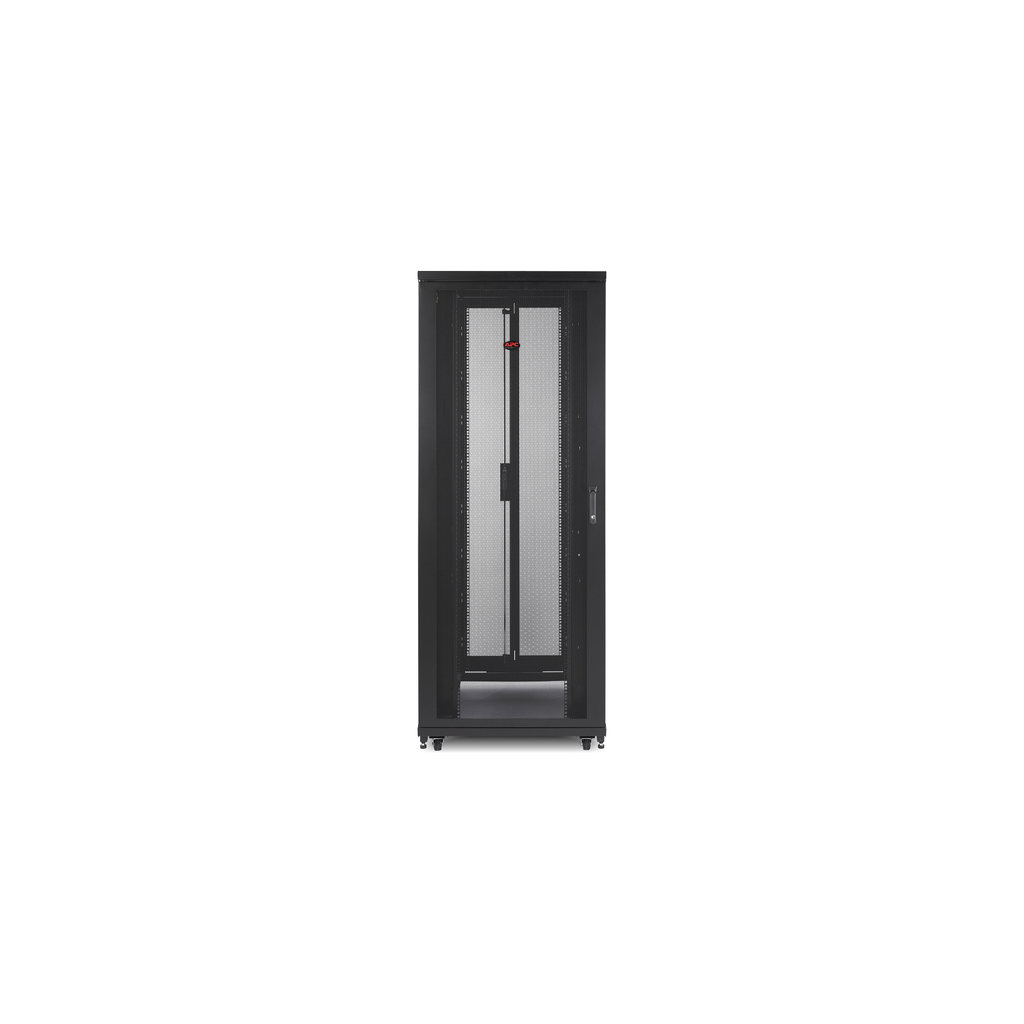

NetShelter SV 48U 800mm Wide x 1200mm Deep Enclosure with Sides Black

• Number Of Rack Unit: 48U
• Provided Equipment: Baying hardware || Doors || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || 4 x Bolt down brackets || Roof || Side Panels || Unpacking sheet

Contractual warranty

• Warranty: 5 year repair or replace

Physical

• Height: 232.4 cm
• Mounting Mode: not rack-mountable
• Color: Black
• Rack Width: 19"
• Width: 80 cm
• Depth: 120 cm
• Net Weight: 152.8 kg
• Permanent Permissible Load: 1014 lb(US) dynamic || 2205 lb(US) static
• Marking: 14 gauge EIA mounting rail || 16 gauge front door || 18 gauge post || 16 gauge rear door || 19 gauge roof || 18 gauge side panels

Offer Sustainability

• Circularity Profile: ENVEOLI1512008_V1
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1512008_V1
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Overview

• Lead Time: Usually in Stock
• Presentation: Wide, Deep and Tall Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications. Includes integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. Enclosures are deep to provide additional equipment clearance space or more open space for ease of access in the rear of the enclosure. 48U height for environments that can take advantage of higher spaces and provide more mounting u-spaces at each enclosure footprint.

Conformance

• Standards: UL 2416 || UL 60950-1 || EIA-310E
