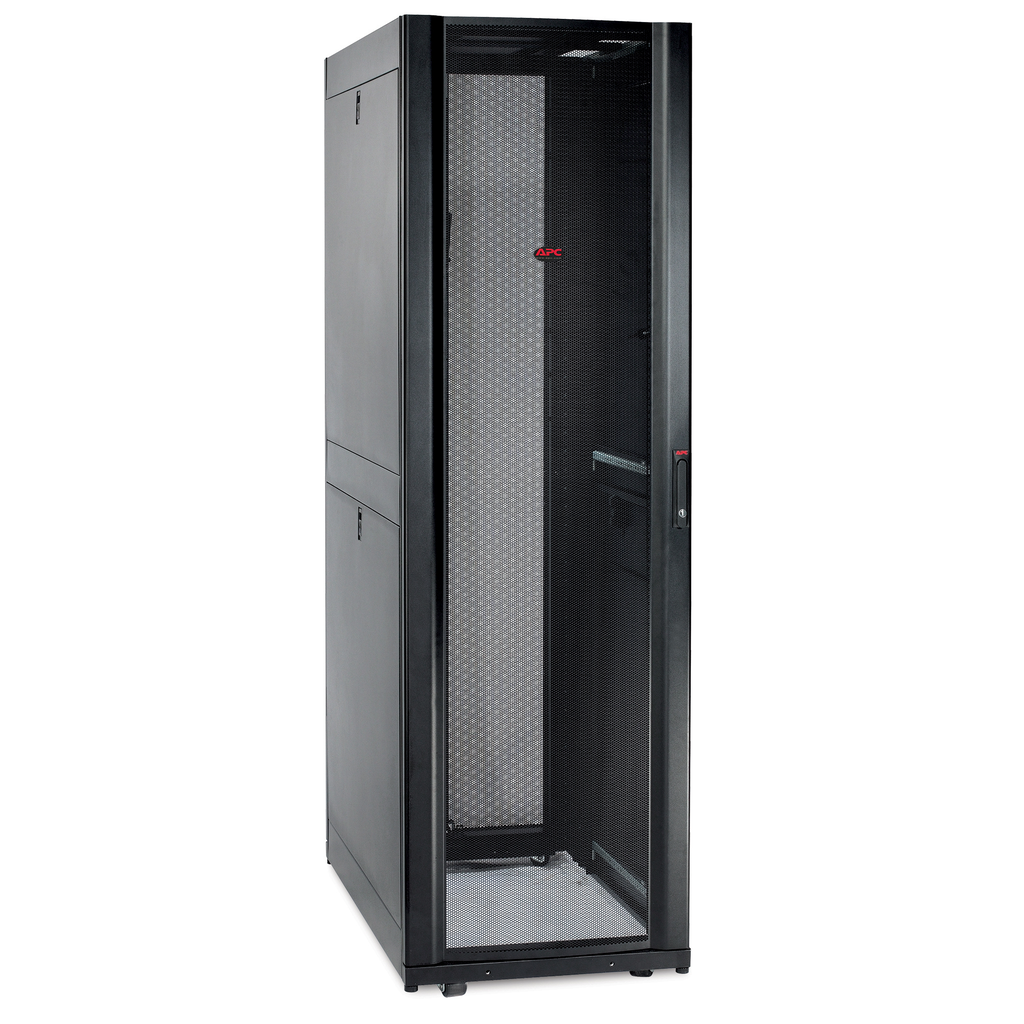

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1070D mm
APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1070D mm
AR3100
Product Description
- Product Or Component Type: rack enclosure
- Provided Equipment: Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels
- Number Of Rack Unit: 42U
Contractual warranty
- Warranty: 5 year repair or replace
Physical
- Height: 199.1 cm
- Rack Width: 19"
- Net Weight: 125.09 kg
- Permanent Permissible Load: 2250 lb(US) dynamic || 3750 lb(US) static
- Marking: 14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 18 gauge rear door || 18 gauge roof || 18 gauge side panels
- Mounting Mode: not rack-mountable
- Color: Black
- Width: 60 cm
- Depth: 107 cm
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1512008_V1
- Sustainable Offer Status: Green Premium product
- Take-Back: Take-back program available
- Toxic Heavy Metal Free: Yes
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc: Yes
- Circularity Profile: ENVEOLI1512008_V1
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Overview
- Lead Time: Usually in Stock
Conformance
- Standards: UL 2416 || UL 60950-1 || EIA-310E
