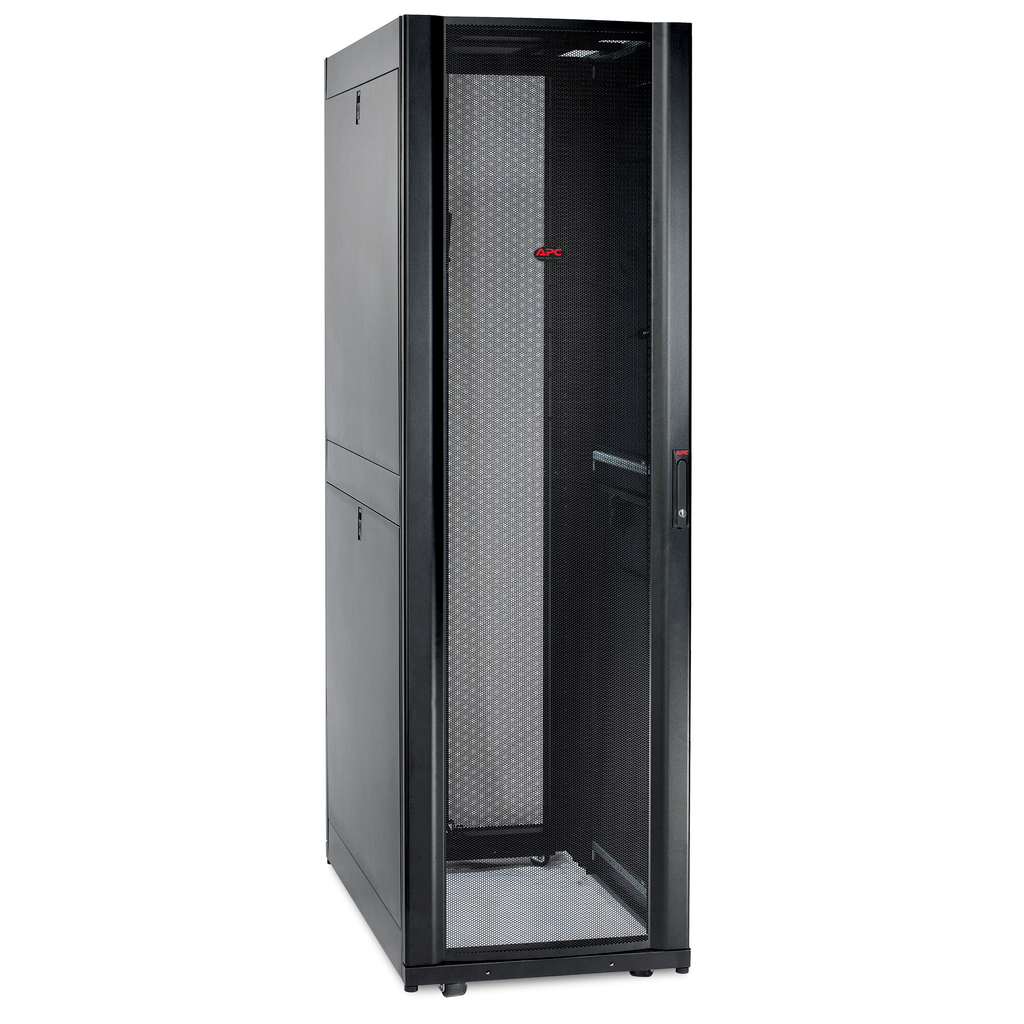

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 600W x 1070D mm

• Number Of Rack Unit: 48U
• Product Or Component Type: rack enclosure
• Provided Equipment: Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels

Contractual warranty

• Warranty: 5 year repair or replace

Physical

• Height: 225.8 cm
• Mounting Mode: not rack-mountable
• Color: Black
• Rack Width: 19"
• Width: 60 cm
• Depth: 107 cm
• Net Weight: 138.23 kg
• Permanent Permissible Load: 2250 lb(US) dynamic || 3750 lb(US) static
• Marking: 14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 18 gauge rear door || 18 gauge roof || 18 gauge side panels

Offer Sustainability

• Circularity Profile: ENVEOLI1512008_V1
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1512008_V1
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Overview

• Lead Time: Usually in Stock
• Presentation: Tall enclosure with 48U spaces for additional equipment. Compact width to optimize data center space. For low to medium density server and networking applications.

Conformance

• Standards: UL 2416 || UL 60950-1 || EIA-310E

CAD

BIM Model

User guide

Catalog

Instruction sheet

Specification for tender

Circularity Profile

Quick start guide

Technical Drawing

Environmental Disclosure

Certificate
