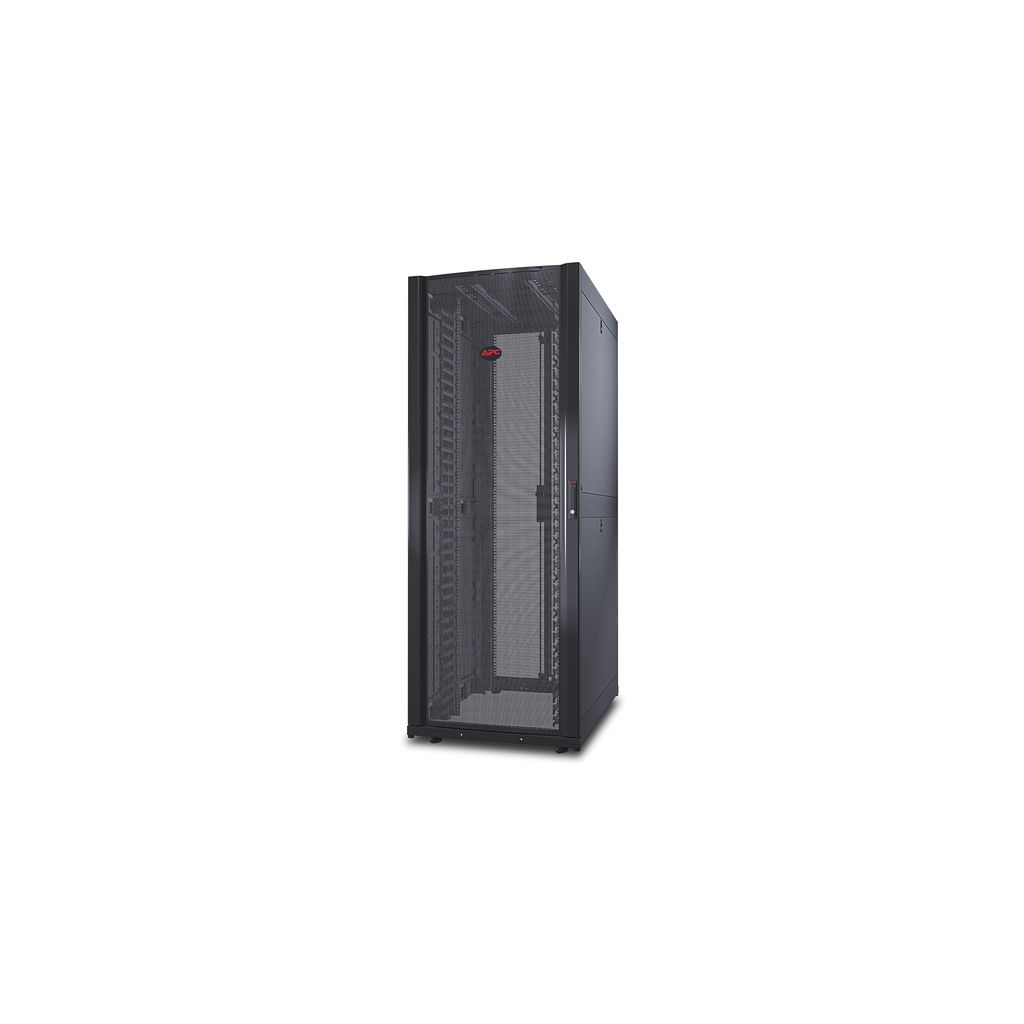

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1070D mm with Casters, Feet, Vertical Cable Managers, Side Panels
APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1070D mm with Casters, Feet, Vertical Cable Managers, Side Panels
AR3140
Product Description
- Number Of Rack Unit: 42U
- Product Or Component Type: rack enclosure
- Provided Equipment: Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels || Vertical cable managers
Contractual warranty
- Warranty: 5 year repair or replace
Physical
- Height: 199.1 cm
- Mounting Mode: not rack-mountable
- Color: Black
- Rack Width: 19"
- Width: 75 cm
- Depth: 107 cm
- Net Weight: 155.95 kg
- Mounting Location: front || rear
- Permanent Permissible Load: 2250 lb(US) dynamic || 3750 lb(US) static
- Marking: 14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 16 gauge rear door || 18 gauge roof || 18 gauge side panels
Offer Sustainability
- Circularity Profile: ENVEOLI1512008_V1
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1512008_V1
- Sustainable Offer Status: Green Premium product
- Take-Back: Take-back program available
- Toxic Heavy Metal Free: Yes
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc: Yes
Overview
- Lead Time: Usually in Stock
- Presentation: NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Conformance
- Standards: UL 2416 || UL 60950-1 || EIA-310E
Spec Sheet
NetShelter SX Visio Stencils Master Pack - JKUR-9FBNVJ_R0_EN.zip
NetShelter SX Solutions for Cisco Catalyst and MDS Networking Switches - JKUR-8F9RN5_R2_EN (pdf)
NetShelter SX Solutions for Arista Networking Switches - JKUR-9M3JGG_R0_EN_SRC (pdf)
AR3140 - NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure - AR3140_-_NetShelter_SX_42U_750mm_Wide_x_1070mm_Deep_Enclosure (dwg)
AR3140J - NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with additional mounting option AR7709 for Japan - KCHY-7YJE2P_R1_EN (pdf)
TYPFLNGMNT - Flange Mount Rail Details-FAQ Document - JSHR-AQ3DUW_R0_EN (pdf)
AR3140-AR7709 - NetShelter SX, 42U, Bottom View with AR7709 for JAPAN - SCUA-9TLQAY_R0_EN (pdf)
TYPFLNGMNT - Flange Mount Rail Details-FAQ Document - TYPFLNGMNT_-_Flange_Mount_Rail_Details-FAQ_Document (dwg)
AR3140-AR7709 - NetShelter SX, 42U, Bottom View with AR7709 for JAPAN - AR3140-AR7709_-_NetShelter_SX_42U_Bottom_View_with_AR7709_for_JAPAN (dwg)
ePEP - Racks & Enclosures - GWOG-8WLNUZ_R3_EN (pdf)
IBC Structural Calculations for Seismic Applications, APC NetShelter SX - AR31XXXXX, AR33XXXXX series enclosures - NetShelter+Revised+March+2022 (pdf)
CAD
NetShelter SX Visio Stencils Master Pack - JKUR-9FBNVJ_R0_EN_SRC.zipNetShelter SX Visio Stencils Master Pack - JKUR-9FBNVJ_R0_EN.zip
Brochure
NetShelter SX Solutions for Arista Networking Switches - JKUR-9M3JGG_R0_EN (pdf)NetShelter SX Solutions for Cisco Catalyst and MDS Networking Switches - JKUR-8F9RN5_R2_EN (pdf)
NetShelter SX Solutions for Arista Networking Switches - JKUR-9M3JGG_R0_EN_SRC (pdf)
BIM Model
SPD_JSHR-AEG7JD_EN - BIM_NetShelter_SX_Series_Rack_Enclosure.rfaCatalog
APC Racks Pocket Guide - 998-21156880_GMA_US_Brochure-2021-0802-+230V+(1) (pdf)Instruction sheet
NetShelter SX Quick Unpacking Instructions - MKEY-98ZJEK_R2_EN (pdf)Circularity Profile
EoLi - Racks & Enclosures - GWOG-8WTP63_R3_EN (pdf)Technical Drawing
AR3140 - NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure - KCHY-7Y3B4Q_R3_EN (pdf)AR3140 - NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure - AR3140_-_NetShelter_SX_42U_750mm_Wide_x_1070mm_Deep_Enclosure (dwg)
AR3140J - NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with additional mounting option AR7709 for Japan - KCHY-7YJE2P_R1_EN (pdf)
TYPFLNGMNT - Flange Mount Rail Details-FAQ Document - JSHR-AQ3DUW_R0_EN (pdf)
AR3140-AR7709 - NetShelter SX, 42U, Bottom View with AR7709 for JAPAN - SCUA-9TLQAY_R0_EN (pdf)
TYPFLNGMNT - Flange Mount Rail Details-FAQ Document - TYPFLNGMNT_-_Flange_Mount_Rail_Details-FAQ_Document (dwg)
AR3140-AR7709 - NetShelter SX, 42U, Bottom View with AR7709 for JAPAN - AR3140-AR7709_-_NetShelter_SX_42U_Bottom_View_with_AR7709_for_JAPAN (dwg)
Environmental Disclosure
ePEP - Racks & Enclosures - GWOG-8WLNUZ_R0_EN_SRC (pdf)ePEP - Racks & Enclosures - GWOG-8WLNUZ_R3_EN (pdf)
Quick start guide
Grounding Instructions - for NetShelter SX/SV/AV Cabinets - JSAI-85CPVG_R1_EN (pdf)User guide
NetShelter SX Networking Enclosure - Unpacking, Installation, and Customization Manual - 990-3548D_EN (pdf)Certificate
Office of Statewide Health Planning and Development (OSHPD) Preapproval for NetShelter SX Products in commercial and seismic rack applications - OPM-0255 (pdf)IBC Structural Calculations for Seismic Applications, APC NetShelter SX - AR31XXXXX, AR33XXXXX series enclosures - NetShelter+Revised+March+2022 (pdf)
