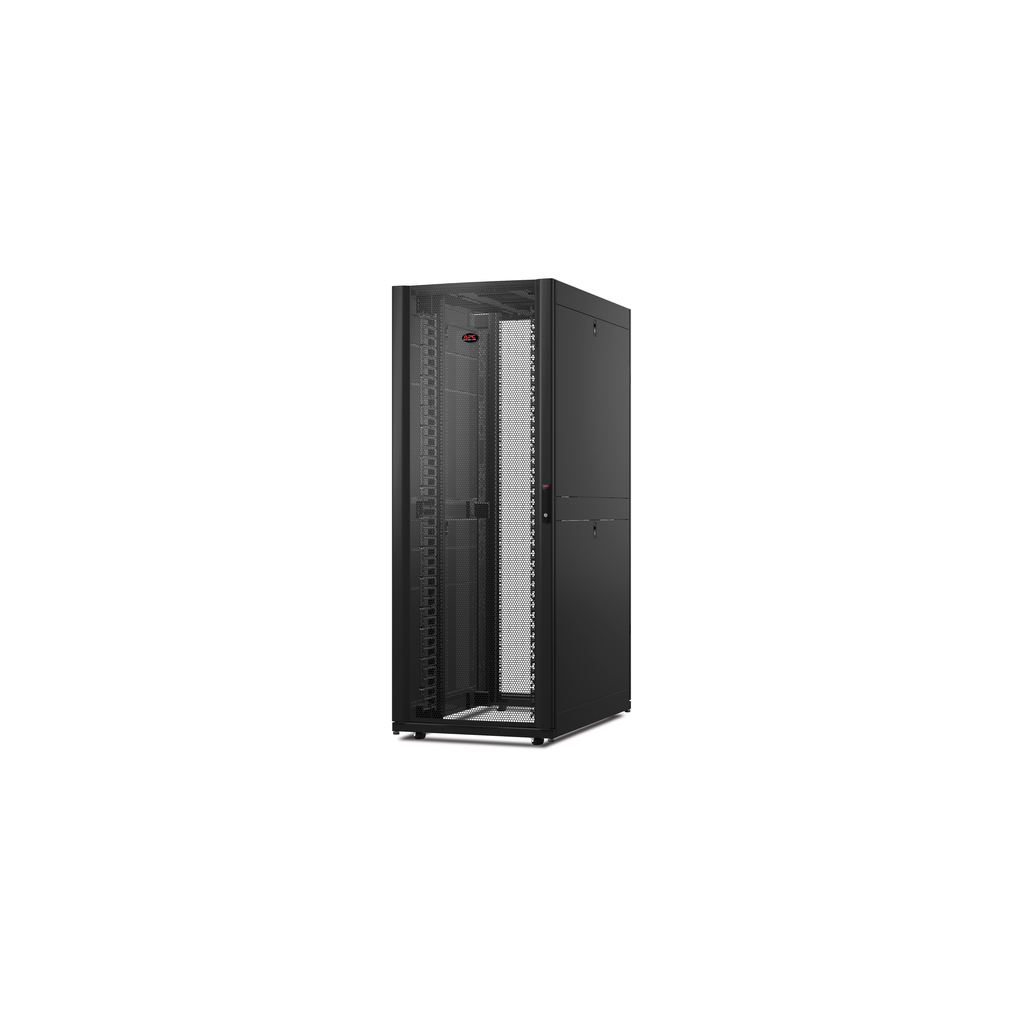

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1200D mm

• Number Of Rack Unit: 42U
• Product Or Component Type: rack enclosure
• Provided Equipment: Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels || Vertical cable managers

Contractual warranty

• Warranty: 5 year repair or replace

Physical

• Height: 199.1 cm
• Mounting Mode: not rack-mountable
• Color: Black
• Rack Width: 19"
• Width: 75 cm
• Depth: 120 cm
• Net Weight: 161.36 kg
• Permanent Permissible Load: 2250 lb(US) dynamic || 3750 lb(US) static
• Marking: 14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 16 gauge rear door || 18 gauge roof || 18 gauge side panels

Offer Sustainability

• Circularity Profile: ENVEOLI1512008_V1
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1512008_V1
• Sustainable Offer Status: Green Premium product
• Take-Back: Take-back program available
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes

Overview

• Lead Time: Usually in Stock
• Presentation: NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.

Conformance

• Standards: UL 2416 || UL 60950-1 || EIA-310E
