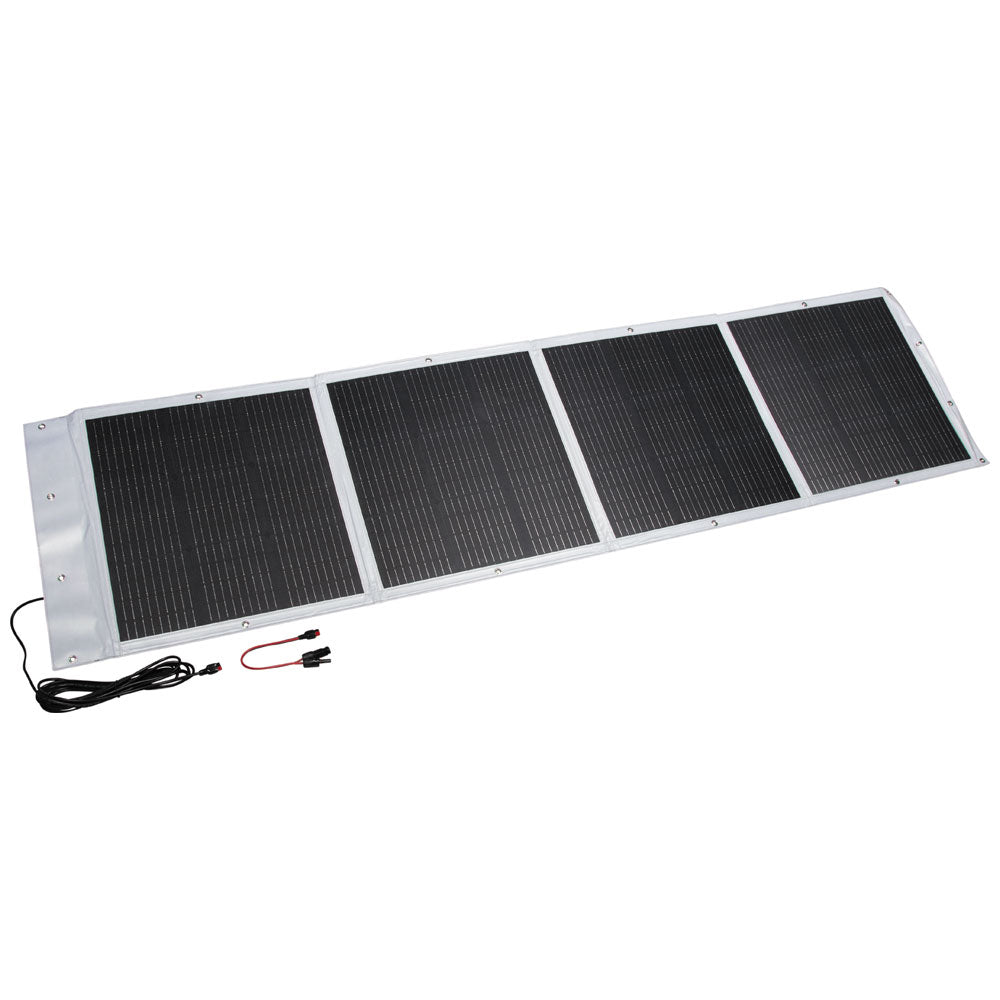

200W Portable Solar Panel

Klein™s 200W Foldable Solar Panel harnesses the sun™s power to keep the job running. A quick and easy way to charge your power banks, power stations, and portable batteries with the built-in extended length DC / APP® compatible cable. Simply recharge your USB devices with the integrated USB port. This portable and versatile panel can be chained with a second panel to collect even more power from the sun, then simply fold and store away.

• 200W max power output to extend power station runtime in the field
• Up to 400W output when chained with another 200W panel for faster off-grid recharge times
• Reflective fabric on front and rear to help locate panels in the dark
• Carrying case and IP65 rated panel helps keep the panel protected in inclement weather
• Kickstands angle the panel to help maximize the surface exposed to the sun, and LED lights indicate the level of power output
• Four monocrystalline panels fold, creating a protective, compact case for easy storage and versatility
• Integrated USB-A port for direct charging of USB devices
• Long reaching 16.4-Foot (5 m) cable conveniently fits in the integrated storage pocket
• APP® compatible connector to MC4 adapter, sold separately (Cat. No. 29215)
• Replacement carrying case (Cat. No. 29216) for the 200W Portable Solar Panel, sold separately

• Warning: Read, understand, and follow the instruction manual to ensure safe operation.
• Warning: Failure to observe these warnings can result in risk of fire, electric shock, serious injury, and/or property damage.
• Warning: Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.
• Warning: Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.
• Warning: Estimated times and charges are approximate, and not additive, and may vary by application and ambient environmental conditions and were determined based on controlled experiments.
• Weather Resistant: IP65
• Input Port: APP® compatible Input
• Included: Solar Panel; USB-A Output Port
• Overall Width: 2" (5.1 cm)
• Voltage: 19.8 VDC Maximum
• Application: Solar Panel, Charges Power Banks, Portable Batteries, Personal Electronics
• Overall Height: 23.07" (58.6 cm)
• Overall Length: 91.34" (232 cm)
• Package Quantity: 1
• Amperage: 10.8 Amps
• Standard: RoHS, CE, EMC, REACH, FCC
• Special Features: Adjustable Shoulder Strap, Reinforced Handle, Kickstands, Solar Power Indicator Lights, Chain 2 Solar Panels (up to 400 W)
• Operating Temperature: 32° to 185°F (0° to 85°C)
• Output Port: APP® compatible: 24.6V/10.8A, USB-A: 5V/3.0A
• Type: Monocrystalline
• Wattage: 200W
• Material: Monocrystalline Silicon
• Cable Size: 16 AWG
• Weight: 18 lb (8.2 kg)
• Number of Panels: 4
