Compact Green Planar Laser Level

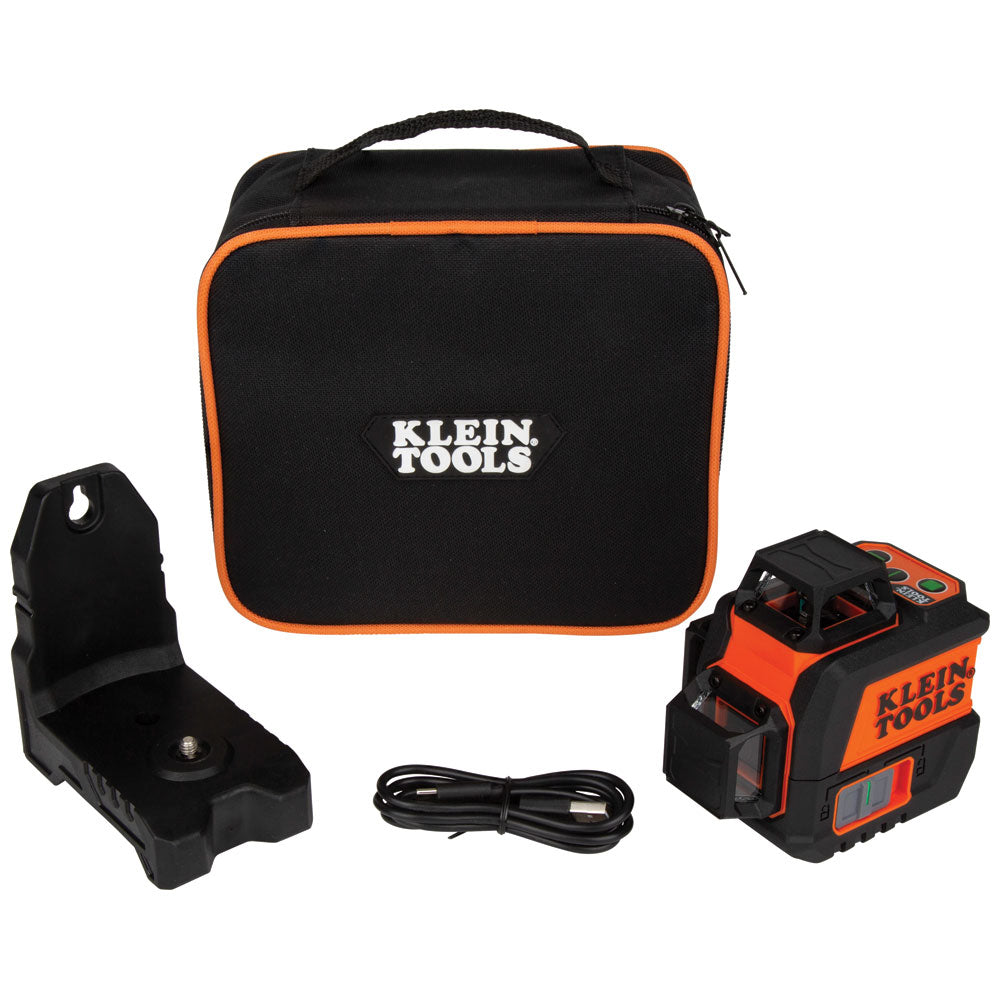

The Klein Tools™ Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ≤1mW @ 508-530nm).

• Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams
• Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
• High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
• Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles
• Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
• More than 6-Hour runtime provides lasers power for all day use
• Durable overmold design that is IP54 rated protects the laser level from water and dust

• Warning: Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• Warning: Do not use the instrument if it appears to be damaged.
• Warning: Do not modify the instrument in any way, as to do so could result in emission of hazardous laser.|Do not modify the instrument in any way, as to do so could result in emission of hazardous laser.
• Warning: Lithium Battery Package
• Contained in Product: Drop Protection
• 3' (1 m): Low Battery Indicator
• Yes: Transit Locking Mechanism
• Yes: Lithium Content (Watt Hours)
• 13.32 Wh: Package Quantity
• 1: Magnet Type
• Rare Earth - Neodymium: Overall Length
• 4.2" (10.7 cm): Number of Beams
• 3: Pulse Mode
• No: Laser Color
• Green: Battery Weight
• 72 g: Battery Voltage
• 3.7V: Plumb Laser
• No: Number of Lithium-Ion Cells
• 2: Low Battery Alarm
• Yes: Ingress Protection
• IP54: Water and Dust Resistant: Material
• PC+ABS+TPE: Battery Life
• 6 hr: Bag or Case
• Soft Case: Overall Width
• 3.2" (8.1 cm): Batteries
• Lithium-Ion: Lithium Content (mAh)
• 3600 mAh: Overall Height
• 4" (10.2 cm): Accuracy
• 33' (10m): Type of Vials
