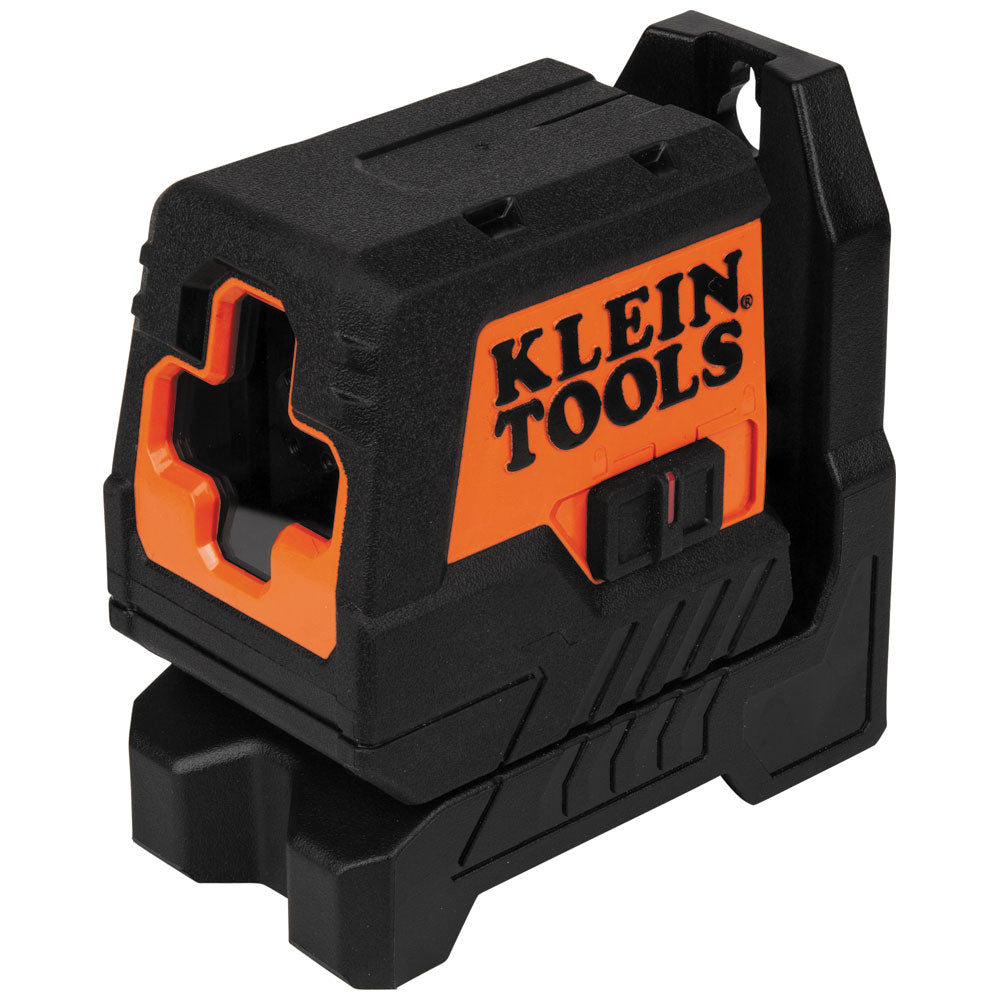

Red Mini Cross-Line Laser Level

The Klein Tools Mini Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals with over 18 hours of runtime. This level provides a reliable pendulum self-leveling system with red laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust, Klein™s Mini Cross-Line Laser Level enables a multitude of alignment and layout applications.

• Self-Leveling Red Laser Level has an easy-to-read bright red horizontal and vertical line with a working range of 35 feet (10.7 m)
• Projects horizontal and vertical lines to address various alignment tasks
• Compact and lightweight design is easy to use in tight areas and to store when not in use
• High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
• Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
• Over 18 hours of runtime provides enough laser power to ensure extended all day use
• Durable overmold design that is IP54 rated protects the laser level from water and dust

• Warning: Laser Radiation: Do Not Stare Into Beam.
• Warning: Class II Laser Product.
• Warning: See instruction manual for additional warnings.
• Warning: See instruction manual for additional warnings.
• Battery Life: 18 hr
• Number of Vials: 0
• Weight: 14 oz (397 g)
• Maximum Distance: 35' (10.7 m)
• Included: Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp; 2 x AA 1.5V Alkaline Batteries
• Bag or Case: Soft Case
• Laser Wavelength: ≤ 1mW 630 - 642 nm
• Batteries: 2 x AA
• Magnet Type: Rare Earth - Neodymium
• Overall Height: 4" (10.2 cm)
• Drop Protection: 3' (1 m)
• Laser Color: Red
• Laser Safety: Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
• Overall Width: 3.2" (8.1 cm)
• Accuracy: +/- 3/16" per 33' (10 m)
• Material: PC + ABS + TPE
• Overall Length: 4.2" (10.7 cm)
• Ingress Protection: IP54: Water and Dust Resistant
• Battery Voltage: 1.5 V
• Plumb Laser: No
• Battery Type: Alkaline
• Number of Beams: 2
• Application: Self-Leveling Laser Alignment Tool
• Transit Locking Mechanism: Yes
