Digital Multi-Tester, Multimeter with Receptacle Tester

Klein Tools' ET270 is an auto-ranging digital multi-tester that measures AC/DC voltage, resistance, continuity, and performs a battery test. It also tests wiring conditions in standard 120VAC and GFCI electrical receptacles and inspects North American GFCI devices. Comes with Right-Angle Test Leads, Receptacle Test Cord, Instructions, and all required batteries.

• Digital multimeter is auto-ranging and measures AC/DC voltage, resistance, audible continuity, and performs 9V and 1.5V battery tests
• Detects and identifies common wiring faults in standard and GFCI electrical outlets
• Inspects GFCI devices, including time to trip the device
• FIND mode indicates which breaker corresponds to a given receptacle
• Features include backlit display, data hold, default to auto-range with option for manual-range; max/min
• Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
• Built to withstand a 6.6-Foot (2 m) drop, this meter is designed to be durable and reliable even in demanding working environments

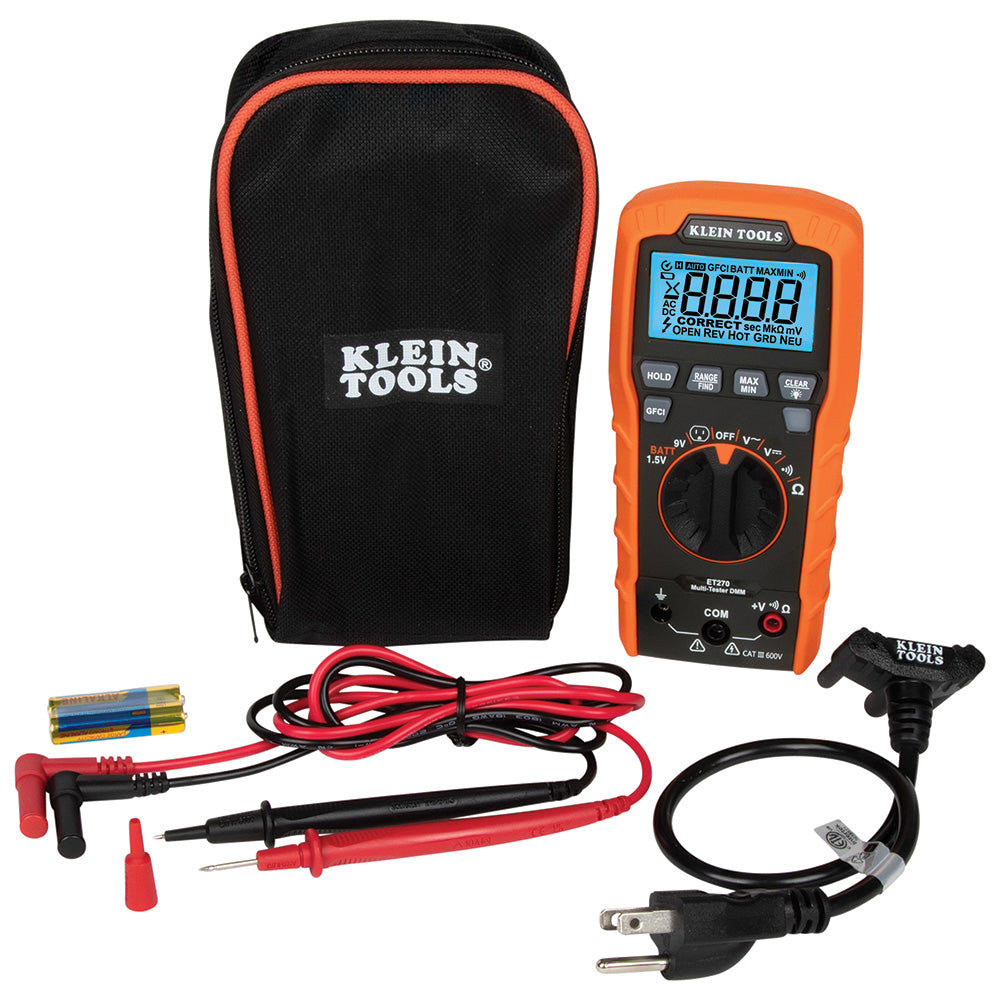

• Digital Multimeter comes with test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch

• Warning: Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Warning: Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Warning: Before each use verify meter operation by measuring a known voltage or current.
• Warning: Before each use verify meter operation by measuring a known voltage or current.
• Voltage: 600V AC/DC
• Overall Width: 3.13" (7.9 cm)
• Batteries: 2 x AAA
• Application: Testing and Measuring Voltage; Detects and Identifies Common Wiring Problems in GFCI Receptacles
• Display: 4000 Count LCD
• Weight: 1.32 lb (0.6 kg)
• Type: Digital Multimeter and GFCI Receptacle Tester
• Ohms (Resistance): 40MΩ
• Drop Protection: 6.6' (2 m)
• Included: Digital Multimeter; Right-Angle Test Leads; Receptacle Test Cord; Batteries; User Manual; Storage Pouch
• Standard: CAT III 600V, Class 2, Double insulation
• Frequency: 50 to 60Hz
• Overall Height: 1.84" (4.5 cm)
• Color: Orange/ Black
• Overall Length: 6.41" (16.3 cm)
• Functions: AC/DC Voltage; Resistance; Continuity; Battery Test; Finds Breaker to Corresponding Receptacle; Shows Amount of Time it Takes to Trip GFCI; Detects and Identifies Common Wiring Problems in GFCI Receptacles
• Material: ABS and Electrical Components
• Special Features: Data Hold; Auto-Range with Option for Manual-Range; Min/Max Values; Backlight
• Accuracy: 65°F to 83°F (18°C to 28°C): +/- (% of Reading + Number of Least Significant Digits)
