Rechargeable Thermal Imager with Wi-Fi
Rechargeable Thermal Imager with Wi-Fi
TI270
Available to Order
Couldn't load pickup availability
Product Description

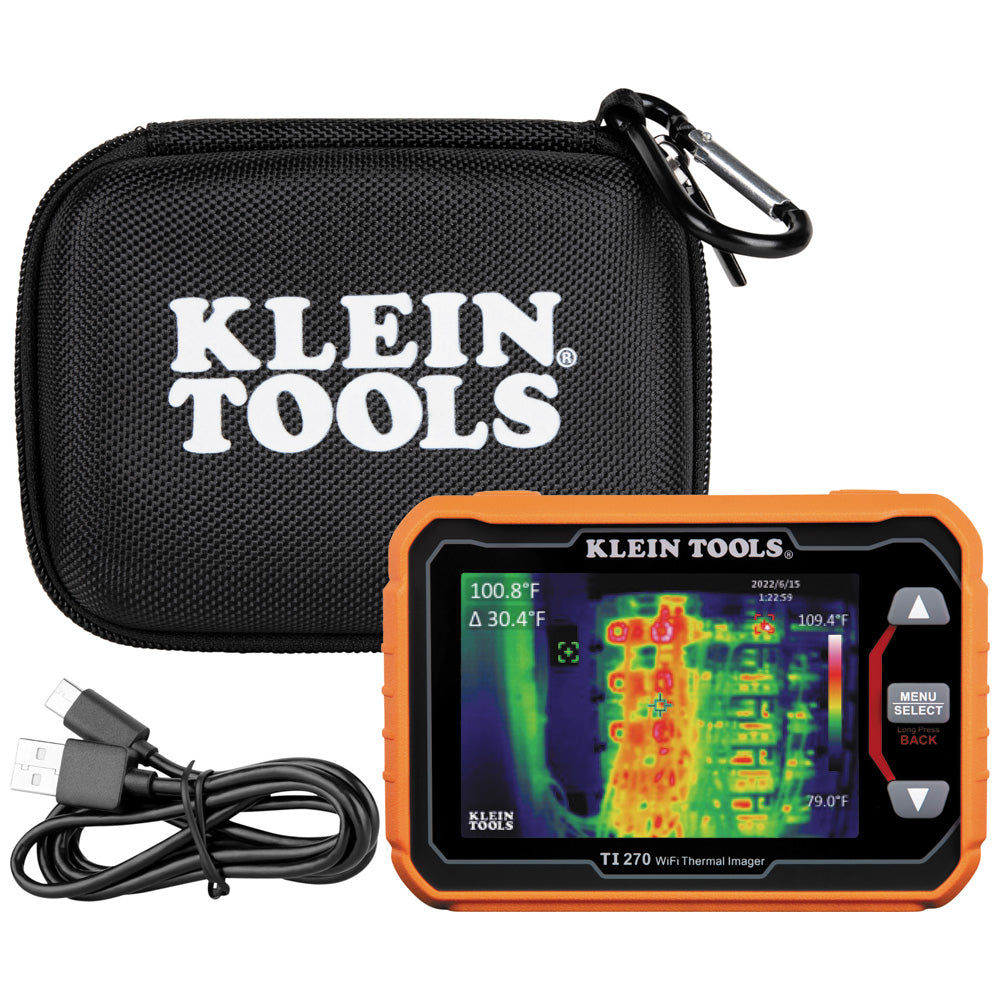

The Klein Tools TI270 is a high resolution, Wi-Fi enabled, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 10,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.
- Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
- Easily capture, store and share thermal images with Wi-Fi capabilities
- User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
- Adjustable emissivity from 0.01 to 0.99
- Select color palettes to best capture the event; ironbow, rainbow, or grayscale
- Rechargeable lithium-ion battery
- App is available for free in Google Play™ store and in the App Store
- Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
- Durable 6.6-Foot (2 m) drop test protection
- Warning: Read, understand and follow all instructions, cautions and warnings attached to and /or packed with device before each use.
- Warning: Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
- Overall Width: 1.06" (3 cm)
- Photo Capture: Yes and Wi-Fi Data Transfer
- Emissivity: 0.01 to 0.99, Adjustable
- Battery Type: Lithium-Ion
- Maximum Frames per Second: <9 Hz
- Type: Thermal Imager
- Laser Sighting: No
- Standards: CE and UKCA
- Display Resolution: 480 x 320 Pixels
- Display: 3.5" (8.9 cm) TFT LCD
- Overall Height: 4.48" (11.4 cm)
- Lithium Content (mAh): 2000 mAh
- Lithium Battery Package: Contained in Product
- Color Palettes: Ironbow, Rainbow, Grayscale
- Overall Length: 3.1" (8 cm)
- Number of Lithium-Ion Cells: 1
- Batteries: Lithium-Ion
- Sensor Resolution: 10,800 Pixels
- Application: View Hot and Cold Spots for Instant Troubleshooting
- Accuracy: ±3°C (±5.4°F) or 3%, Whichever is Greater
- Battery Weight: 34 g
- Sensor Type: VOx Microbolometer
- Thermal Sensitivity: ≤60 mK
- Field of View: 50° +/- 3°
