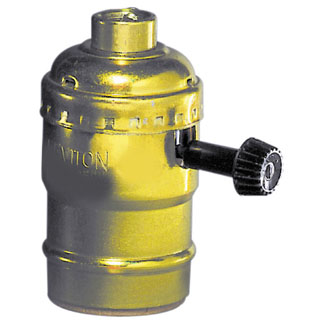

Medium Base Complete, Aluminum Shell Incandescent Lampholder, Removeable Turn Knob, Single Circuit, 1/8 IPS Tapped Bushing w/Set Screw, - Brass

• Country of Origin: Mexico

Product Features

• Circuit: Single Circuit
• Finish: Polished Gilt
• Shell Material: Aluminum
• Voltage: 250 Volt
• Wattage Rating: 250W
• Availability: Distribution
• Color: Brass
• Interior Material: Phenolic
• Knob Material: Thermoplastic
• Lamp Base: Medium
• Lampholder Type: Shell Lampholders
• Light Type: Incandescent
• Screw Shell Material: Aluminum
• Standards and Certifications: UL/CSA
• Terminal Screws: Brass

Mechanical Specifications

• Termination: 2 Terminal Screws
• Construction: Complete
• Lamp Socket Base: Medium
• Operator Type: Removable Turn Knob
• Pipe Mount: 1/8 IPS Tapped Bushing w/Set Screw
• Sequence: ON-OFF
• Style Name: Electrolier
• Mandrel Thread: 4-36
• Mounting Type: Pipe Mount
• Set Screw Thread: 8-32

Standards and Certifications

• CSA Certified: File LR-1863
• UL Listed: File E3810
