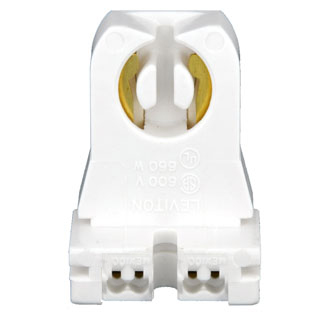

Medium G13 Base, Bi-Pin, Linear Fluorescent Lampholder, Low Profile, Slide-On, Turn-Type, Quick-Connect 18AWG Solid or Str. Tinned - White

• RoHS Compliant: Yes

Product Features

• Contact Type: Turn-Type
• Mounting Type: Slide-On
• Panel Thickness: 18-20 Ga. Panel
• Rated Wattage: 660W
• Termination: Quick-Connect 18AWG Solid or Str. Tinned
• Availability: Distribution
• Body Material: Thermoset
• Color: White
• Contact Material: Copper-Alloy
• Lamp Base: Medium
• Lamp Contacts: Bi-Pin
• Lampholder Type: Linear
• Light Type: Fluorescent
• Standards and Certifications: UL/CSA/NOM
• Style Name: Low Profile
• Warranty: 1 Year Limited

Mechanical Specifications

• Voltage: 600 Volt
• Wire Strip Length: 3/8 Inch

Standards and Certifications

• CSA Certified: File LR-5863
• NOM Certified: 057
• UL Listed: File E5833
