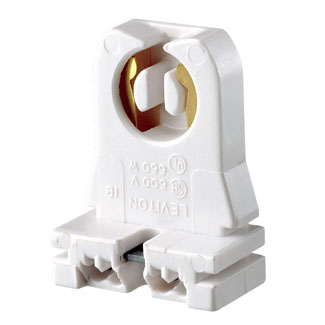

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Slide-On, Turn-Type, Captive Nut Screws Packed Bulk, Quickwire 18AWG Solid or Str Tinned - White Captive Nut Screws Packed Bulk

• RoHS Compliant: Yes

Mechanical Specifications

• Availability: Distribution
• Color: White
• Contact Type: Turn-Type
• Mounting Type: Slide-ON
• Panel Thickness: 18-20 Ga. Panel
• Termination: Quickwire 18AWG Solid or Str. Tinned
• Body Material: Thermoset
• Contact Material: Copper-Alloy
• Nut: 6-32 Zinc-Plated
• Screw: 6-32 X 3/8 Zinc-Plated
• Wire Strip Length: 3/8 Inch

Product Features

• Feature: Captive Nut Screws Packed Bulk
• Lamp Base: Medium
• Lamp Contacts: Bi-Pin
• Lampholder Type: Linear
• Light Type: Fluorescent
• Notes: Captive Nut Screws Packed Bulk
• Rated Wattage: 660W
• Standards and Certifications: UL/CSA/NOM
• Style Name: Low Profile
• Voltage: 600 Volt
• Warranty: 1 Year Limited

Standards and Certifications

• CSA Certified: File LR-5863
• NOM Certified: 057
• UL Listed: File E5833
