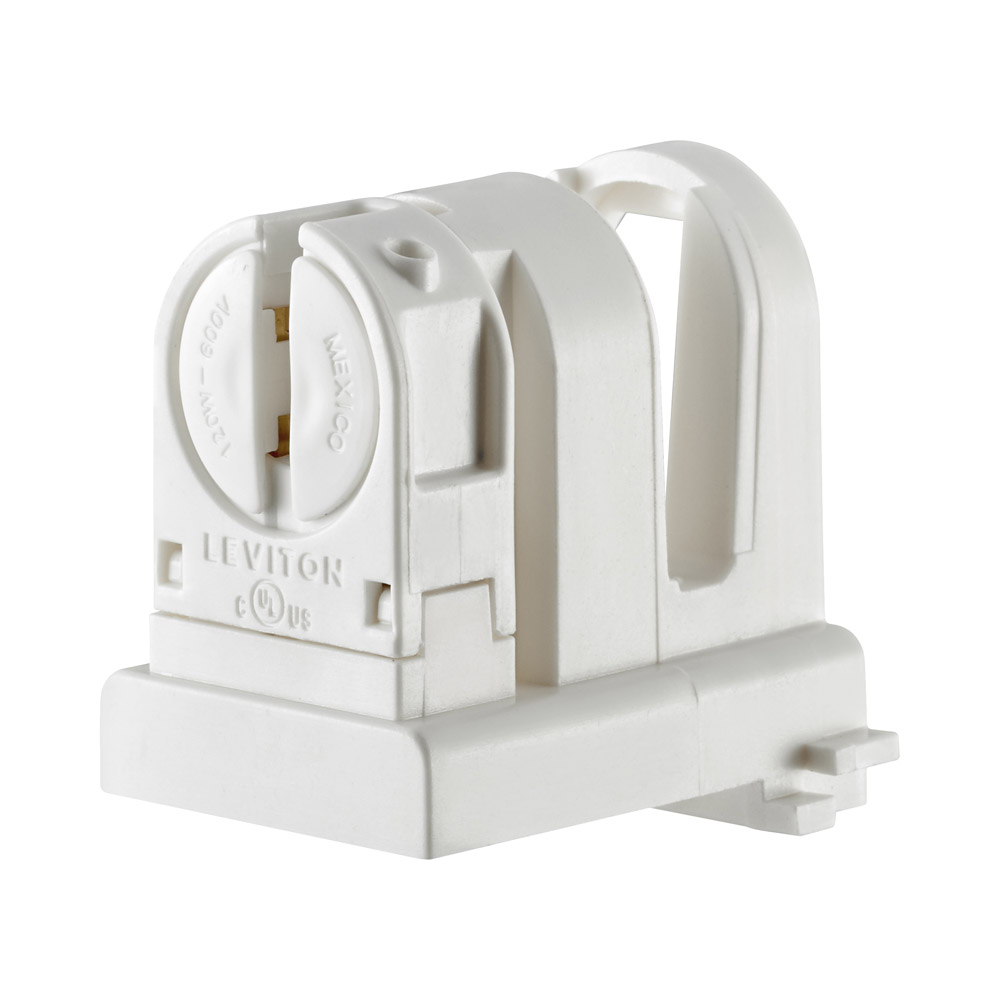

Medium to Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Long T-8 to T-5 Adapter, Slide-On, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

• Simple, cost-effective solution enables OEM's to incorporate miniature bi-pin T-5 lamps into existing T-8 fixture design
• No change in socket bar tooling required
• Fits existing slide-on T-8 lampholder cutouts and compensates for variations in T-5 lamp lengths
• 4-position, positive-stop lamp-lock socket makes it simple for end users to relamp in service
• Long and Short lengths available
• Available shunted and non-shunted

• Country of Origin: Mexico

Product Features

• Contact Type: Lamp-Lock
• Mounting Type: Slide-On
• Panel Thickness: 20 Ga. Panel
• Rated Wattage: 660W
• Termination: Quickwire 18AWG Solid or Str. Tinned
• Availability: OEM Only
• Body Material: Thermoplastic
• Color: White
• Contact Material: Copper-Alloy
• Lamp Base: Medium to Miniature
• Lamp Contacts: Bi-Pin
• Lamp Type: T5
• Lampholder Type: Linear
• Light Type: Fluorescent
• Standards and Certifications: UL/CSA/NOM
• Style Name: Long T-8 to T-5 Adapter
• Warranty: 1 Year Limited

Mechanical Specifications

• Voltage: 600 Volt
• Wire Strip Length: 3/8 Inch

Standards and Certifications

• CSA Certified: File LR-1863
• NOM Certified: 057
• UL Listed: File E5833
