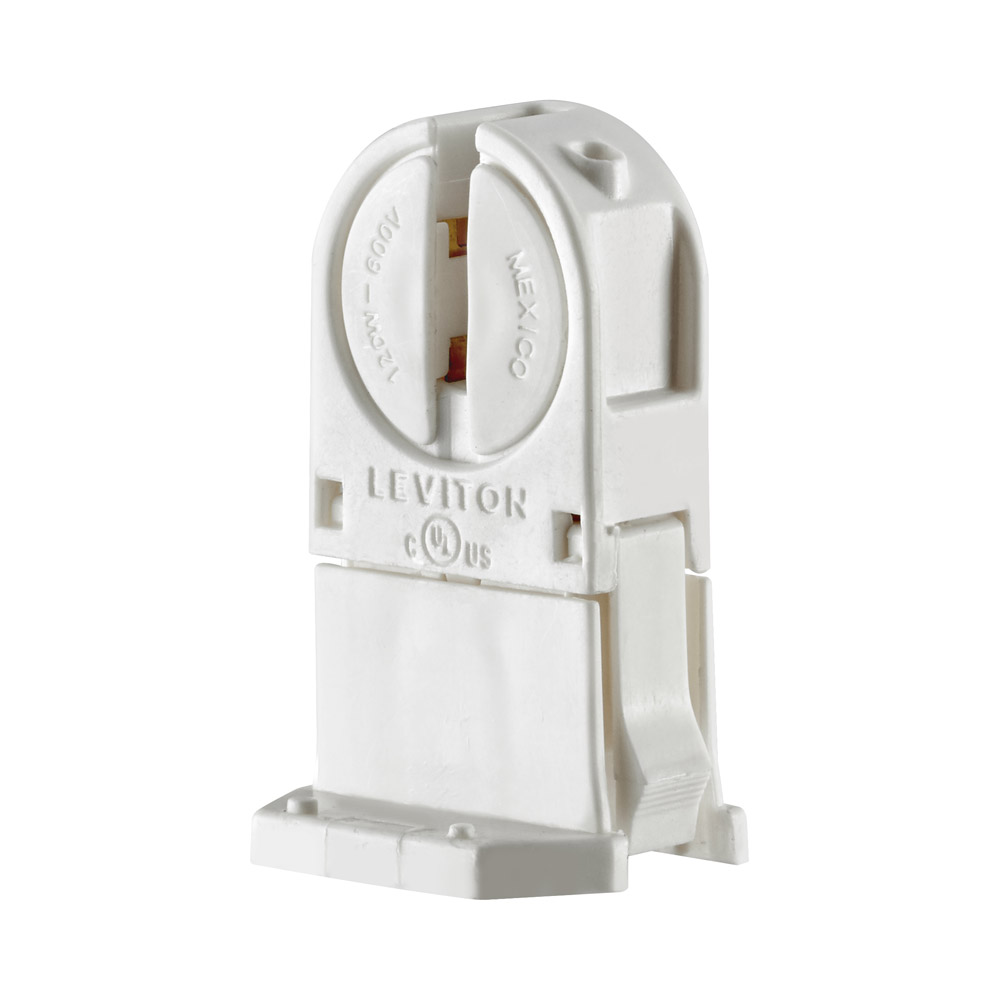

• Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White
1 1

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Tall Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White

Part Number: 13654-TNP

UPC:

Your Price:
$9.17 ea
$9.17 ea
Sold out

Available to Order

Color
View full details

Product Description

  • Country of Origin: Mexico

Product Features

  • Contact Type: Lamp-Lock
  • Mounting Type: Snap-In or Slide-ON
  • Panel Thickness: 22-25 Ga. Panel
  • Rated Wattage: 120W
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: OEM Only
  • Body Material: Thermoplastic
  • Color: White
  • Contact Material: Copper-Alloy
  • Lamp Base: Miniature
  • Lamp Contacts: Bi-Pin
  • Lamp Type: T5
  • Lampholder Type: Linear
  • Light Type: Fluorescent
  • Standards and Certifications: UL/CSA/NOM
  • Style Name: Tall Profile
  • Warranty: 1 Year Limited

Mechanical Specifications

  • Voltage: 600 Volt
  • Wire Strip Length: 3/8 Inch

Standards and Certifications

  • CSA Certified: File LR-1863
  • NOM Certified: 057
  • UL Listed: File E5833
PK-93480-10-02-0J-W.pdf
