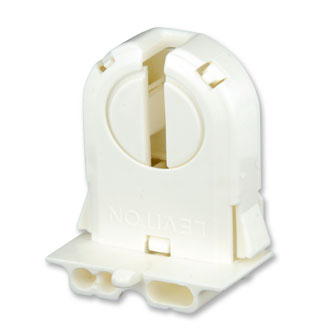

Medium Base, T8-T12 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, Internal Shunt, Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

• Country of Origin: Mexico
• RoHS Compliant: Yes

Product Features

• Contact Type: Lamp-Lock
• Mounting Type: Snap-In or Slide-ON
• Panel Thickness: 22-25 Ga. Panel
• Rated Wattage: 660W
• Termination: Quickwire 18AWG Solid
• Availability: Distribution
• Body Material: Thermoplastic
• Color: White
• Contact Material: Copper-Alloy
• Feature: Internal Shunt
• Lamp Base: Medium
• Lamp Contacts: Bi-Pin
• Lamp Type: T8 - T12
• Lampholder Type: Linear
• Light Type: Fluorescent
• Notes: With Panel Locator Post
• Screw: Panel Locator Post
• Standards and Certifications: UL/CSA/NOM
• Style Name: Low Profile
• Warranty: 1 Year Limited

Mechanical Specifications

• Voltage: 600 Volt
• Wire Strip Length: 3/8 Inch

Standards and Certifications

• CSA Certified: File LR-1863
• NOM Certified: 057
• UL Listed: File E5833
• VDE: Certified to IEC
