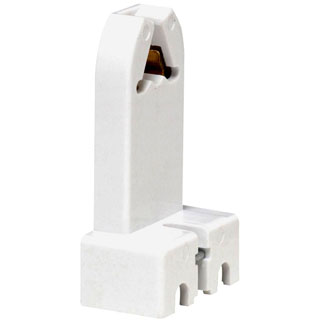

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Pedestal, Screw Mount, Turn-Type, , 2-Screw Terminal - White

• Country of Origin: Mexico
• RoHS Compliant: Yes

Product Features

• Contact Type: Turn-Type
• Mounting Type: Screw Mount
• Rated Wattage: 660W
• Termination: 2 Terminal Screws
• Availability: Distribution
• Body Material: Thermoset
• Color: White
• Contact Material: Copper-Alloy
• Lamp Base: Medium
• Lamp Contacts: Bi-Pin
• Lampholder Type: Linear
• Light Type: Fluorescent
• Nut: 6-32 Zinc-Plated
• Screw: 6-32 X 7/8 Zinc-Plated
• Standards and Certifications: UL/CSA
• Style Name: Pedestal
• Warranty: 1 Year Limited

Mechanical Specifications

• Voltage: 600 Volt

Standards and Certifications

• CSA Certified: File LR-5863
• UL Listed: File E5833
