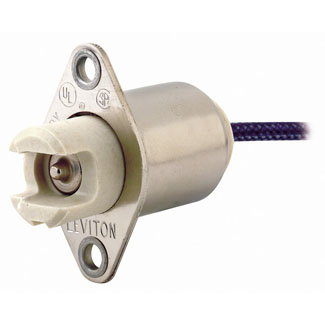

Lampholder, Incandescent, R7s RX7s Base, Plunger, Keyless, Unglazed Porcelain, Flange Mount, Single Circuit

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Access: Back Wired
• Circuit: Single Circuit
• Mounting Type: Front Flange Mtg
• Termination: 18-Inch 18-AWG SEW-2 Wire Lead
• Availability: Distribution
• Body Material: Unglazed Porcelain
• Color: White
• Construction: Plunger
• Contact Material: Nickel-Plated Copper
• Lamp Base: R7s RX7s
• Lamp Socket Base: R7s RX7s
• Lampholder Type: Keyless
• Light Type: Incandescent
• Standards and Certifications: UL/CSA
• Warranty: 1 Year Limited

Mechanical Specifications

• Voltage: 600 Volt
• Wattage Rating: 3000W

Standards and Certifications

• CSA Certified: File LR-5863
• UL Listed: File E13405
