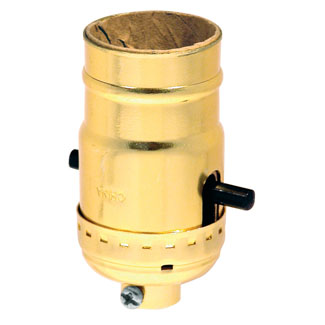

Medium Base Complete, Brass Shell Incandescent Lampholder, Push-Through, Single Circuit, 1/8 IPS Tapped Bushing Less Set Screw, - Brass

• Country of Origin: Mexico

Material Specifications

• Availability: Distribution
• Finish: Polished Brass
• Shell Material: Aluminum
• Color: Brass
• Interior Material: Phenolic
• Pushbar Material: Nylon
• Screw Shell Material: Aluminum
• Terminal Screws: Brass

Product Features

• Circuit: Single Circuit
• Lamp Base: Medium
• Lampholder Type: Shell Lampholders
• Light Type: Incandescent
• Standards and Certifications: UL/CSA/NOM
• Voltage: 250 Volt
• Wattage Rating: 250W

Mechanical Specifications

• Construction: Complete
• Lamp Socket Base: Medium
• Operator Type: Push-Through
• Pipe Mount: 1/8 IPS Tapped Bushing Less Set Screw
• Sequence: ON-OFF
• Style Name: Electrolier
• Termination: 2 Terminal Screws
• Mounting Type: Pipe Mount
• Set Screw Thread: 8-32

Standards and Certifications

• CSA Certified: File LR-1863
• NOM Certified: 057
• UL Listed: File E3810
