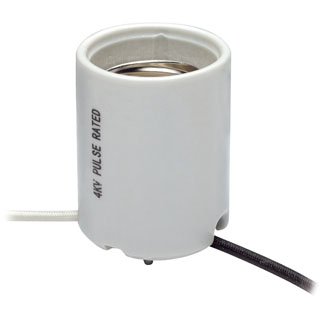

Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Circuit: Single Circuit
• Feature: 4KV-Pulse Rated
• Shell Material: Glazed Porcelain
• Voltage: 600 Volt
• Wattage Rating: 1500W
• Availability: OEM Only
• Center Coil Spring: Stainless Steel
• Color: White
• Contact Material: Nickel-Plated Copper-Alloy
• Lamp Base: Mogul
• Light Type: HID / Mogul
• Screw Shell Material: Nickel-Plated Copper Alloy
• Standards and Certifications: UL/CSA
• Warranty: 1 Year Limited

Mechanical Specifications

• Termination: 12-Inch 14AWG SEW-2 200C Leads
• Access: Back Wired
• Construction: One-Piece
• Lamp Socket Base: Mogul
• Lamp Type: HPS up to 400W
• Mounting Type: 2 8-32 Screws
• Operator Type: Keyless

Standards and Certifications

• CSA Certified: File LR-1863
• UL Listed: File E13402
