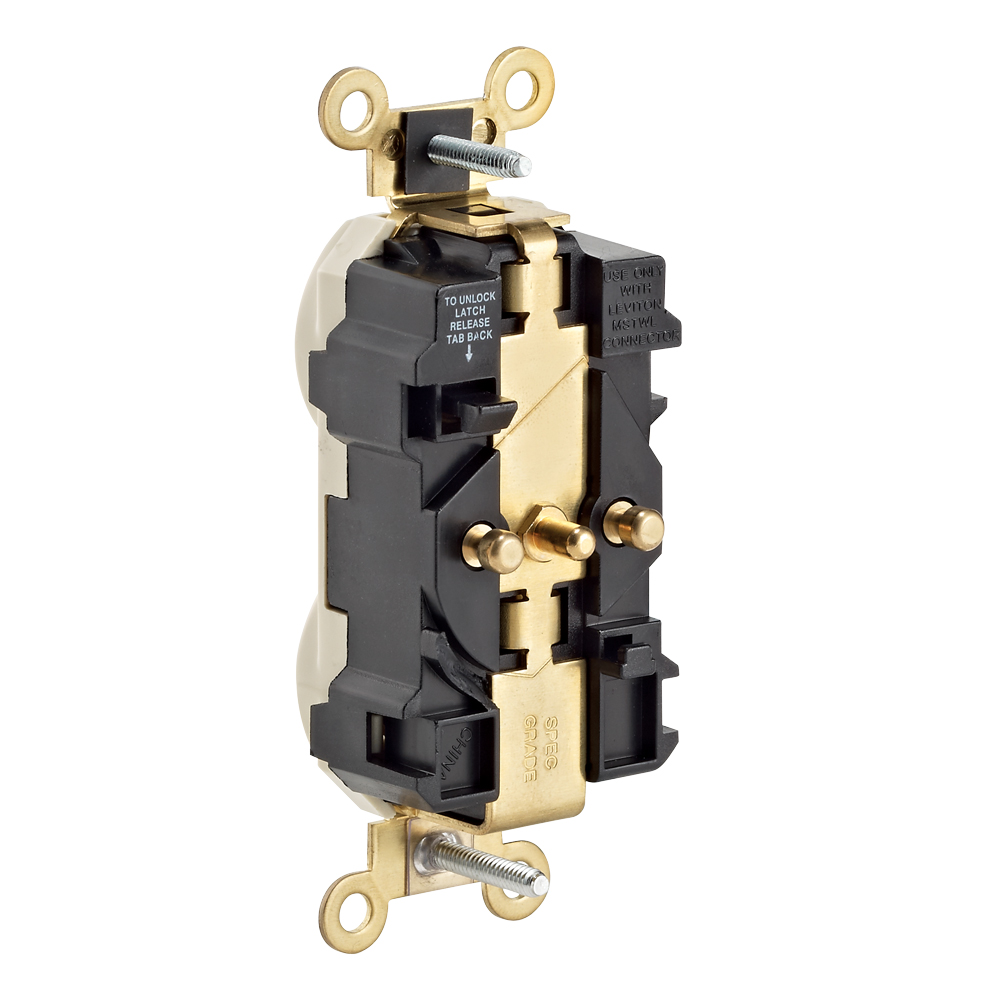

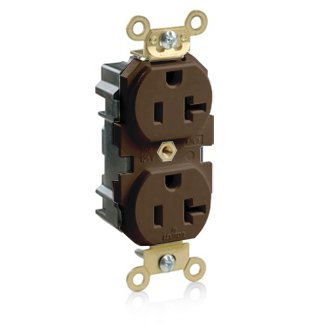

Lev-Lok Duplex Receptacle

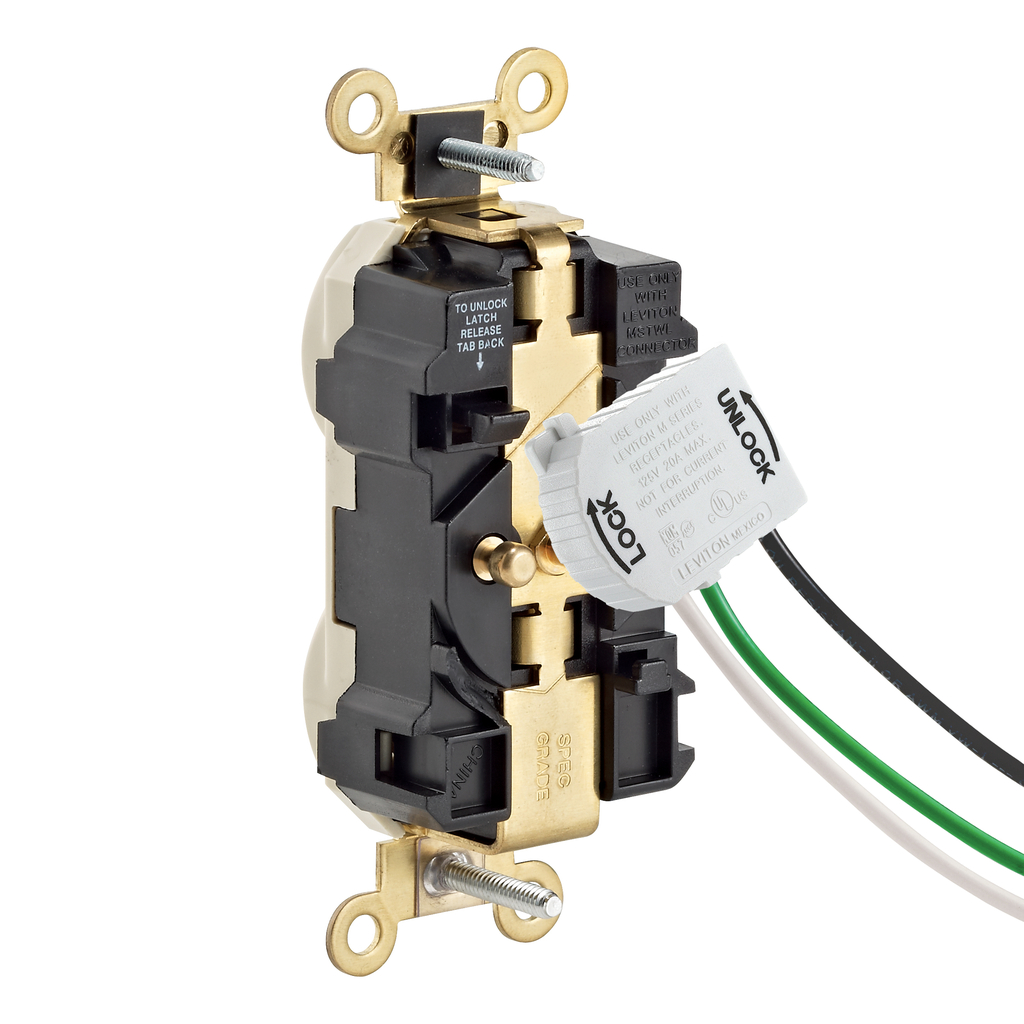

• The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms. Calculate Time & Money Saved with the Lev-Lok Savings Calculator!

NEMA

• WD-1
• WD-6

Color Variations

• Black
• Brown
• Gray
• Ivory
• Light Almond
• Red
• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

AC Horsepower Ratings

• At Rated Voltage: 1 HP
• Horsepower Rating: 1 HP

Electrical Specifications

• Amperage: 20 A
• Current Interrupting: Certified for current interrupting at full rated current
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Maximum Working Voltage: 125V as rated
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Product Features

• Grounding: Self-Grounding
• Strap Material: Brass
• Brand: Lev-Lok
• Color: Brown
• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Extra Heavy-Duty Industrial Specification Grade
• Standards and Certifications: C-UL-US

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -40°C to 60°C

Material Specifications

• Base Material: Nylon
• Bushing: Solid Brass
• Cover Material: Nylon
• Ground Clips: Brass
• Line Contacts: 0.040” Thick Solid Brass
• Locking Pins: Solid Brass
• Mounting Screws: Triple Combination Head, Steel
• Mounting Strap: Brass with integral ground contact
• Yoke: One Piece Brass

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Termination: Modular

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• NOM Certified: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
• cULus: Listed
