Product Description
Patents
- CA2762851
- MX324425
- US9112321
NEMA
- WD-1
- WD-6
Color Variations
- Gray
- Ivory
- Light Almond
- Red
- White
- Country of Origin: Mexico
- RoHS Compliant: Yes
AC Horsepower Ratings
- Horsepower Rating: 1/2 HP
Electrical Specifications
- Amperage: 15 A
- Current Limiting: Full Rated Current
- Dielectric Voltage: Withstands 2000V per UL498
- Grounding: Self-Grounding

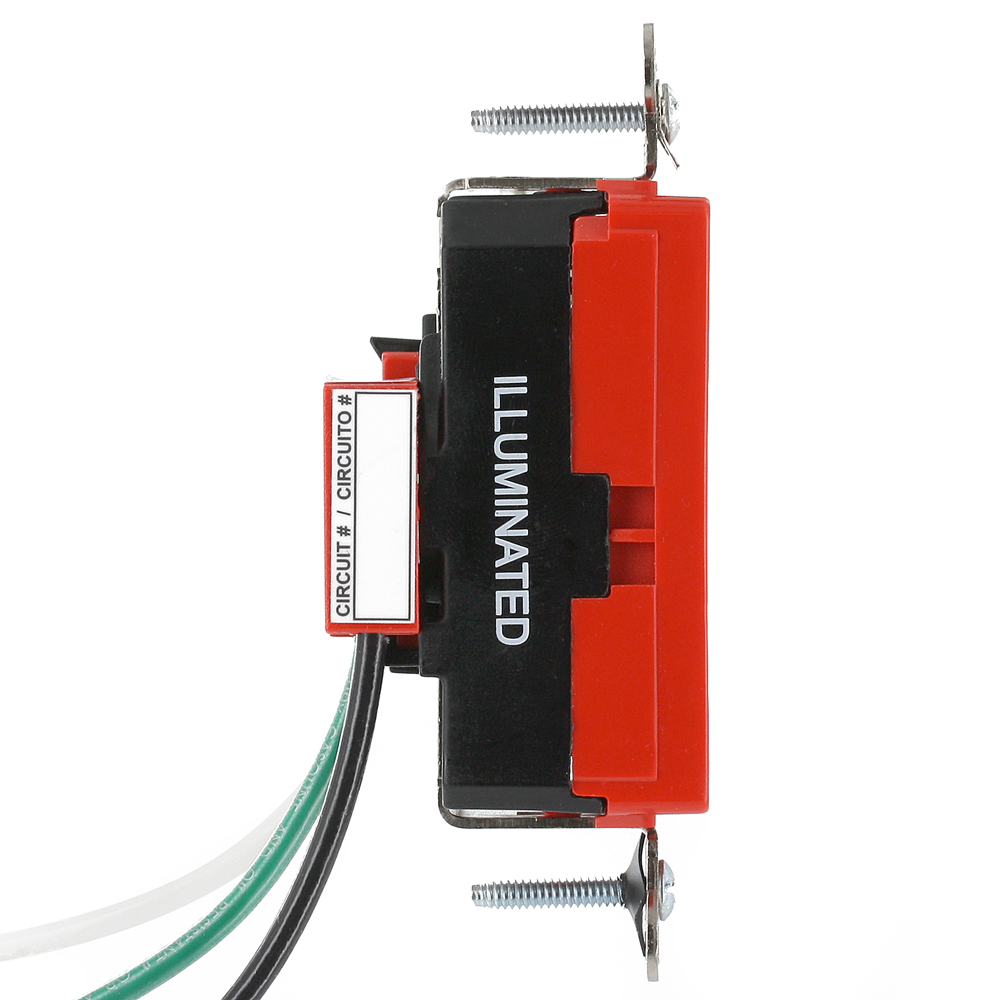

- Illumination: 100,000 HR Green LED's
- Pole: 2
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 125 VAC
- Wire: 3
Environmental Specifications
- Operating Temperature: -40°C to 60°C
Material Specifications
- Body Material: Nylon
- Face Material: Nylon
- Ground Clips: Nickel-Plated Brass
- Line Contacts: 0.040" Brass
- Locking Pins: Solid Brass
- Shutter Mechanism: Delrin® Acetal
- Strap Material: Nickel-Plated Brass
Mechanical Specifications
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Product ID: Markings are permanently marked on device

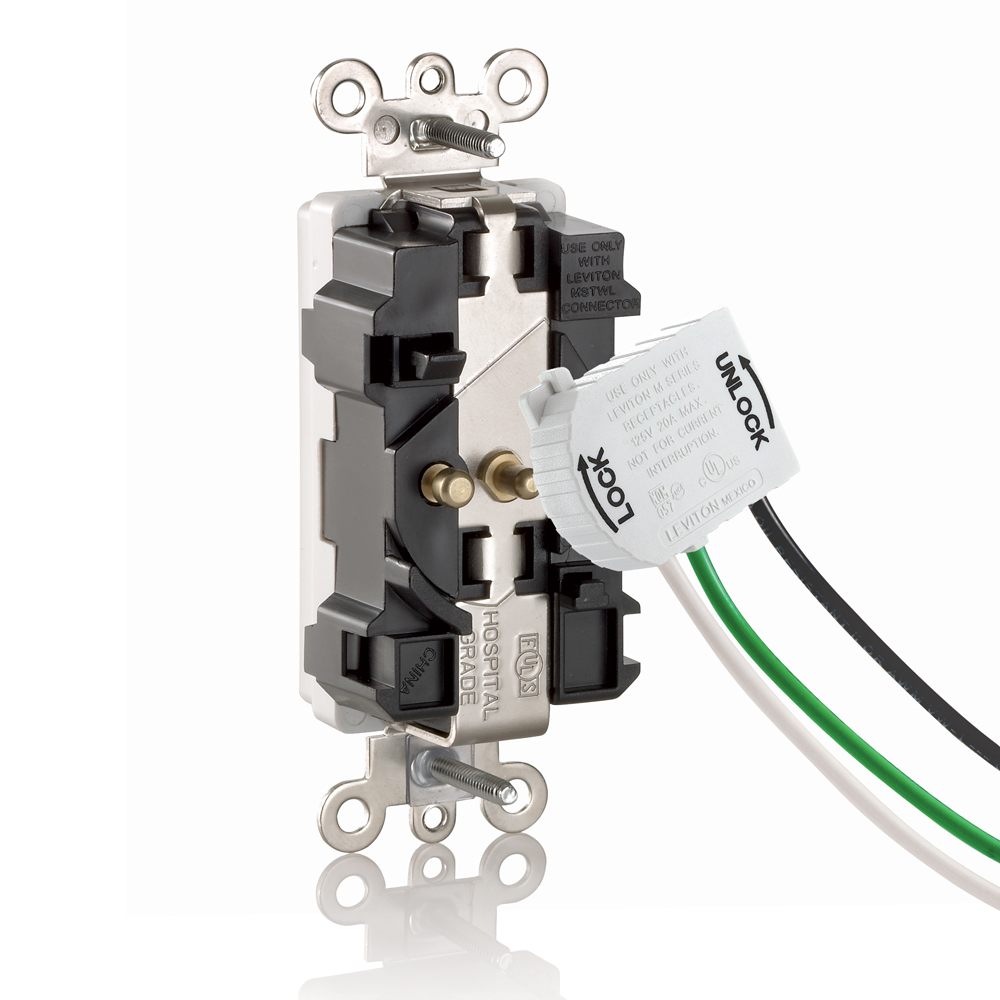

- Termination: Modular
Product Features
- Brand: Lev-Lok Decora Plus
- Color: Ivory
- Device Type: Duplex Receptacle Outlet
- Feature: Tamper-Resistant|Illuminated|Smooth Face

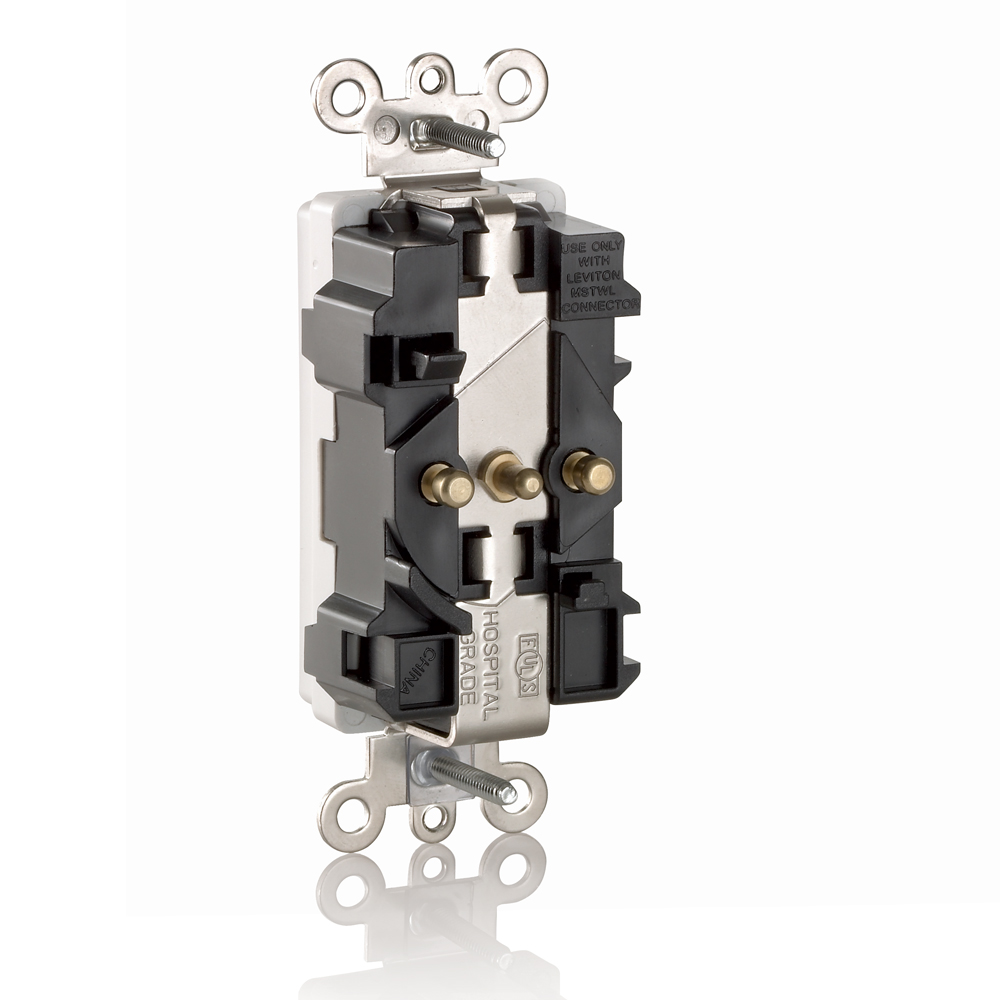

- Grade: Extra Heavy-Duty Hospital Grade
Standards and Certifications
- NEMA: WD-1 & WD-6
- ANSI: C-73
- CSA: 152105
- NOM: 057
- RoHS: Compliant
- UL 498 & Fed Spec WD496: E13399
- Warranty: 10-Year Limited
