Lev-Lok Decora Plus Receptacle

• Calculate Time & Money Saved with the Lev-Lok Savings Calculator!

Color Variations

• Black
• Blue
• Gray
• Green
• Ivory
• Light Almond
• Red
• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

Product Features

• ANSI: C-73
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
• cULus: Listed

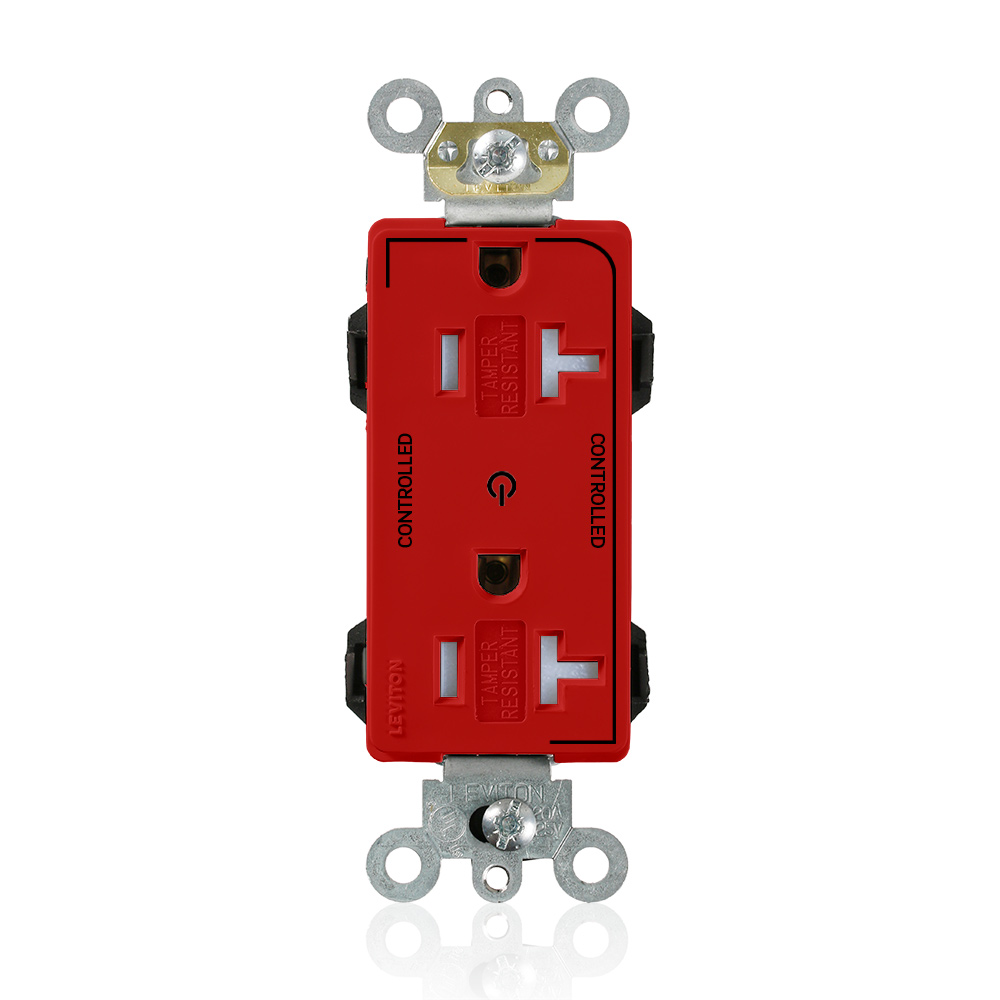

• Color: Red
• Controlled Outlets: 2
• Device Type: Decora Plus Duplex Receptacle
• Feature: Two Outlets Marked Controlled

Standards and Certifications

• CSA C22.2 No. 42: File 152105

AC Horsepower Ratings

• Horsepower Rating: 1 HP
• Base Material: Nylon
• Cover Material: Nylon
• Ground Clips: Brass
• Line Contacts: 0.040” Thick Solid Brass
• Locking Pins: Solid Brass
• Mounting Screws: Triple Combination Head, Steel
• Mounting Strap: Galvanized Steel
• Shutter Mechanism: Acetal

Electrical Specifications

• Amperage: 20 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• Bushing: Solid Brass

Mechanical Specifications

• Product ID: Ratings are permanently marked on device

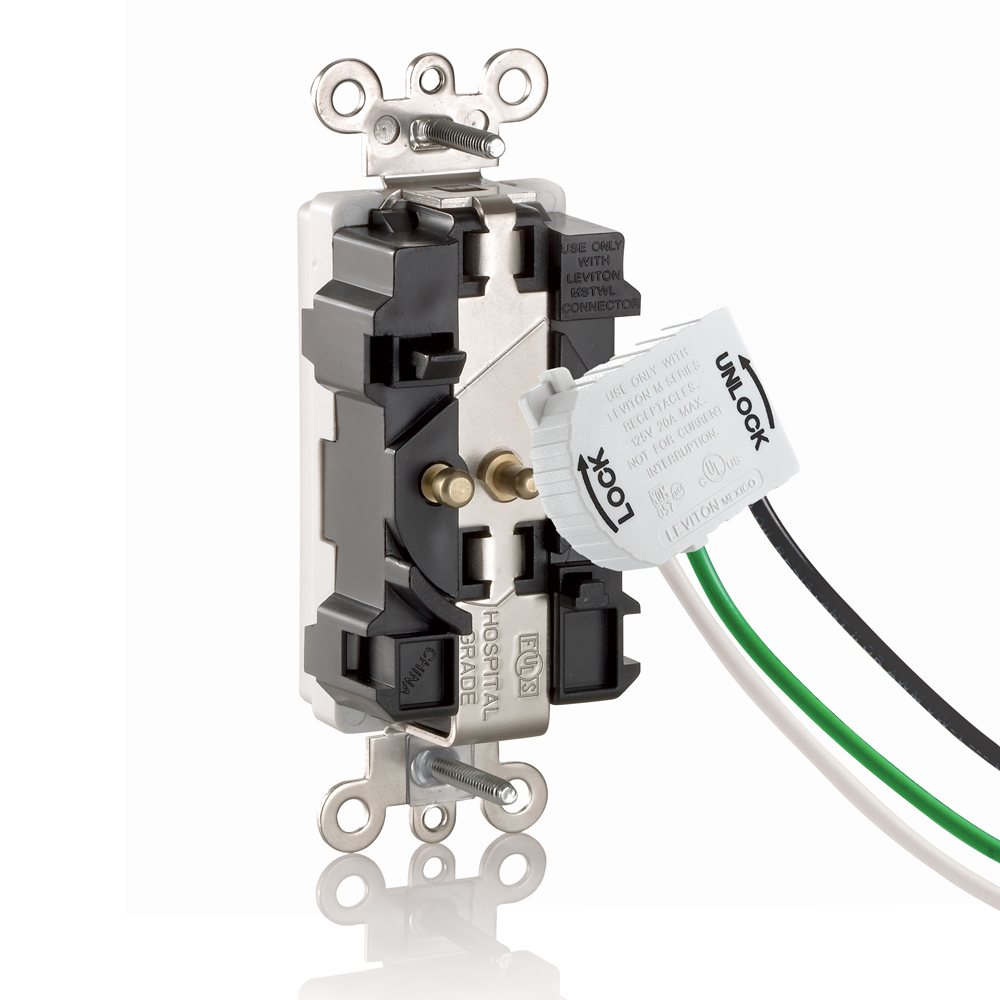

• Termination: Modular Terminals #10 - #14 AWG for controlled "hot"
