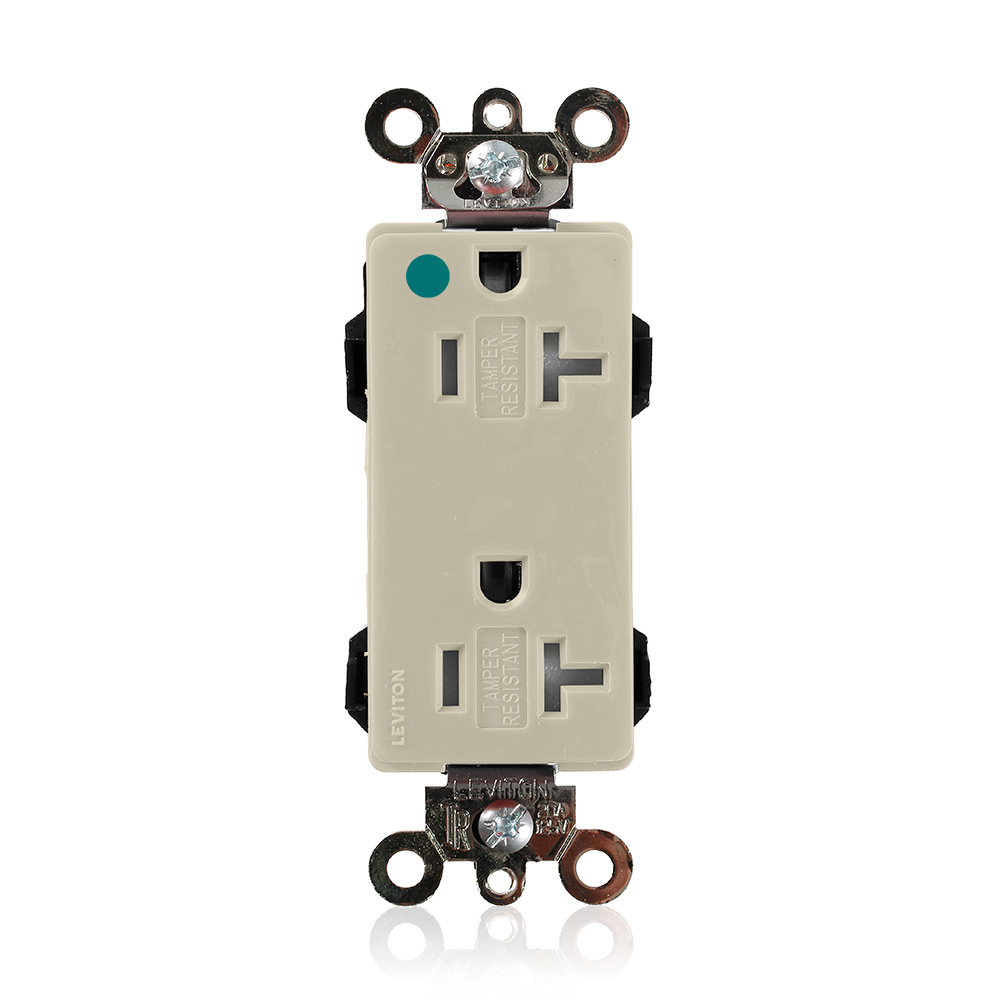

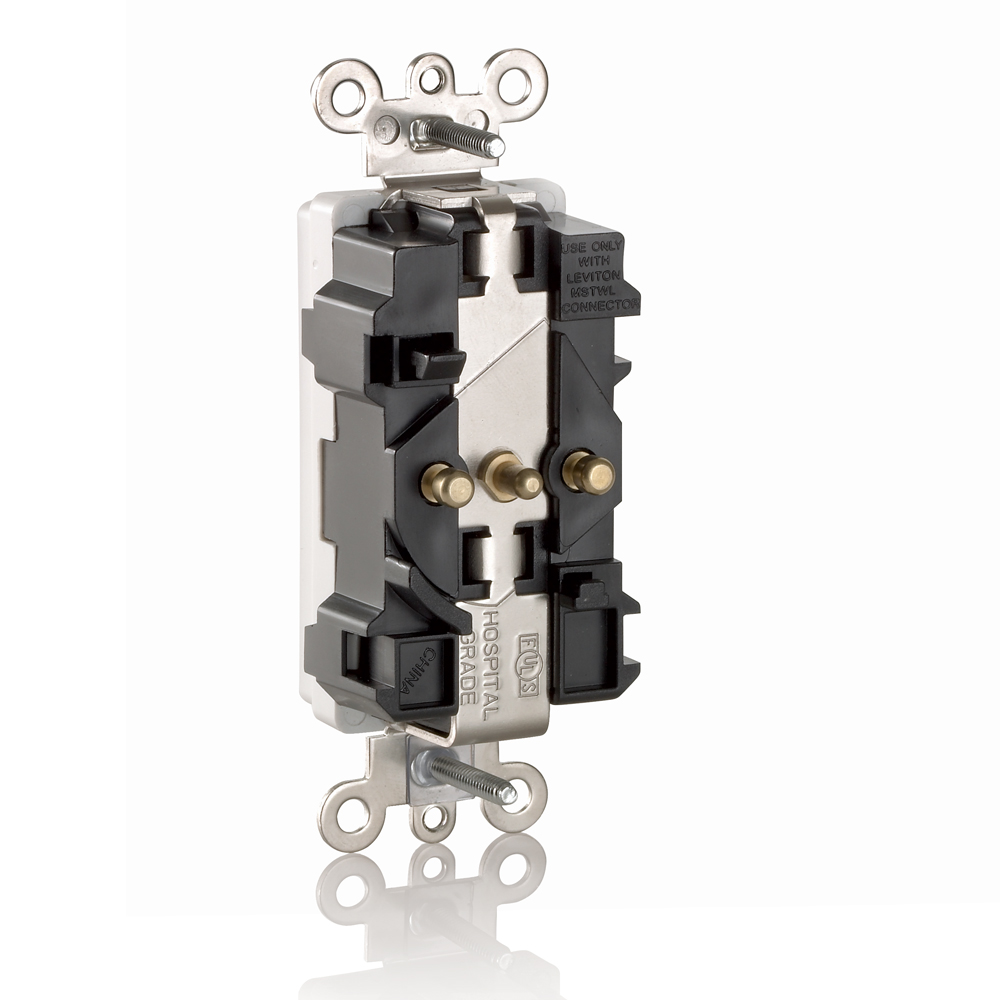

Lev-Lok Decora Plus Receptacle

NEMA

• WD-1
• WD-6

Color Variations

• Gray
• Ivory
• Light Almond
• Red
• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

AC Horsepower Ratings

• Horsepower Rating: 1 HP

Electrical Specifications

• Amperage: 20 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Maximum Working Voltage: 125V as rated
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Material Specifications

• Base Material: Nylon
• Cover Material: Nylon
• Ground Clips: Nickel-Plated Brass
• Line Contacts: 0.040” Thick Solid Brass
• Locking Pins: Solid Brass
• Mounting Screws: Triple Combination Head, Steel
• Mounting Strap: Single Piece Nickel-Plated Brass with integral ground contact
• Shutter Mechanism: Delrin® Acetal

Mechanical Specifications

• Product ID: Ratings are permanently marked on device

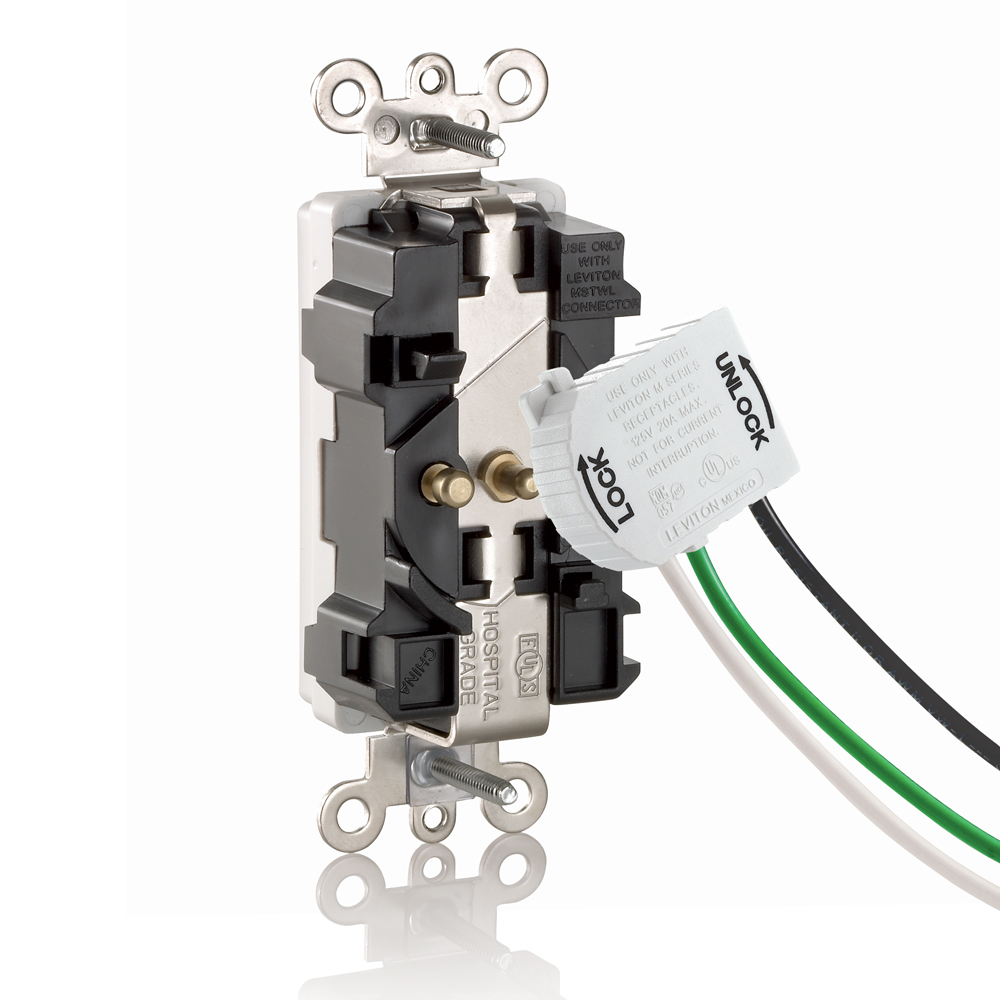

• Termination: Modular

Product Features

• Brand: Lev-Lok Decora Plus
• Color: Ivory
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant|Smooth Face
• Grade: Extra Heavy-Duty Hospital Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• NOM Certified: 057
• Warranty: 10-Year Limited
• cULus: Listed
