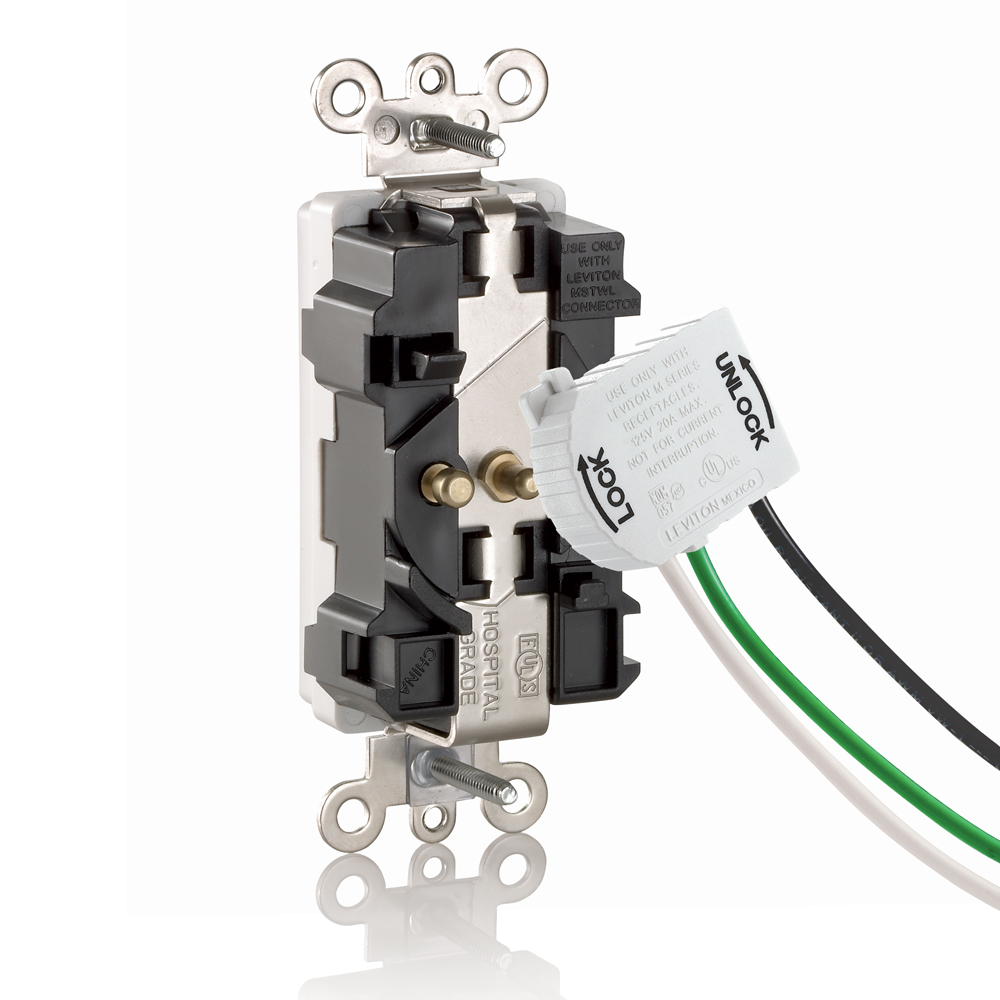

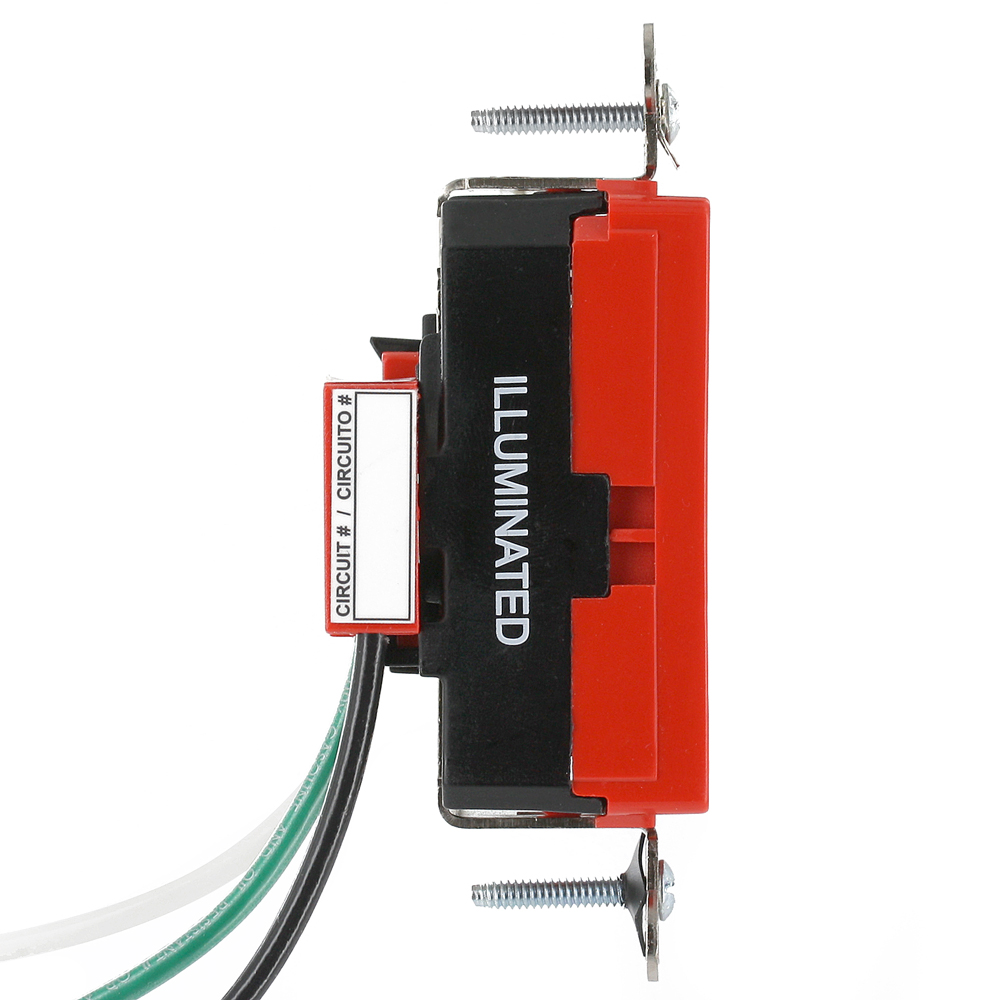

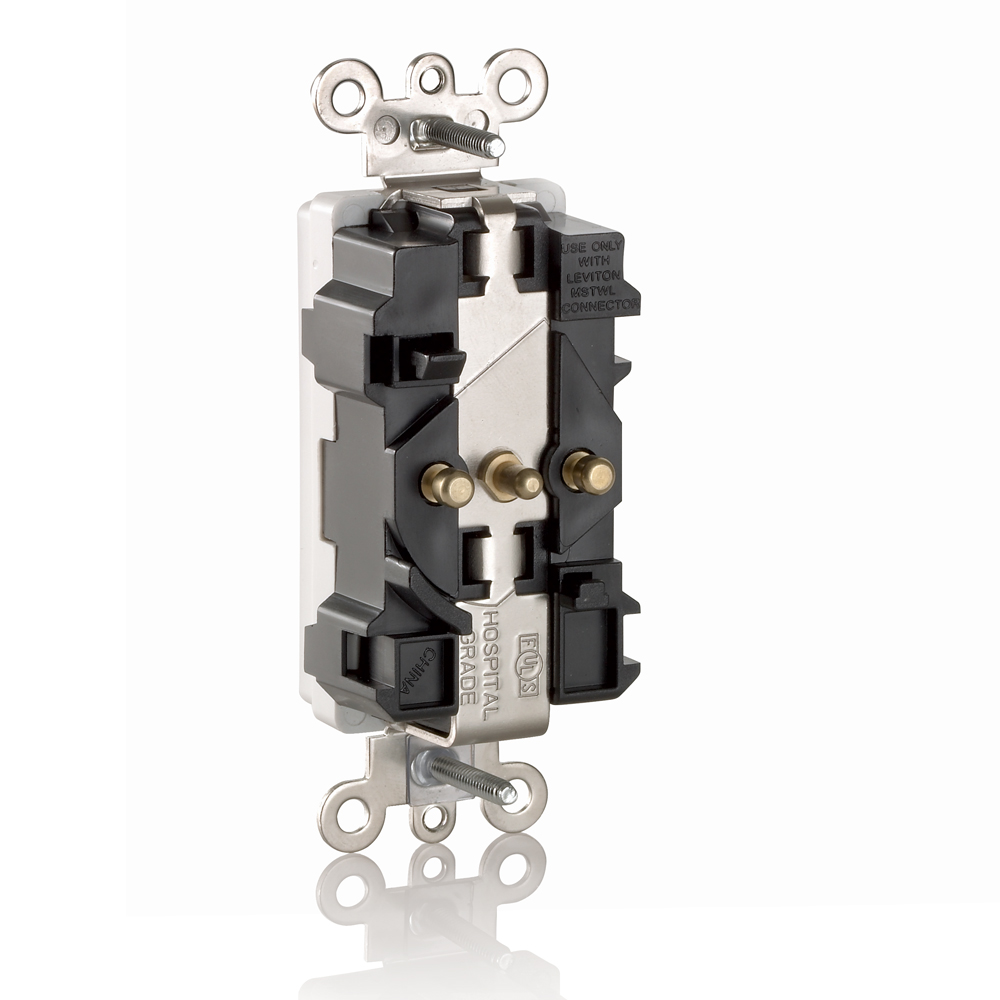

Lev-Lok Decora Plus Receptacle

Patents

• CA2762851
• MX324425
• US9112321

NEMA

• WD-1
• WD-6

Color Variations

• Gray
• Ivory
• Light Almond
• Red
• White

• Country of Origin: Mexico
• RoHS Compliant: Yes

AC Horsepower Ratings

• Horsepower Rating: 1 HP

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Illumination: 100,000 HR Green LED's
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Material Specifications

• Body Material: Nylon
• Face Material: Nylon
• Ground Clips: Nickel-Plated Brass
• Line Contacts: 0.040" Brass
• Locking Pins: Solid Brass
• Shutter Mechanism: Delrin® Acetal
• Strap Material: Nickel-Plated Brass

Mechanical Specifications

• Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
• Product ID: Markings are permanently marked on device
• Termination: Modular

Product Features

• Brand: Lev-Lok Decora Plus
• Color: Ivory
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant|Illuminated|Smooth Face
• Grade: Extra Heavy-Duty Hospital Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• CSA: 152105
• NOM: 057
• RoHS: Compliant
• UL 498 & Fed Spec WD496: E13399
• Warranty: 10-Year Limited
