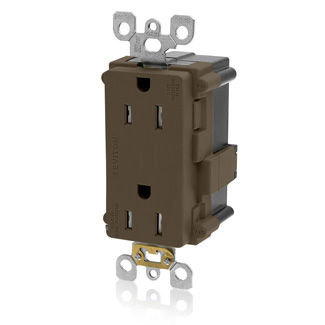

Lev-Lok Decora Plus Receptacle

NEMA

• WD-1
• WD-6

Color Variations

• Black
• Blue
• Brown
• Gray
• Ivory
• Light Almond
• White

• Country of Origin: Mexico

Electrical Specifications

• Amperage: 15 A
• Frequency: 50/60Hz
• Grounding: Self-Grounding
• Pole: 2
• Voltage: 125 VAC

Environmental Specifications

• Flammability: Rated V-0 per UL 94
• Operating Temperature: -10°C to 60°C

Material Specifications

• Body Material: Polycarbonate
• Face Material: Nylon
• Ground Clips: Brass-Plated Steel
• Line Contacts: Brass Triple-Wipe
• Locking Pins: Solid Brass
• Strap Material: Zinc-Plated Steel
• Tamper Resistant Shutter Mechanism: Derlin® Acetal

Mechanical Specifications

• Lead Identification: Leads identified in accordance with UL 498
• Product ID: Ratings are permanently marked on device

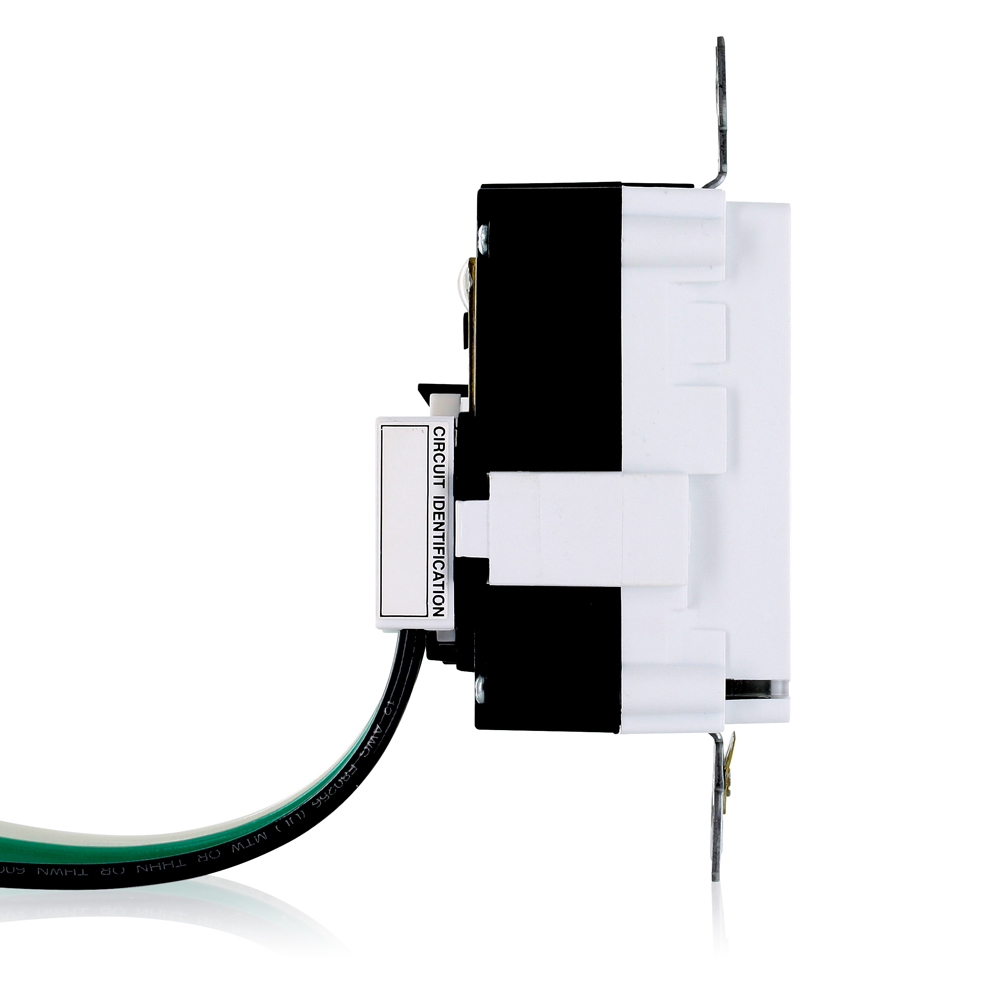

• Termination: Modular

Performance Data

• Diagnostics: Indicator Light
• Joules Rating: 720
• Max Surge Current: L-N: 18kA, L-G: 9kA, N-G: 9kA
• Noise Rejection: -30dB at 500kHz-30MHz
• SCCR: 5000A
• VPR: L-N: 600V, L-G: 700V, N-G: 600V

Product Features

• Brand: Lev-Lok Decora Plus
• Color: Brown
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant
• Function: Surge Protective
• Grade: Commercial Specification Grade

Standards and Certifications

• NEMA: WD-1 & WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File E13399
• NOM: 057
• UL 1449 3rd Edition: File E317603
• UL 498: File E13399

Warranty

• Warranty: 5-Year Limited
