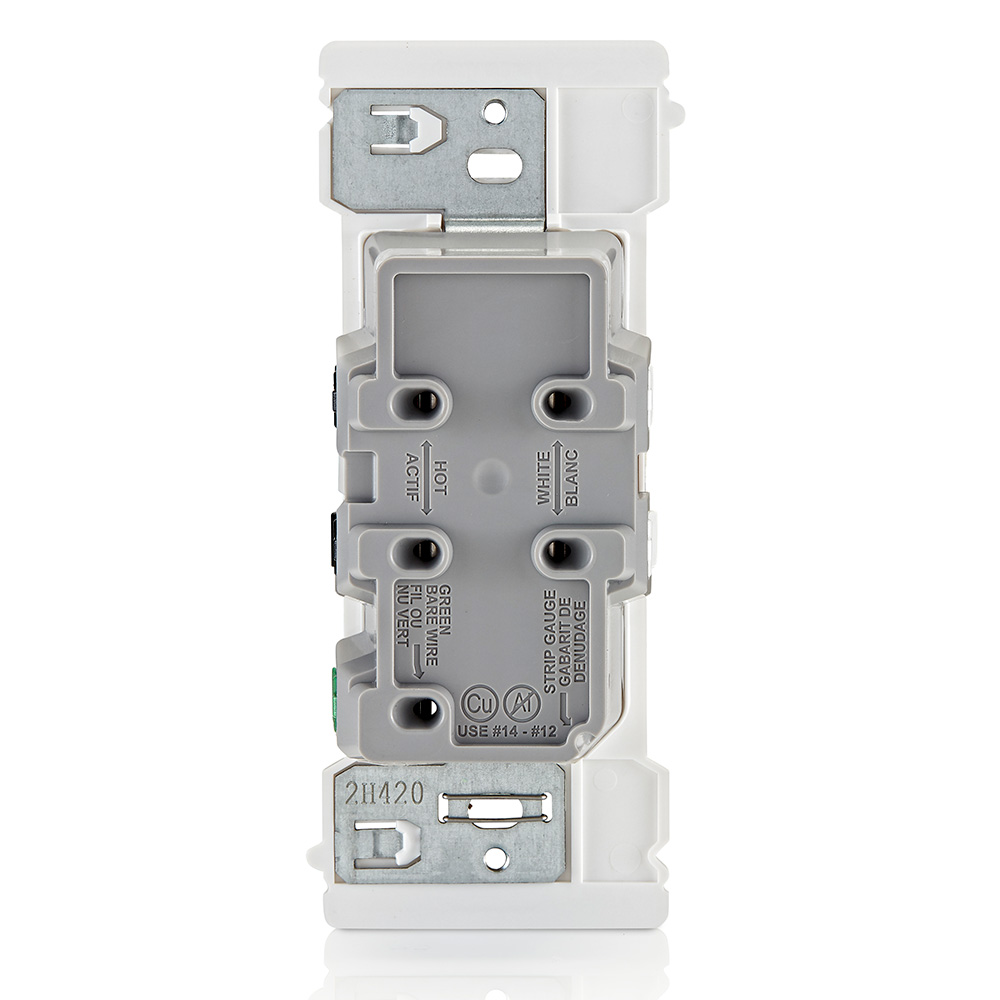

Decora Edge 15 Amp Tamper-Resistant Duplex Outlet, White

• INNOVATIVE – Patent pending color-coded lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE.
• EASIER: Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
• SAFER: No exposed metal parts for enhanced safety
• COMPATIBLE: Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate Available only in USA. Available in Canada starting in August 2023
• Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
• Patent pending color-coded lever terminals for fast, efficient wiring; reduces risk of miswiring
• Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
• Only Residential device on the market with a quick termination ground wire
• No exposed metal parts for enhanced safety; eliminates need for electrical tape
• Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
• Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
• Wire openings prevent wire insulation from being inserted into the terminals
• One standard strip gauge for all devices
• Devices coordinate seamlessly with other Decora devices
• Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
• Can be used with Decora wallplates and Decora Plus™ screwless wallplates
• Outlet allows for split circuit applications
• Outlet is Tamper-Resistant to help prevent access by most non-rated/foreign objects

Patents

• CA2621644
• CA2624409
• US7355117
• US7820909
• US8242362

• Country of Origin: China

Electrical Specifications

• Amperage: 15 A
• Grounding: Self-grounding
• Pole: 2
• Wire: 3

Product Features

• Color: White
• Device Type: Decora Duplex Receptacle

Mechanical Specifications

• Terminal Accom.: Side Lever Wire #14-#12 AWG; Stranded and Solid Copper wire only
• Terminal ID: Color Coded Lever Terminals, including Ground
• Termination: Side Lever

Standards and Certifications

• CSA: C22.2 No. 42: File 152105; Class 6233-01
• NEMA Rating: 5-15R
• NOM: NOM Certified
• UL 498: File E13399

Warranty

• Warranty: 2-Year Limited
