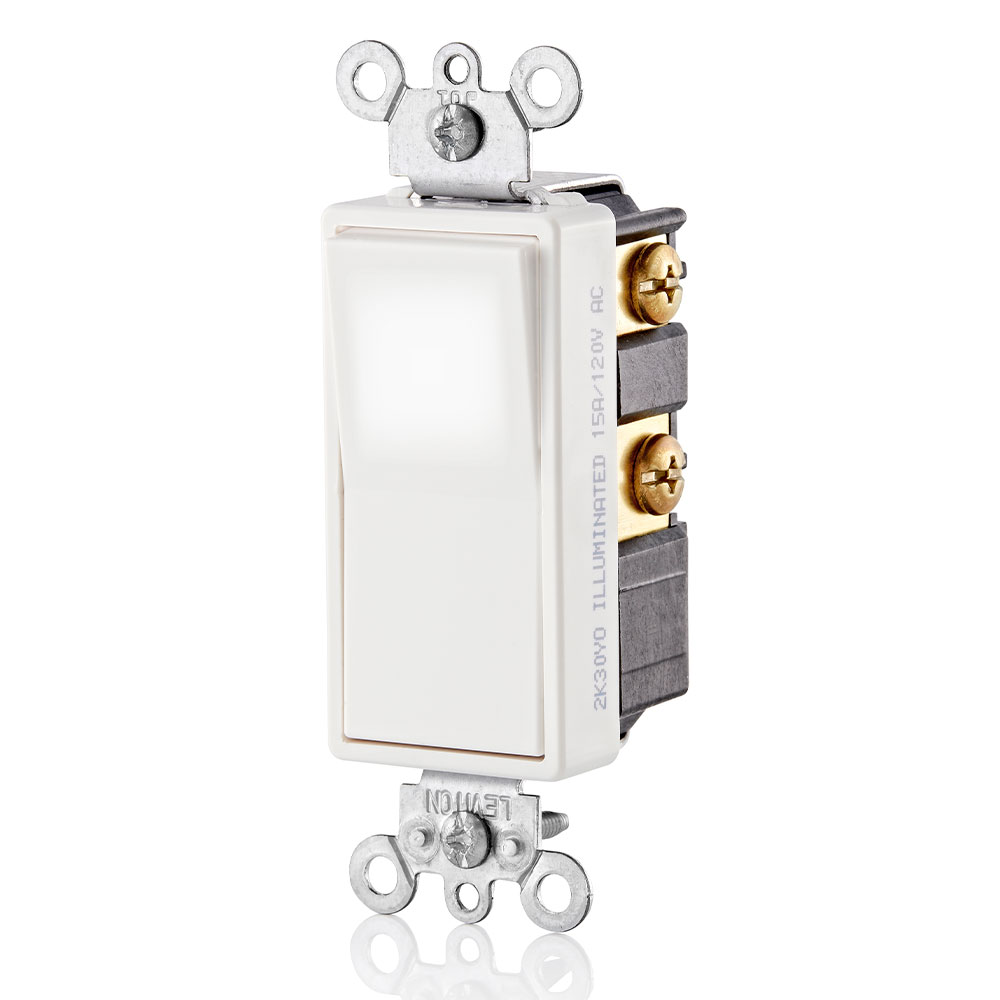

Decora LED Illuminated Rocker 4-Way Switch

• PERFORMANCE - Designed to work with LED, CFL and incandescent loads, no neutral required
• SAFE - Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
• MODERN - White LED light inside the switch provides a refreshed and modern appearance
• CONVENIENT - Replaces any standard 4-Way switch; controls light(s) from multiple locations
• Designed to work with LED, CFL and incandescent bulbs, no neutral required
• Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
• White LED light inside the switch provides a refreshed and modern appearance
• Replaces any standard switch
• Decora model compatible with Decora wallplates and Decora Plus™ screwless wallplates, wallplates sold separately
• Features Back and Side wiring for easy installation
• Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
• Complements every décor
• Ideal solution for bathrooms, bedrooms, hallways, staircases, basements, laundry/utility rooms and garages.
• Limited 2-year warranty
• CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
• NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box

Color Variations

• Ivory
• Light Almond
• White

• Country of Origin: Mexico

Product Features

• Amperage: 15 A
• Color: Ivory
• Device Type: Rocker Switch
• Feature: Illuminated
• Grade: Residential
• Grounding: Grounding
• HP Rating: 1/2HP-120V 2HP-240V-277V
• Illumination Color: White
• LED Color Temperature: 6000K
• Max. Amperage: 12 Amp
• Pole: 4
• Voltage: 120/277 VAC

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel

Mechanical Specifications

• Terminal Accom.: Side Wire #14-#12 AWG
• Termination: Side Wire & Back Wire
• Torque Range: 14 – 18 in.-lbs
• Type: LED Illuminated Switch

Standards and Certifications

• NOM: NOM
• UL Standard: cULus

Warranty

• Warranty: 2-Year Limited
