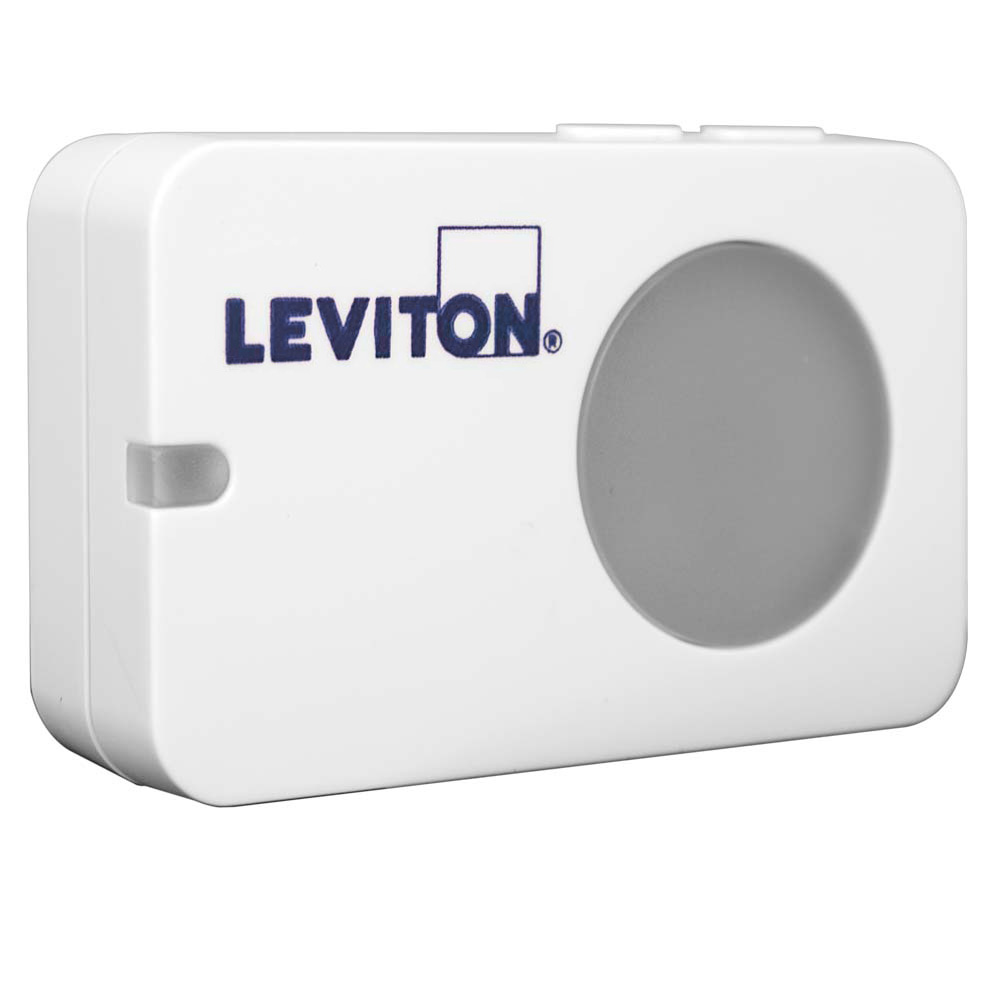

Wireless Surface Mount Photocell

• Wireless Surface Mount Daylight Harvesting Photocell. Uses Zigbee HA 1.2 Communication. Powered by a Lithium Battery. Wireless technology eliminates the need for traditional hard-wired devices, opening a world of control possibilities for restaurants, retail stores, offices and other small commercial properties. It also ensures energy savings in new construction and retrofits. Do you have any questions about photocells? Contact us to learn more.
• Photocell sensor can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 daylighting requirements
• Real time light measurement—continuous adjustment of electrical light levels to user-defined set points
• Wireless mesh network—self-healing mesh network offers robust and reliable connectivity, eliminating the need for new wiring
• Sleepy endpoint—low power, battery operated, only powers up when transmitting for energy efficient operation
• Zero external power required—with no power wire limitations, the installer can place the sensor in the optimal location of any application
• No additional wiring—battery-powered wireless technology eliminates the need to pull additional wire, making installation quick and easy and increasing labor savings with little to no impact to business during conversion
• Easy mounting—easily mount the photocell sensor to ceiling or surface using a ceiling tile stem, surface mount screws or double-sided tape
• Complies with IEEE 802.15.4 standards —for domestic and international wireless networks

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Application: Small offices|Small Office Executive|Convenience Store|Restaurant|Hospitality|Retail Stores
• Color: White
• Feature: Code Compliant Wireless Daylight Harvesting Photocell
• Grade: Commercial
• Mounting: Surface Mount
• Product Line: Wireless
• Sensor Type: Photocell

Electrical Specifications

• Battery: (2) CR2450 3V lithium batteries (included) - 6 years (normal operation)
• Frequency: 2.4 GHz
• Power Supply: (2) CR2450 3V lithium batteries (included). Battery life 6 years (normal operation)
• Voltage Type: Low Voltage

Performance Specifications

• Foot Candle Level: 0.09-278.70FC (1-3,000 LUX)

Standards and Certifications

• Listings: FCC certified for wireless communication (U.S.), IC Certified (Canada), US: FCC Part 15B

Mechanical Specifications

• Mounting Type: Surface Mount
• Size: Height 2.24" (57mm) x Width 1.37" (35mm) x Depth .59" (15mm)

Type

• Product Type: Wireless Daylight Harvesting Indoor Photocell

Warranty

• Warranty: 2-Year Limited
